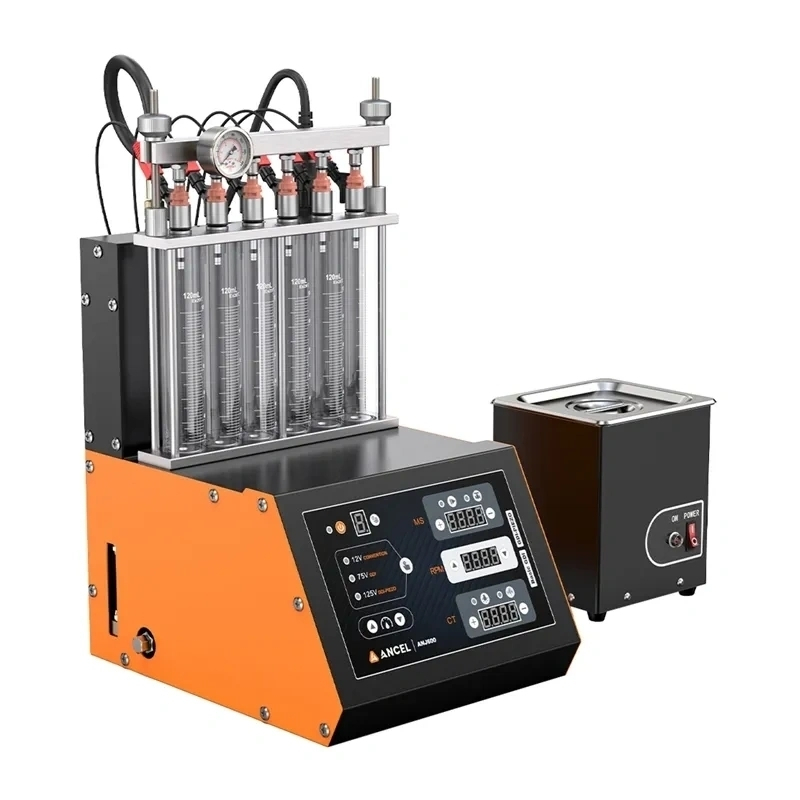

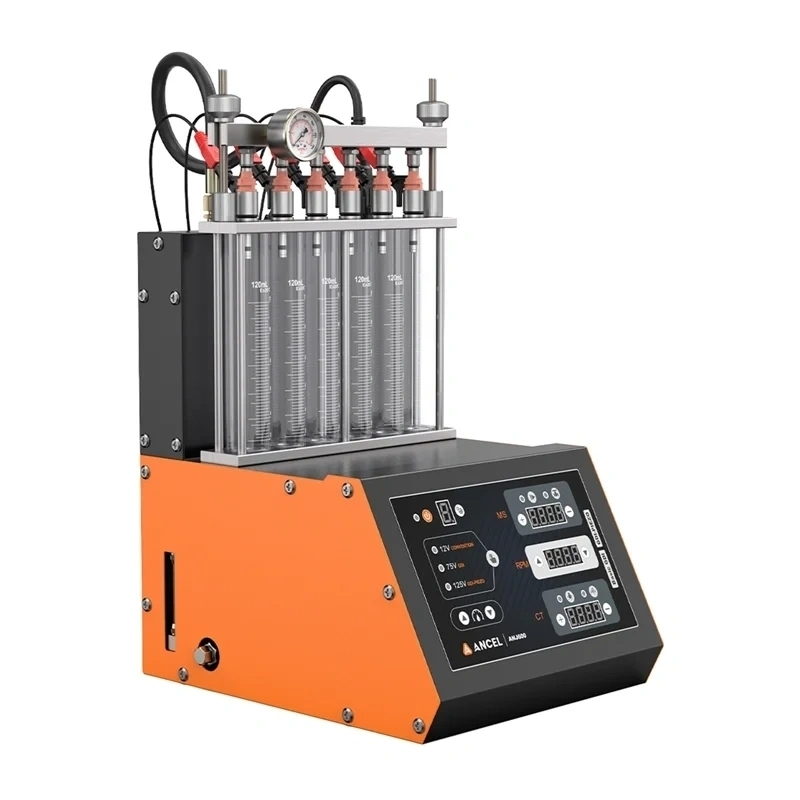

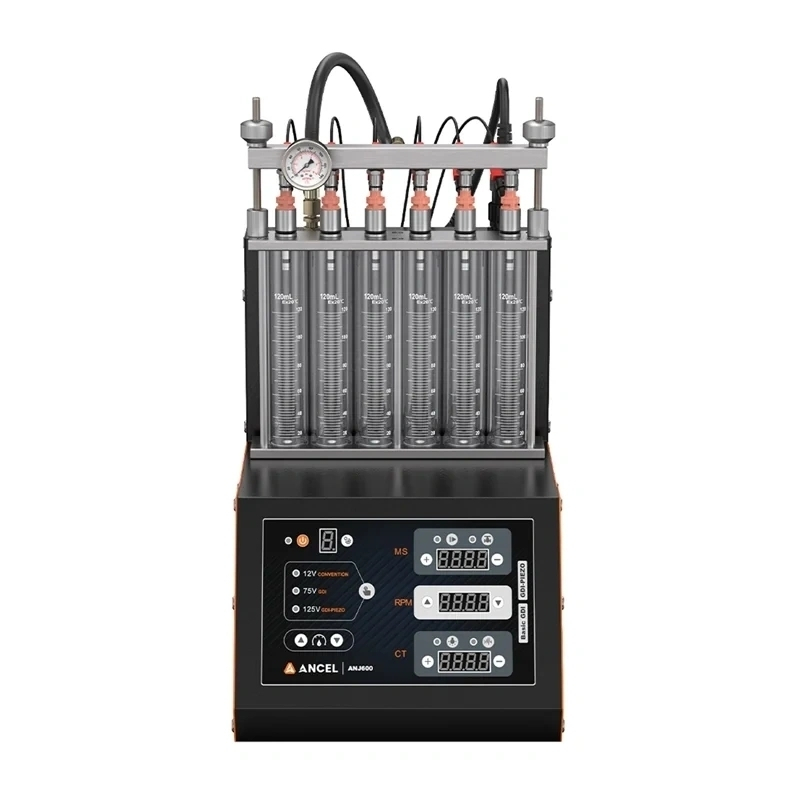

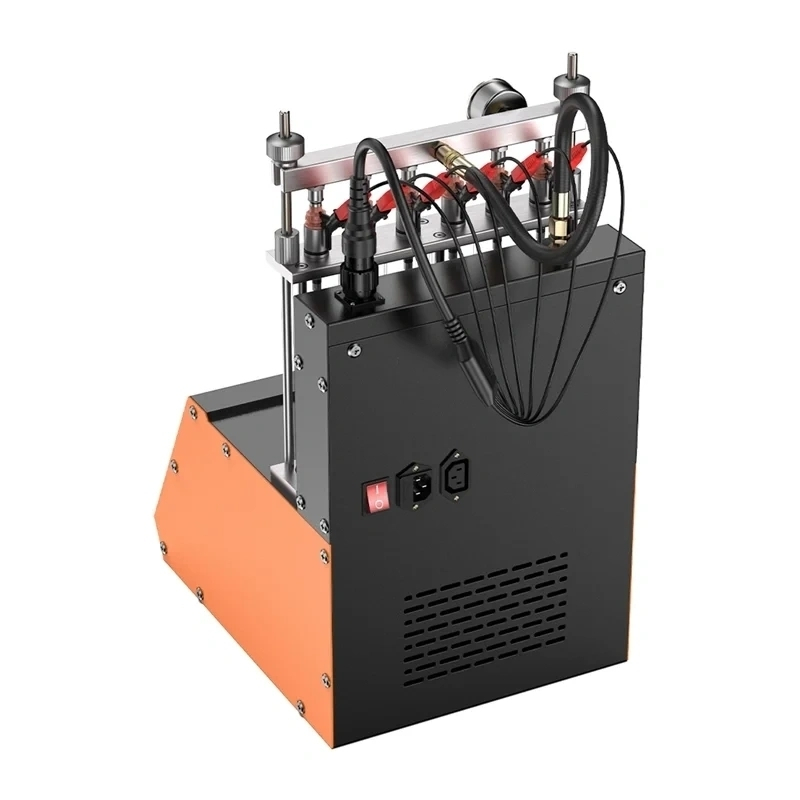

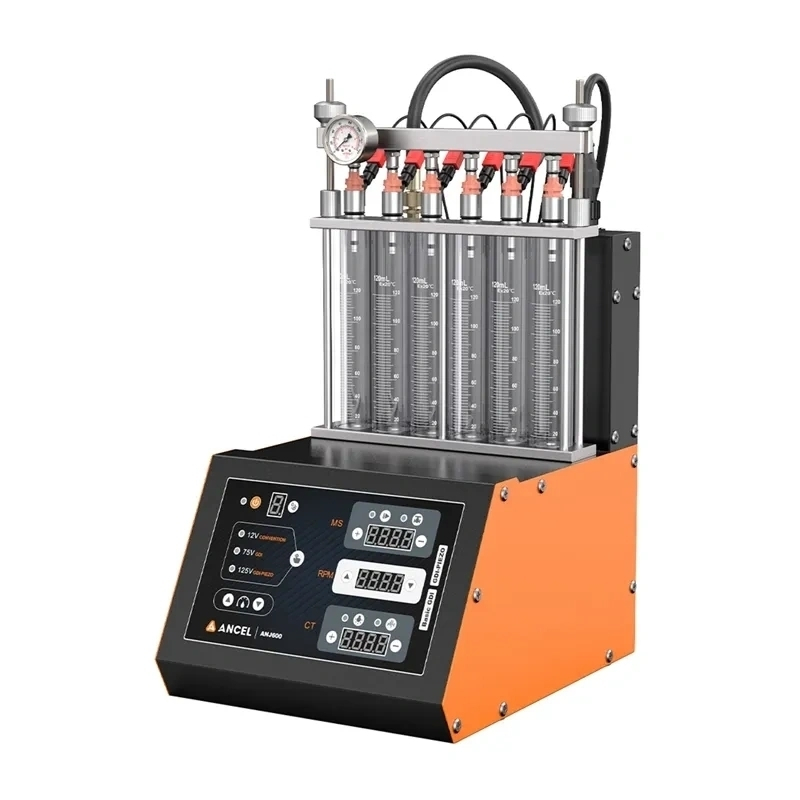

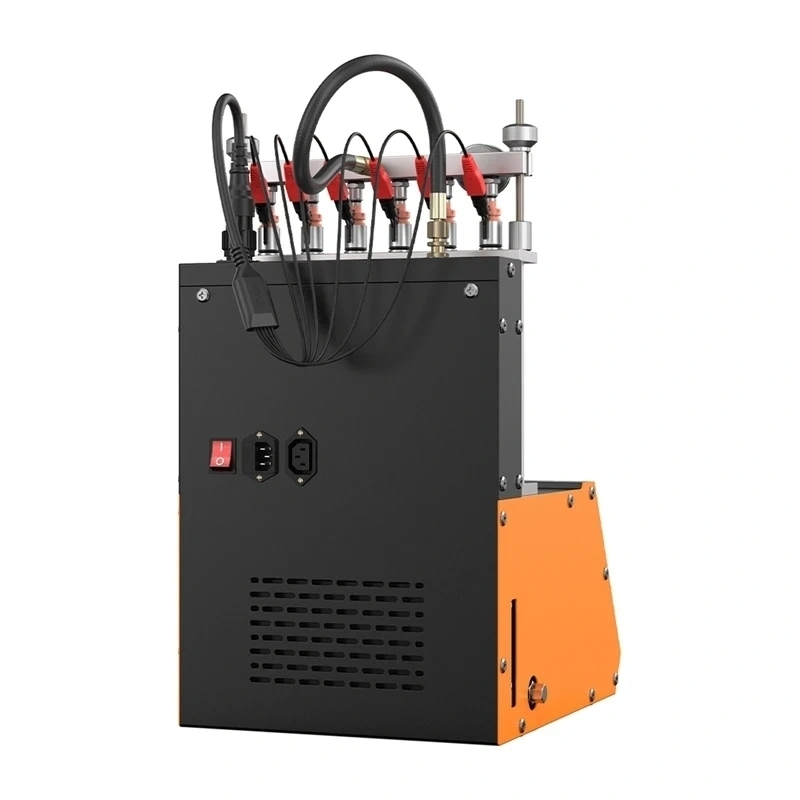

ANCEL ANJ600 Επαγγελματικός Καθαριστής και Δοκιμαστής Μπεκ Ψεκασμού 6-Μπεκ

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  ANCEL
• Model
  ANJ600
• Product Type
  6-injector Ultrasonic Cleaner and Tester
• Supported Injector Types
  EFI, GDI and Piezo injectors
• Ultrasonic Power
  100 W
• Ultrasonic Frequency
  38–39 kHz
• System Input Power
  Approx. 230 W
• Power Supply
  AC 220 V ±10% 50/60 Hz or AC 110 V ±10% 60 Hz
• Pressure Range
  0–8 bar
• Engine Simulation RPM
  Up to 9,900 RPM
• Pulse Width Range
  Up to 30 ms
• Number of Test Channels
  Up to 6 injectors simultaneously
• Display
  Digital screen for parameter control and readout
• Included Accessories
  R1/4 adapters x5, adjustment screws x2, drain valve x1, fuel hose x1, fuel funnel x1, sealing gaskets x10, power cord x1, user manual x1, various connectors
• Functions
  Ultrasonic cleaning, electronic pulse testing, flow/return measurement, leak and spray pattern inspection
• Use Case
  Professional workshop injector cleaning, testing and calibration
• Mounting / Tank
  Built-in ultrasonic cleaning tank with fixtures for up to 6 injectors
• Material (main unit)
  Metal housing with internal ultrasonic transducer and pump (typical workshop-grade materials)
• Safety Features
  Standard electrical protections and drain/venting provisions
• Dimensions (estimated package)
  50 x 40 x 30 cm (L x W x H)
• Package Weight (estimated)
  7000 g
