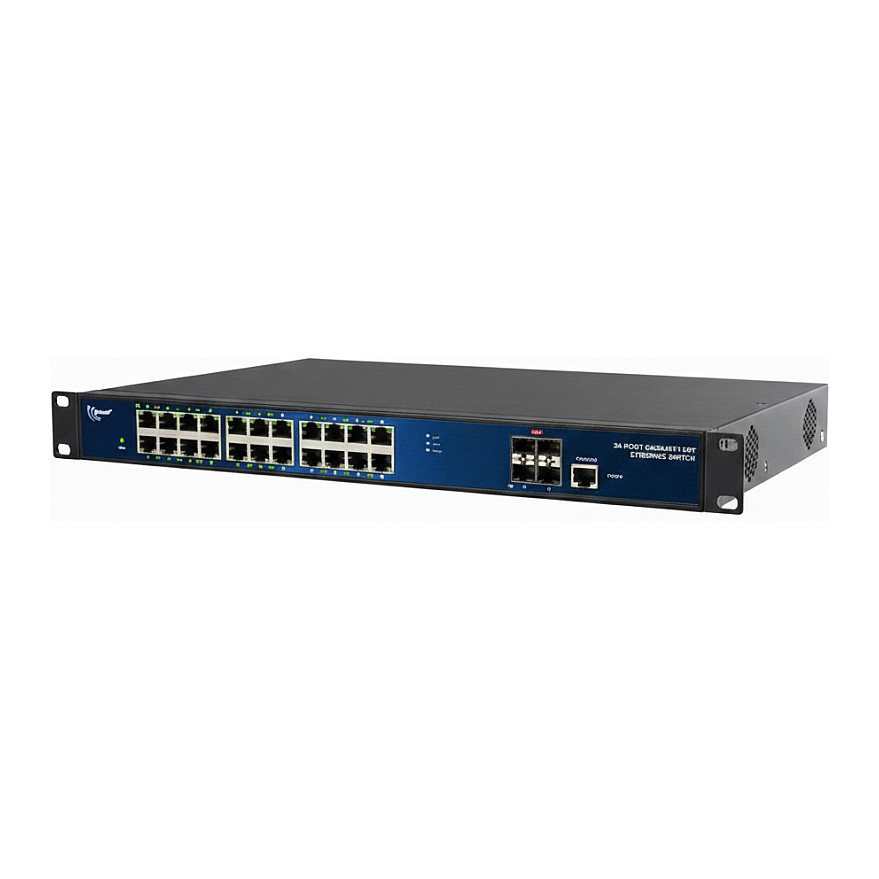

Allnet Switch πλήρως διαχειριζόμενο Layer2+ 24 θυρών • 24x GbE • PoE Budget 370W • 24x PoE-at • 4x SFP+ • 19" • JSON API • ALL-SG8628PMJ-10G

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  ALLNET
• Model / MPN
  ALL-SG8628PMJ-10G
• SKU
  21187687
• EAN
  4038816129703
• Product type
  Full managed Layer 2+ switch (rackmount)
• Ports
  24x 10/100/1000BASE-T RJ45 copper ports
• Uplink ports
  4x 10G SFP+ slots
• PoE capable ports
  Ports 1–24 support PoE
• PoE standards
  IEEE 802.3af (PoE) and IEEE 802.3at (PoE+)
• PoE budget
  max. 370 W total
• PoE per port
  max. 15.4 W (802.3af) / max. 30 W (802.3at)
• Console port
  1 x RS-232 (RJ-45 console)
• Management interfaces
  Web GUI, CLI (console/SSH), SNMP, JSON API
• Layer
  Layer 2+ (supports L2 switching features with advanced functions)
• VLAN support
  802.1Q VLANs, Q-in-Q
• Resiliency / Ring
  G.8032 ERPS (sub-20 ms recovery)
• Spanning Tree
  STP/RSTP/MSTP supported
• Link aggregation
  Port aggregation (LACP)
• QoS
  Traffic prioritization, bandwidth control
• Multicast
  IGMP snooping, MLD snooping
• Timing
  1588 v2.0 transparent clock support
• Diagnostics
  SFP DDM, cable diagnostics
• Protection
  4 kV surge protection; 6 kV contact / 8 kV air ESD protection
• MTBF
  ~50,000 hours
• Power input
  100–240 V AC, 50/60 Hz, up to 4 A
• Physical
  19" rack-mountable chassis (metal)
• Weight
  ~4.3 kg
• Warranty
  24 months
• Use cases
  IP cameras, wireless access points, VoIP endpoints, professional PoE deployments
