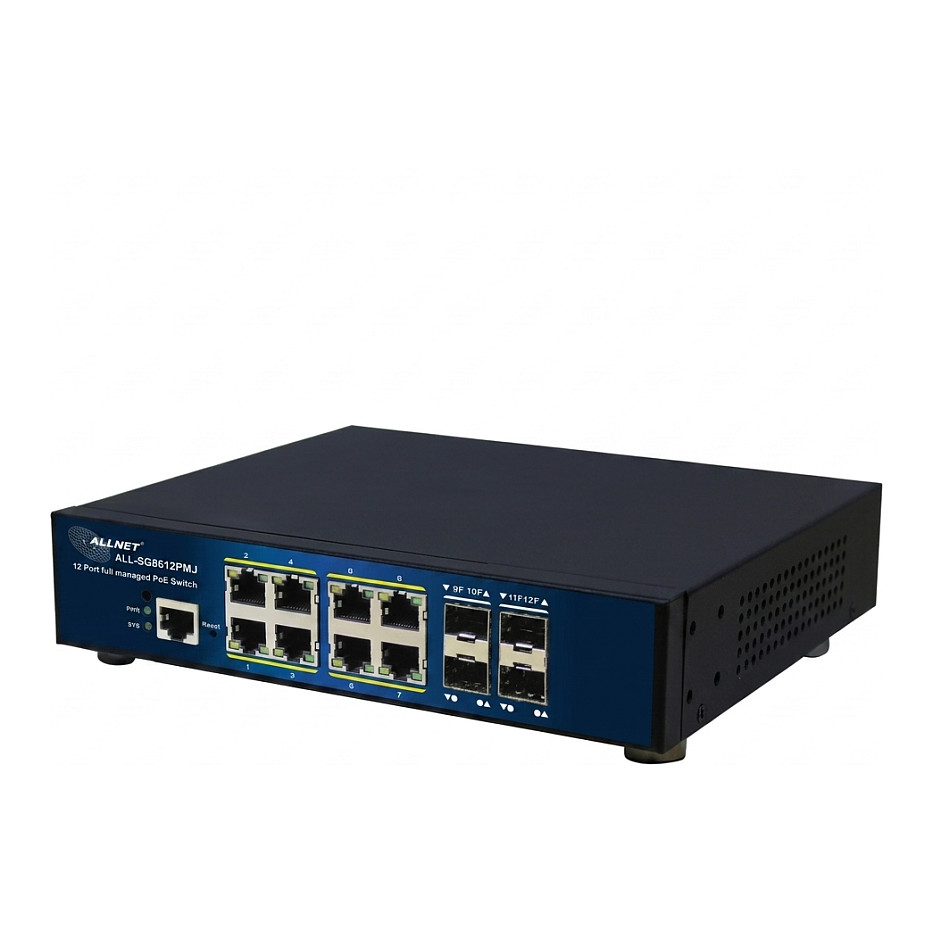

Allnet πλήρως διαχειριζόμενος Layer2+ Switch 12 θυρών • 8x GbE PoE (300W) • 4x SFP • Fanless • JSON API • ALL-SG8612PMJ

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  ALLNET
• Model
  ALL-SG8612PMJ
• Product Type
  Full Managed Layer2+ Gigabit PoE Switch
• Ports (RJ45)
  8 x 10/100/1000BASE-T (ports 1-8 PoE/PoE+)
• Ports (SFP)
  4 x 100/1000BASE-X SFP
• Console Port
  1 x RS-232 (RJ45 console)
• PoE Standard
  IEEE 802.3af (PoE) & IEEE 802.3at (PoE+)
• Max PoE per Port
  30W
• Total PoE Budget
  300W
• Switch Fabric
  36 Gbps (non-blocking)
• Throughput
  ~26.78 Mpps @64 bytes
• Jumbo Frame
  Up to 9216 Bytes
• Memory (SDRAM)
  1 GB
• Data Buffer
  4 MB
• MAC Address Table
  8K entries
• VLAN
  802.1Q (port-based & tag-based)
• Security Features
  ACLs, IP Source Guard, ARP Inspection, Port Isolation
• Multicast
  IGMP Snooping v1/v2/v3
• Redundancy
  G.8032 ERPS (<20ms), STP (802.1D), RSTP (802.1w), MSTP (802.1s)
• Timing
  IEEE 1588 v2 (PTP) with Transparent Clock support
• Management
  Web GUI, CLI, Telnet, SSH, SNMP v1/v2c/v3, JSON API
• Diagnostics
  Cable diagnostics, SFP DDM
• Physical
  Fanless metal housing, DIN/10" & 19" mounting, desktop/wall mount
• Operating Temperature
  -40 °C to +75 °C
• Power Input
  100–240V AC, 50/60Hz, up to 4A
• Max Power Consumption
  ~300W
• Mounting Options
  Desktop, Wall, 10" & 19" rack/DIN rail
• Warranty
  24 months
• Certifications/Standards
  IEEE 802.3, 802.1Q, 802.1D/w/s, G.8032, IEEE 1588 v2
