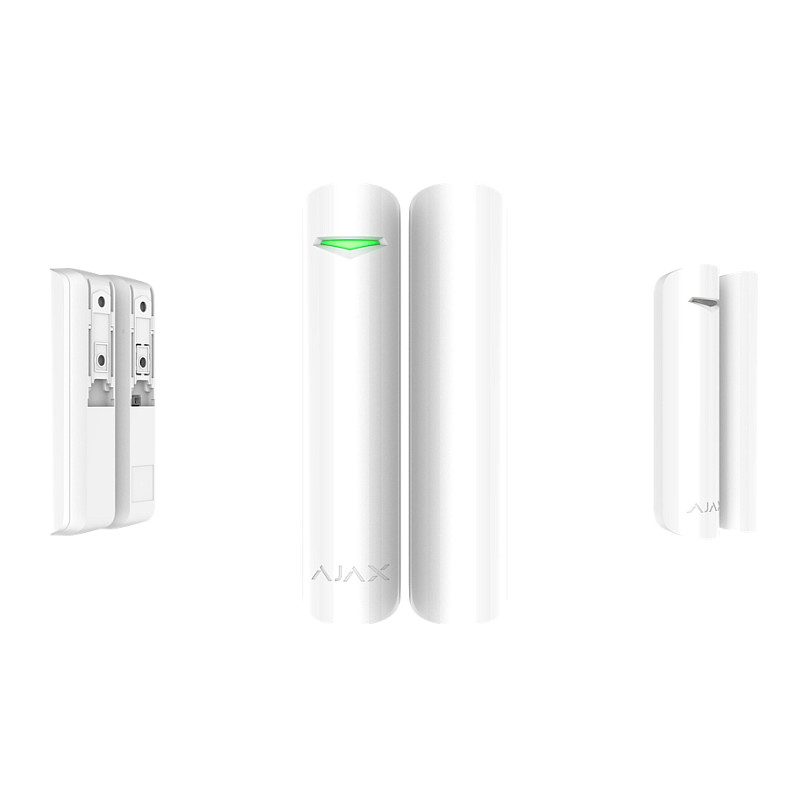

Ajax DoorProtect Plus (λευκό)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Product Type
  Wireless opening, shock and tilt detector
• Model
  DoorProtect Plus
• SKU
  21196596
• MPN
  38101.13.WH1
• EAN / Barcode
  4823114014918
• Brand / Manufacturer
  AJAX Systems
• Color
  White
• Product Weight
  87 g
• Package Weight
  ~120 g (estimated)
• Dimensions (sensor)
  Ø 20 × 90 mm (20 mm × 90 mm)
• Housing Material
  ABS plastic (white)
• Communication Protocol
  Ajax Jeweller
• Operating Frequency
  868.0–868.6 MHz (region dependent)
• Encryption
  AES-128
• Modulation
  GFSK
• Radio Signal Power
  20 mW
• Radio Range (open space)
  Up to 1,200 m (line of sight)
• Power Supply
  1 × CR123A battery (3 V), preinstalled
• Battery Life
  Up to 5 years (typical)
• Sensors
  Reed switch (opening), accelerometer (shock and tilt)
• Detection Types
  Opening detection, shock/vibration detection, tilt detection
• Shock Sensitivity
  3 adjustable sensitivity levels
• Tilt Detection Threshold
  Tilt angle change >5°
• Tilt Alarm Delay
  Adjustable: 1 second to 1 minute
• Anti-False Alarm Features
  Single impact ignore option, chattering protection
• Mounting Options
  Perpendicular or parallel mounting; horizontal or vertical
• Magnets Included
  Two permanent magnets (small: ~1 cm gap; large: ~2 cm gap) for different mounting setups
• Wired Input
  Socket for 3rd-party NC (Normally Closed) wired detector (e.g., safe sensor)
• Compatibility
  Ajax Hubs (Hub 2 and later), range extenders
• Operating Temperature
  -10°C to +40°C
• Operating Humidity
  Up to 75% (sources vary up to 80%)
• Certifications / Grade
  Security Grade 2; EN 50131/PD 6662 (manufacturer listed certifications)
• Chime Feature
  Yes — short sound when system is disarmed (multiple sound options)
• Integration Limitations
  Not compatible with uartBridge / ocBridge Plus for third-party integration
