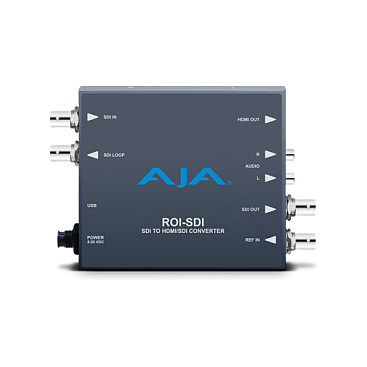

AJA ROI-SDI 3G‑SDI σε 3G‑SDI/HDMI μετατροπέας σάρωσης (ROI)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  AJA
• Model
  ROI-SDI (MPN: ROI-SDI-R0)
• Product Type
  3G-SDI to 3G-SDI/HDMI ROI scan converter / mini converter
• Input(s)
  1 × 3G-SDI BNC input
• Loop-through
  3G-SDI loop-through (BNC) for inline monitoring
• Outputs
  1 × 3G-SDI BNC output (mirrored), 1 × HDMI Type A output (mirrored)
• Supported Formats
  1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; 1080i: 25, 29.97, 30; 720p: 50, 59.94, 60; 625i/525i SD
• Reference Input
  Yes (reference/house sync input supported)
• ROI Features
  Region of Interest extraction, image scaling, repositioning/reframing, rotation, aspect ratio conversion
• Audio (embedded)
  Accepts up to 8-channel embedded audio from SDI input; audio routing configurable
• Audio (analog)
  Stereo RCA analog audio output for monitoring / de‑embedded audio
• Control Interface
  USB configuration via AJA Mini-Config software
• Power Input
  5–18 VDC universal power supply (locking connector); international plug options included
• Power Consumption
  Approximately 8 W max (listed by distributors)
• Dimensions
  146.43 × 102.11 × 22.86 mm
• Weight
  Approximately 220 g (device only)
• Form Factor
  Compact, portable mini converter (suitable behind monitor or on rig)
• Materials
  Anodized aluminum case with metal chassis (typical AJA mini converter construction)
• Warranty
  5-year limited warranty (as listed by several distributors)
• Included Accessories
  Universal AC power supply (5–18 VDC), locking power cable, USB cable for configuration (typical package contents)
• Typical Use Cases
  Broadcast & production ROI extraction, HDMI monitoring with SDI workflows, scaling and format/frame-rate adaptation
• Software/Firmware
  Configurable via AJA Mini-Config; firmware updatable via USB
• Certifications
  RoHS and typical broadcast device safety/compliance (vendor listing)
