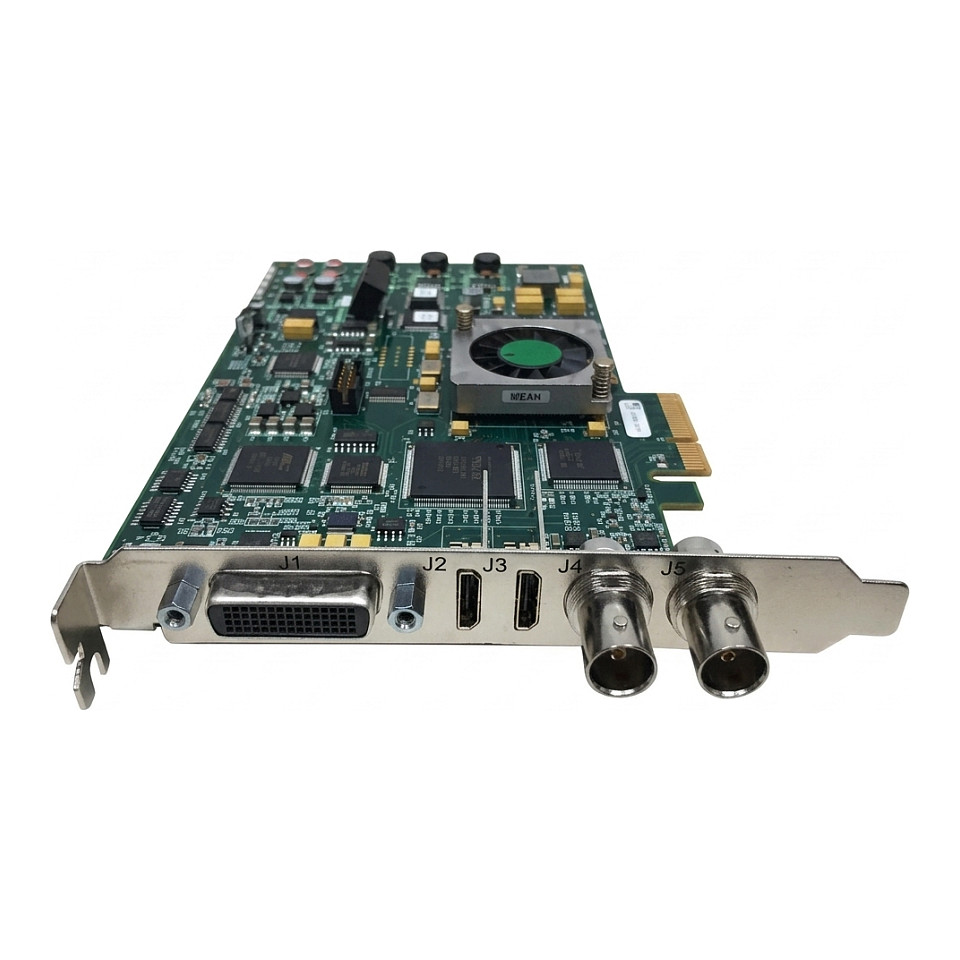

AJA KONA LHi PCIe κάρτα εισόδου/εξόδου βίντεο

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  AJA
• Model
  KONA LHi
• MPN
  KONA-LHI-R0
• SKU
  21169501
• EAN / Barcode
  0812321030068
• Product Type
  PCIe Video I/O capture and playback card
• Host Interface
  PCI Express x4
• Maximum Resolution
  2048 × 1080 (2K) up to 30p (23.98/24/25) and broader 2K/HD/SD up to 50/60p as supported
• Digital Video I/O
  3G-SDI (SMPTE 425), 1.5G-SDI (SMPTE 292M), 270 Mbps SDI (SMPTE 259M-C), HDMI v1.3
• Analog Video I/O
  HD component (YPbPr/RGB), SD component (YPbPr/RGB), Betacam support, SMPTE/EBU N10
• Analog A/D
  12-bit A/D with 8x oversampling
• Video Depth
  10-bit or 8-bit uncompressed video; HDMI up to 30 bits/pixel (RGB/YUV)
• Audio I/O
  8-channel embedded SDI audio, 8-channel embedded HDMI audio, 2-channel AES/EBU digital audio, 2-channel balanced analog audio I/O
• Sync & Control
  Reference input available via breakout; RS-422 control via supplied breakout cable or optional breakout box (KLHi-BOX)
• Conversion
  Hardware-based up-conversion, down-conversion and cross-conversion between SD and HD formats
• OS Compatibility
  macOS, Windows, Linux (drivers from AJA)
• Power Consumption
  Typical 13 W, Maximum 15 W
• Included Accessories
  Breakout cable
• Optional Accessories
  KLHi-BOX breakout box (expands LTC, reference, RS-422)
• Package Dimensions (approx)
  33.5 × 24.4 × 8.1 cm
• Package Weight (approx)
  1293 g
• Card Use Cases
  Professional editing, monitoring, mastering, ingest/output, bridging legacy analog devices with SDI/HDMI workflows
• Physical Notes
  Low-profile PCIe card (includes standard bracket), ships with breakout cable
