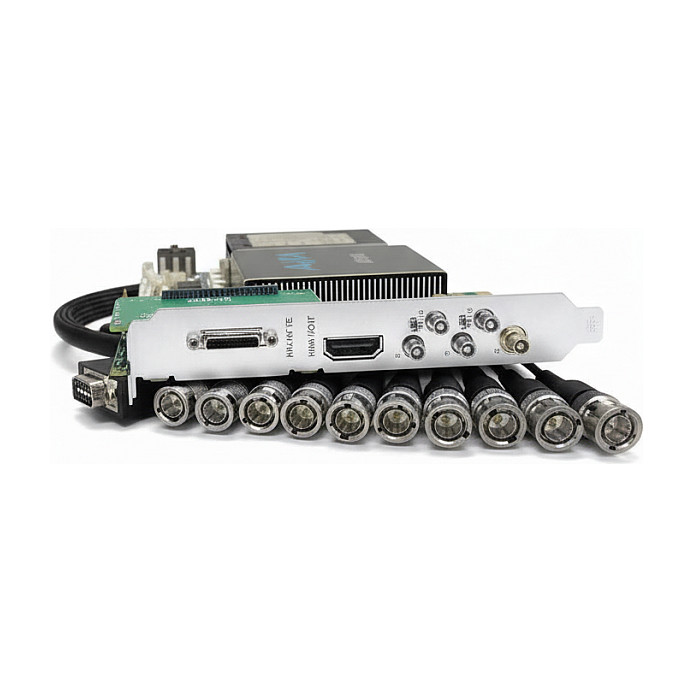

AJA KONA 5 - Προσαρμογέας Καταγραφής/Αναπαραγωγής Βίντεο PCIe 3.0 (KONA-5-R0)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  AJA
• Model
  KONA 5
• MPN
  KONA-5-R0
• EAN / Barcode
  0812321031676
• SKU
  21169468
• Interface
  8-lane PCIe 3.0 (PCIe 3.0 x8)
• Video I/O
  4 bidirectional 12G-SDI HD‑BNC connectors (supports 12G/6G/3G/1.5G/270 Mbps)
• HDMI
  Full‑size HDMI 2.0 output
• Audio I/O
  16-channel embedded SDI, 8-channel AES/EBU, 8-channel embedded HDMI
• Reference Input
  Analog black burst or tri‑level reference input
• Control
  RS‑422 on 9‑pin connector
• Power
  28 W typical, 35 W maximum; PC internal ATX power connector (Molex p/n 45559-0002)
• Color Support
  10-bit 4:2:2, 4:4:4 and 12-bit (application dependent)
• HDR Support
  HDR10 and HLG (Hybrid Log Gamma)
• Supported Formats
  8K/UltraHD2, 4K/UltraHD, 2K/Dual Link, HD, SD (frame rates up to 50/60 fps depending on format)
• SDI Standards
  SMPTE‑2082 (12G), SMPTE‑2081 (6G), SMPTE‑425 (3G), SMPTE‑292M (1.5G), SMPTE‑259M‑C (270 Mbps SD)
• HDMI Spec
  HDMI v2.0 (up to 36 bits per pixel, RGB or YUV)
• Firmware
  Supports multiple firmware versions
• OS Compatibility
  macOS, Windows, Linux
• Physical
  Standard PCIe full‑height card (requires available PCIe x8/x16 slot)
• Typical Use Cases
  High-resolution capture/playout, HDR monitoring, multi‑channel ingest, live production and streaming
