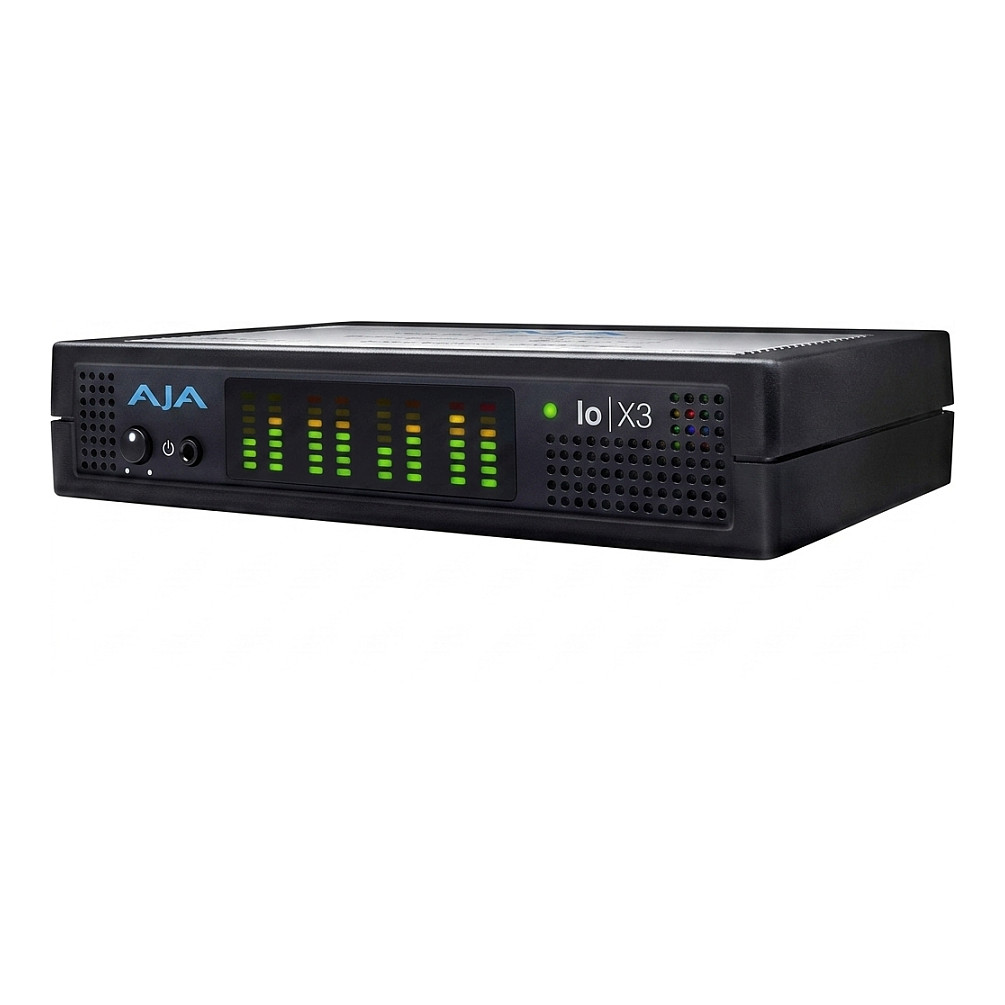

AJA Io X3 - Φορητή μονάδα εισόδου/εξόδου βίντεο (Thunderbolt 3)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  AJA
• Model
  Io X3
• MPN
  IO-X3-R1
• SKU
  21169474
• EAN / Barcode
  0812321033519
• Product Type
  Portable multi-channel 2K/HD/SD video I/O interface for Thunderbolt 3
• Supported Resolutions / Frame Rates
  2K / HD / SD up to 50/60p (2K: 2048×1080 up to 60p including 23.98,24,25,29.97,30,47.95,48,50,59.94,60)
• SDI Interfaces
  4x bidirectional 3G‑SDI BNCs (configurable as 4 in, 4 out or 2 in/2 out); supports SMPTE 425 (3G), SMPTE 292M (1.5G), SMPTE 259M‑C (270 Mbps SDI)
• HDMI
  HDMI v1.4b I/O with embedded audio support
• Thunderbolt
  2x Thunderbolt 3 ports with loop‑through (Thunderbolt 4/5 compatible)
• Audio (embedded)
  SDI: up to 16 channels embedded audio per SDI channel; HDMI: up to 8 channels embedded
• Audio (analog)
  DB‑25 / Tascam‑style: configurable 8 in OR 8 out OR 4 in + 4 out
• Monitoring / Multiview
  HDMI multiView: view up to 4 SDI sources on one HDMI display when Program Out not assigned
• HDR Support
  PQ, HLG, HDR10, Dolby Vision; VPID signaling over SDI for transfer characteristics, colorimetry and luminance
• Sync & Control
  Reference input (tri‑level/blackburst), RS‑422 serial control
• Timecode
  LTC input and output
• Headphones
  Stereo headphone jack for monitoring
• Power
  4‑pin XLR power input for battery or AC use
• Form Factor
  Compact, portable desktop chassis designed for on‑set, studio or edit suite use
• Use Cases
  Editing, VFX, grading, mastering, streaming, switching, live production, OBS/vMix/Telestream workflows
• Compliance / Certifications
  ICES‑3(A), CE, FCC‑A, KCC, VCCI‑A (as listed by retailer/manufacturer)
• Dimensions
  Not specified by provided sources
• Weight
  Not specified by provided sources (estimated ~1200 g device weight)
• Package Contents
  Not fully specified by provided sources (device; Thunderbolt power/cables and accessories may vary)
• Additional Features
  HDR metadata capture, auto playback detection, configurable SDI routing and multi‑channel I/O
