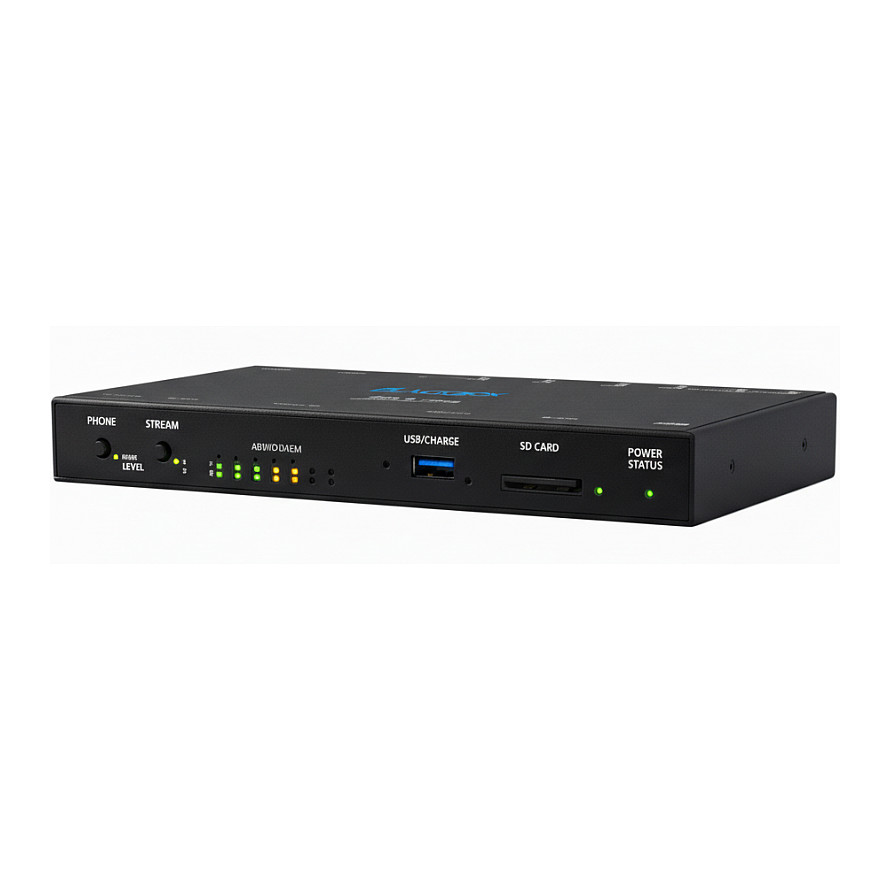

AJA HELO Plus - Συσκευή Streaming και Εγγραφής H.264

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  AJA Video Systems
• Model
  HELO Plus
• SKU
  21169459
• MPN
  HELO-PLUS-R0
• EAN / Barcode
  0812321032635
• Product Type
  Standalone H.264 streaming and recording appliance (encoder/recorder)
• Video Inputs
  3G‑SDI, HDMI
• Video Outputs
  3G‑SDI (loop) and HDMI preview (device supports I/O depending on routing)
• Maximum Resolution
  Up to 1080p60
• Supported Formats
  1080p, 1080i, 720p (50/59.94/60 variants supported)
• Encoding
  H.264 (MPEG‑4 AVC)
• Simultaneous Streams
  2 separate streaming destinations (two encoders)
• Streaming Protocols
  SRT (Caller/Listener), RTMP, RTMPS, RTSP, HLS, RTP/UDP, Unicast
• Recording Media
  SD/SDHC/SDXC cards, USB 3.2 Gen1 storage, NFS/CIFS/SMB network volumes
• Picture-in-Picture & Graphics
  Yes (PiP and built‑in graphics overlay capabilities)
• Audio Channels
  2‑channel stereo (default). Optional 4‑channel license for second stereo pair
• Audio Handling
  Embedded on SDI/HDMI; LED stereo VU meters on front panel
• Control Interface
  Web browser-based GUI with preview and multi-language UI
• Front Panel Controls
  Record button, Stream button, Main/Backup LED indicators, streaming LEDs, VU meters
• Network
  Ethernet for streaming and network storage access (configurable IP settings)
• Data Rates
  100 kbps to 20 Mbps (H.264 variable rates supported)
• Advanced Features
  SRT support, simultaneous play-to-stream (PlayToStream license), group control for multiple AJA devices
• Physical Characteristics
  Compact portable form factor (device dimensions not specified)
• Power
  External power adapter (AC powered) — details per AJA documentation
• Warranty
  Three Year Warranty
• MSRP (announced)
  Approx. $1869 USD (manufacturer announcement)
• Compliance & Safety
  See manufacturer documentation for regulatory and safety certifications
