AJA HA5-Fiber HDMI σε 3G‑SDI μέσω μονής ίνας Mini-Converter

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  AJA
• Model
  HA5-Fiber (HA5-FIBER)
• Function
  Converts HDMI input to SMPTE-259/292/424 3G/HD/SD-SDI over single-mode fiber
• Fiber Type
  Single-mode (1310 nm), ST connector
• Maximum Fiber Distance
  Up to 10 km (approx. 6 miles)
• HD Formats Supported
  1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• Interlaced/Other Formats
  1080i: 50, 59.94, 60; 720p: 50, 59.94, 60; SD: 625p, 576p, 525i, 480p
• Audio Support
  Embedded HDMI audio up to 8 channels; optional 2-channel RCA analog audio input
• Connectors

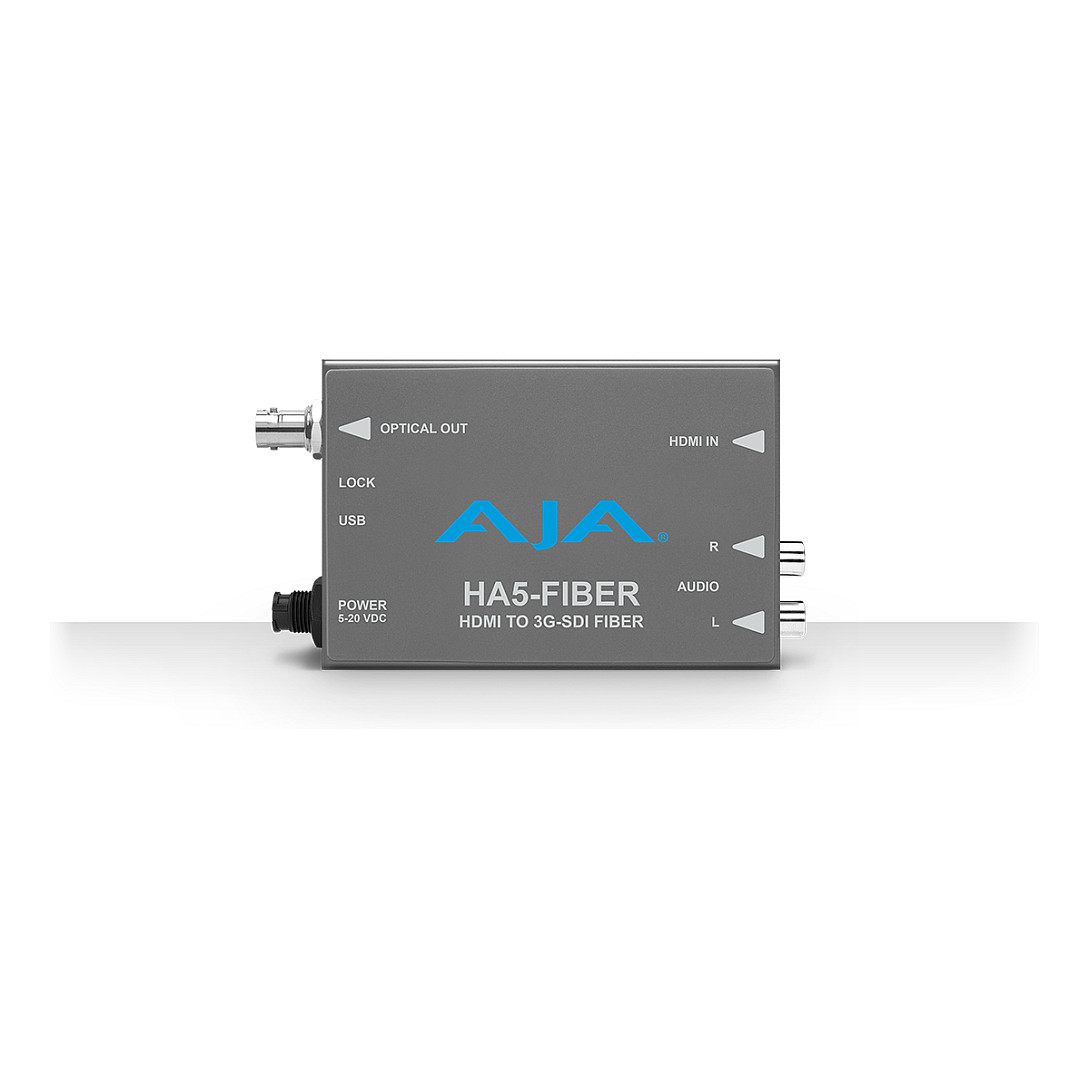

  HDMI input; optical fiber ST output; optional RCA audio inputs; locking DC power jack
• HDCP
  HDCP content not supported
• Power
  Universal power supply included; locking power connector; optional P-TAP cable for battery use
• Form Factor
  Compact/mini-converter; rack or rig mountable behind monitor or on camera rig
• Warranty
  5 years (per select retailer listings)
• Included Accessories
  1 m HDMI cable, universal power supply, documentation (per retailer listings)
• Dimensions (approx.)
  Compact mini-converter, roughly 7.5 x 5 x 2.5 cm (unit) — approximate
• Weight (product approx.)
  ~150 g (unit) — approximate
• Use Cases
  Broadcast, live production, camera-to-rack fiber transport, long-distance HDMI signal transport
• Configuration
  Plug-and-play for basic operation; compatible with AJA Mini-Config for advanced configuration
