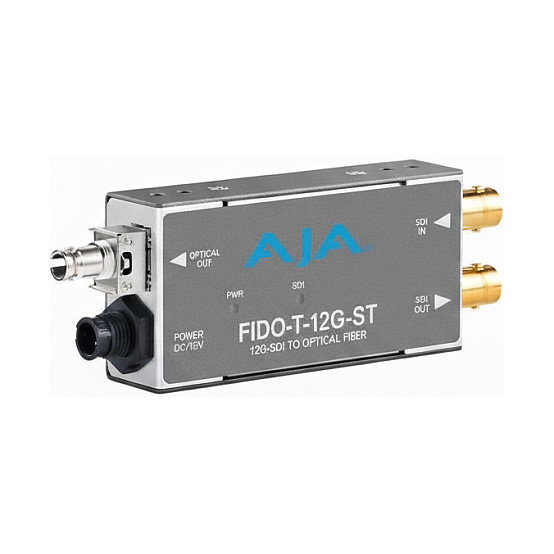

AJA FiDO‑T‑12G‑ST 1‑κανάλι 12G‑SDI σε μονοτροπική ίνα (ST) Μεταδότης (Mini‑Converter)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  AJA
• Model
  FiDO-T-12G-ST
• Product Type
  1-channel 12G-SDI to single-mode ST fiber transmitter (Mini-Converter)
• Supported Video Data Rates
  270 Mbps to 12 Gbps (format agnostic)
• Supported SDI Standards
  12G/6G/3G/HD/SD-SDI (SMPTE 259/292/424/2081/2082)
• SDI Video Input
  1x 12G-SDI BNC input
• SDI Loop Output
  1x reclocked 12G-SDI BNC loop-through output
• Fiber Output
  1x single-mode ST connector
• Transmission Distance
  Up to 10 km (32,808 ft) on standard single-mode fiber
• Optical Wavelength
  Tx: 1260 nm min / 1310 nm typ / 1360 nm max
• Optical Power
  Typical: -5 dBm min to +2 dBm max
• Extinction Ratio
  ≥ 3.4 dB
• Auto-Select Data Rates
  270 Mbps; 1.483/1.485 Gbps; 2.967/2.970 Gbps; 5.934/5.940 Gbps; 11.868/11.880 Gbps
• Connector Locking
  Locking ST barrel connector for secure fiber hookup
• Power Requirements
  5–20 VDC (some listings include universal power supply)
• Form Factor
  Compact, low-profile metal enclosure for rack, truck, and camera rig use
• Use Cases
  Live events, production, mobile/OB, camera-to-facility fiber links
• Warranty
  Five-year manufacturer warranty
• Compliance
  Meets relevant SMPTE specifications
• Electrical Isolation
  Provides electrical isolation to reduce ground potential issues
• Materials
  Metal enclosure (AJA typical construction)
• Dimensions
  Compact (manufacturer lists as low-profile; see product manual for exact dims)
• Product Weight
  ~200 g (unit only, approximate)
• Package Weight
  ~500 g (estimated boxed with PSU and documentation)
• Included Accessories
  Power supply (included on some retail packages), documentation
