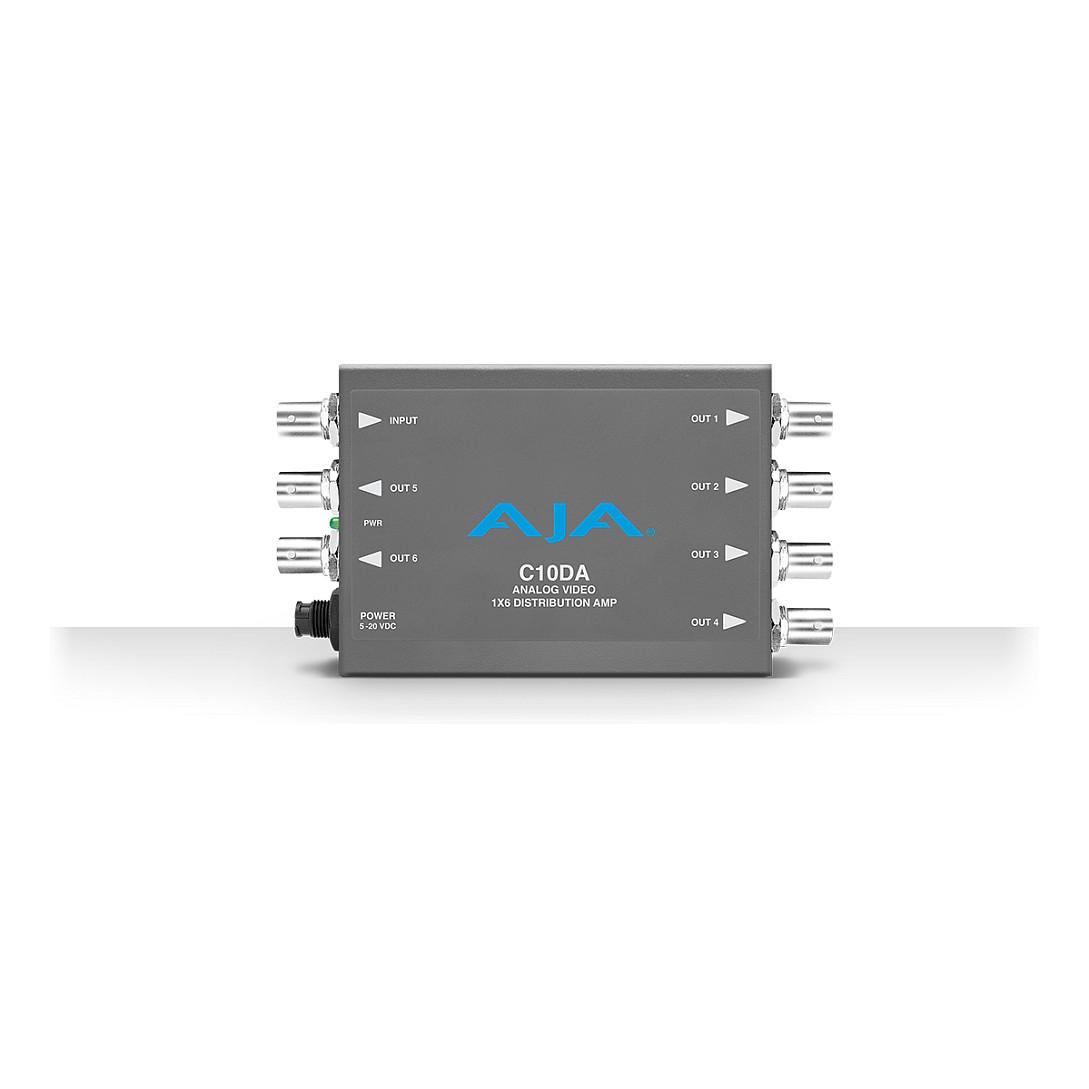

AJA C10DA Αναλογικός Διανομέας Βίντεο 1x6 (BNC)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Product Type
  Analog BNC 1x6 Distribution Amplifier
• Manufacturer
  AJA
• Model
  C10DA (C10DA-R0)
• SKU
  21169523
• EAN / Barcode
  0892448000670
• MPN
  C10DA-R0
• Input
  1 analog differential (1 x BNC)
• Outputs
  6 separately buffered analog outputs (6 x BNC)
• Termination
  Selectable 75 ohms or non-terminated
• Supported Video Formats
  NTSC and PAL composite
• Other Supported Signals
  Bi-level reference, Tri-level reference, AES3-id, LTC
• Video Bandwidth
  0–6 MHz ±0.1 dB
• Gain Settings
  -3 dB, -2 dB, -1 dB, 0 dB, +1 dB, +2 dB, +3 dB (±0.3 dB)
• Differential Gain
  0.15% (not load dependent)
• Differential Phase
  0.1° (not load dependent)
• H/V Tilt
  < 0.1%
• Response Variation
  < 0.1 dB across 1 to 6 loads
• Coupling
  DC coupling
• Maximum Common Mode Signal
  10 Vp-p
• Return Loss
  > 35 dB to 6 MHz on all inputs and outputs
• Output Isolation
  > 40 dB
• Physical Dimensions
  147 x 79 x 25 mm (5.8" x 3.1" x 1.0")
• Product Weight
  ~300 grams (0.3 kg)
• Power Requirement
  5 VDC regulated, 2 W
• Power Supply
  Required and included
• Operating Temperature
  0 to 40 °C (32 to 104 °F)
• Storage Temperature
  -40 to 60 °C (-40 to 140 °F)
• Operating Humidity
  10–90% non-condensing
• Features
  Compact miniature design; six separately buffered outputs; gain adjustment for long cable runs; suitable for distributing video and reference signals in broadcast/HD environments
