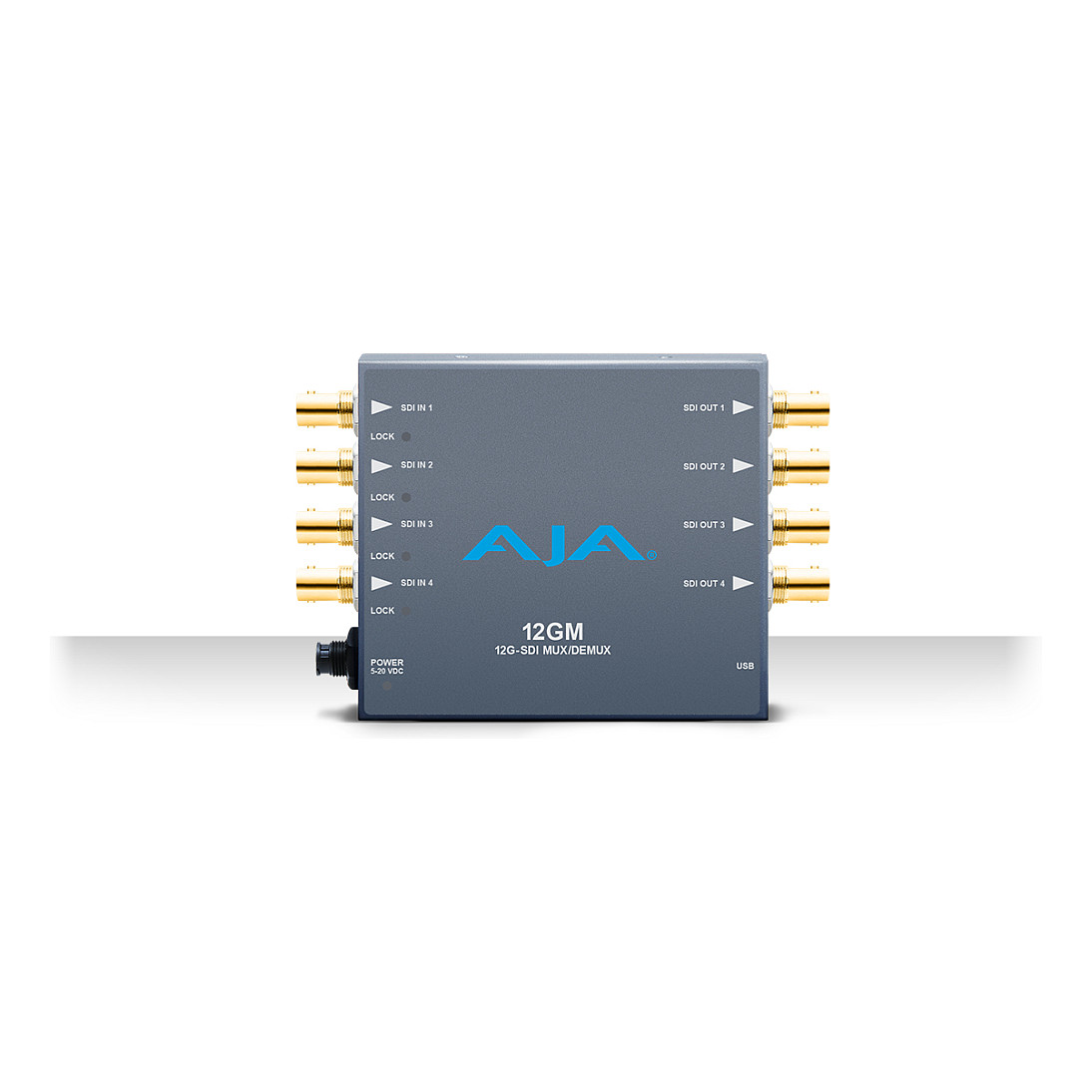

AJA 12GM Mini-Converter 12G-SDI σε/από quad-link 3G-SDI

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  AJA Video Systems
• Model
  12GM (12GM-R0)
• Product Type
  12G-SDI ⇄ quad-link 3G-SDI Mini-Converter (mux/demux)
• Video I/O
  4 × 12G-SDI BNC connectors
• Supported Resolutions
  4096×2160p, 3840×2160p, 2048×1080p, 1920×1080p/1080i, 1280×720p, 720×576i, 720×480i
• Supported Bit Rates
  12G, 6G, 3G, 1.5G, 270M SDI pass-through
• Mapping Formats
  Two Sample Interleave (2SI), Square Division (Quadrant)
• 3G Support
  3G-SDI Level A / Level B Dual-Link (DL), 3G-B Dual Stream
• Color Sampling
  4:2:2 YCbCr and 4:4:4 YCbCr/RGB
• Bit Depth
  8-bit or 10-bit
• Audio
  Embedded SDI audio passthrough, 24-bit, up to 16 channels
• Frame Rate Conversion
  Simple FRC (including 60 ↔ 59.94 fps)
• HDR
  HDR signaling metadata pass-through with optional override
• Diagnostics
  Input signal diagnostics and quad-link timing analyzer
• Distribution Amp
  Configurable as 1×4 Distribution Amplifier
• Control
  Automatic or manual control; configuration via USB using AJA Mini-Config (Mac/Windows)
• Power Requirements
  5–16 VDC regulated, 12 W typical; AC adapter included (100–240 VAC, 50/60 Hz)
• Dimensions (device)
  146 × 102 × 23 mm (5.76 × 4.02 × 0.90 in)
• Operating Temp
  0 to 40°C
• Storage Temp
  -40 to 60°C
• Operating Humidity
  10–90% non-condensing
• Operating Altitude
  Below 3,000 m
• Included Items
  Mini-converter unit, AC power adapter (required and included), USB configuration cable (if included per pack), documentation
• Form Factor
  Compact rack/box-style mini-converter for professional video infrastructure
