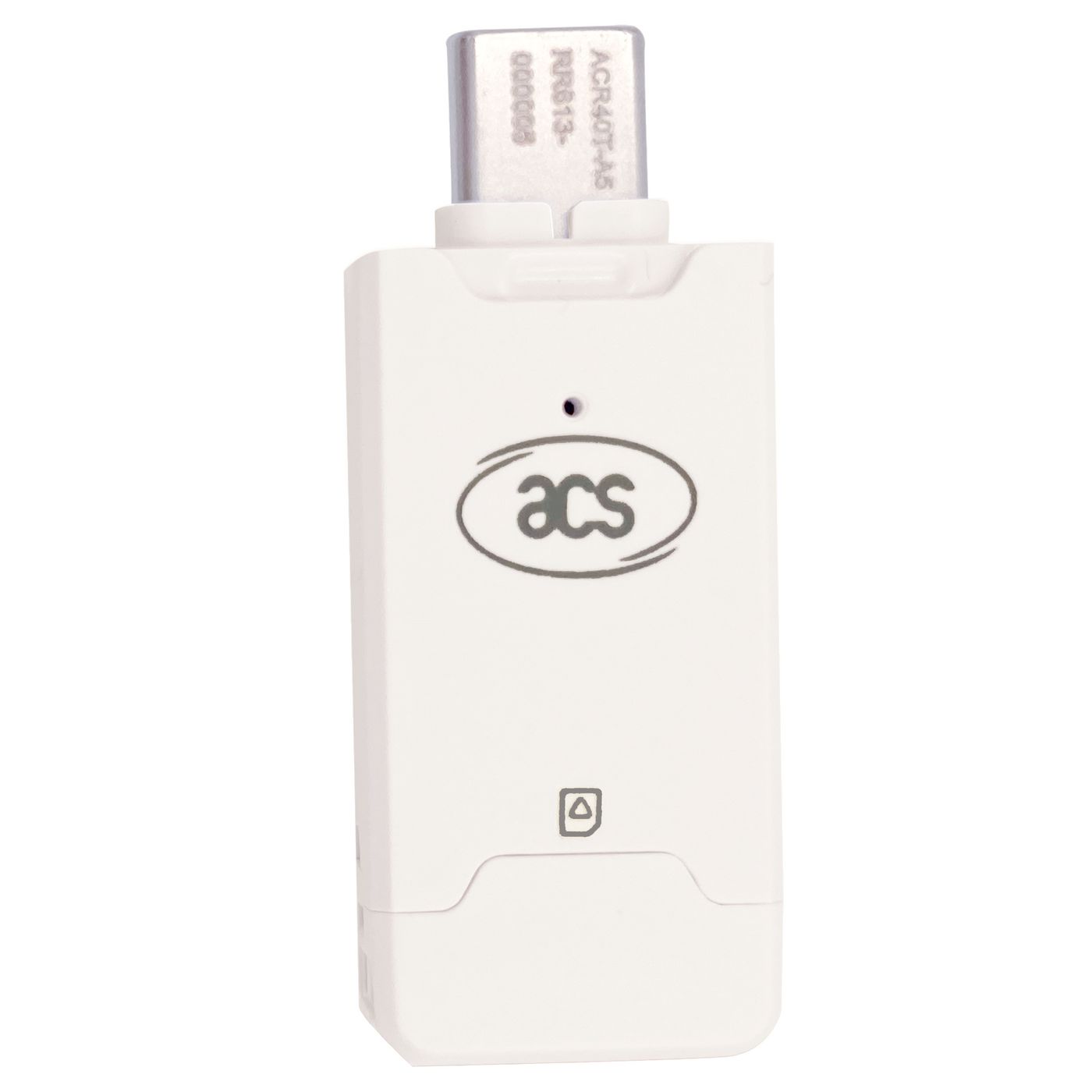

ACS Μετατροπείς Αντάπτορες ACR40T Type C USB SIM Sized Smart Card Reader

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  ACS
• Model
  ACR40T-A5 / ACR40T-A7
• SKU
  W128177571
• MPN
  W128177571
• EAN
  4897129310457
• Product Type
  Contact Smart Card Reader
• Card Size
  SIM sized 2FF
• Connector
  USB Type C
• USB Standard
  USB 2.0 Full Speed
• Protocol
  USB CCID
• Card Interface
  6 pin contact smart card slot
• Supported Card Standards
  ISO 7816 Class A B C
• Supported Card Voltage
  5V 3V 1.8V
• Supported Card Protocols
  T 0 and T 1
• Read Write Speed
  9.6 to 600 Kbps
• Clock Frequency
  4.80 MHz up to 16 MHz
• PPS
  Supported
• Short Circuit Protection
  Supported
• Operating Systems
  Windows Linux macOS Android
• Interface Standards
  PC SC CCID Microsoft WHQL
• Power Supply
  5V from USB port
• Maximum Supply Current
  50 mA
• Dimensions
  44.7 x 17.7 x 8.0 mm
• Weight
  Approximately 5.3 g
• Color
  White
• Card Insertion Cycles
  100000 minimum
• Operating Temperature
  0 to 65 C
• Humidity
  95 percent non condensing
• Certifications
  UL 62368 CE UKCA FCC RoHS REACH VCCI
• Variant Features
  A7 variant includes built in button and programmable green LED
• Firmware
  Upgradeable post deployment
• Applications
  e Government e Banking e Payment e Healthcare PKI digital signing user authentication network security
