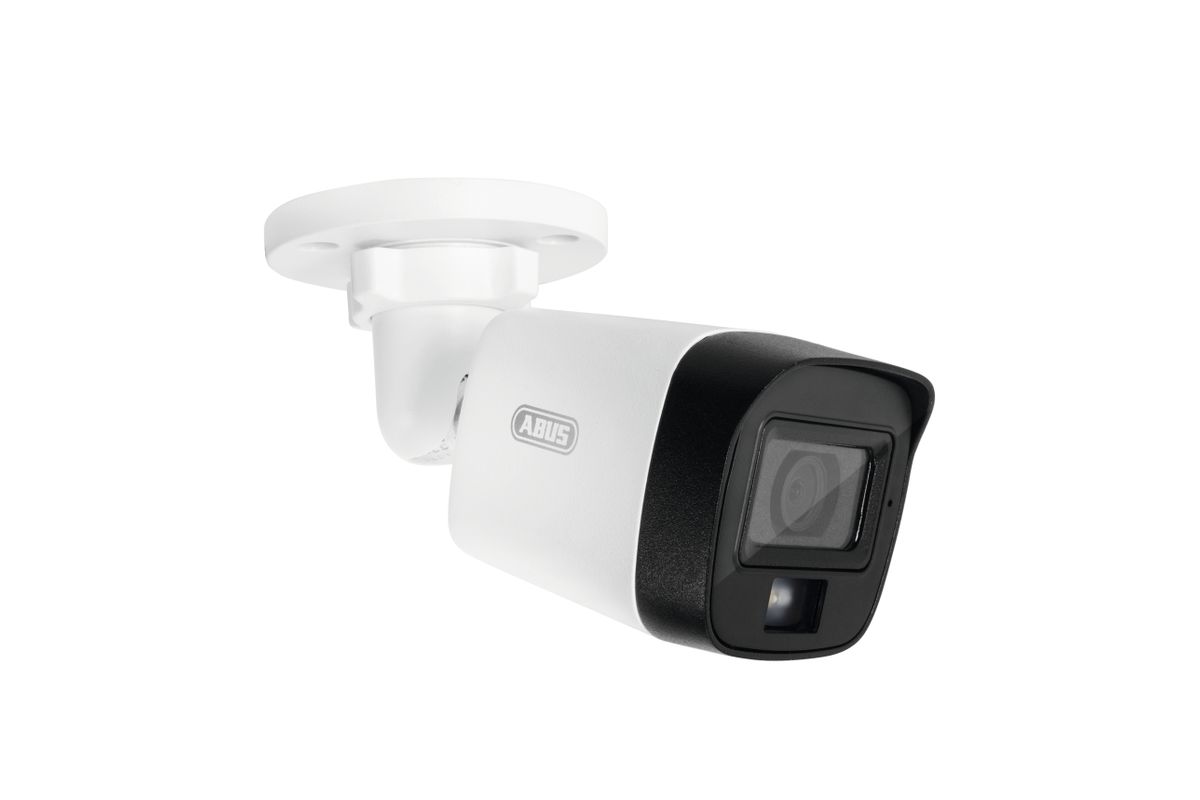

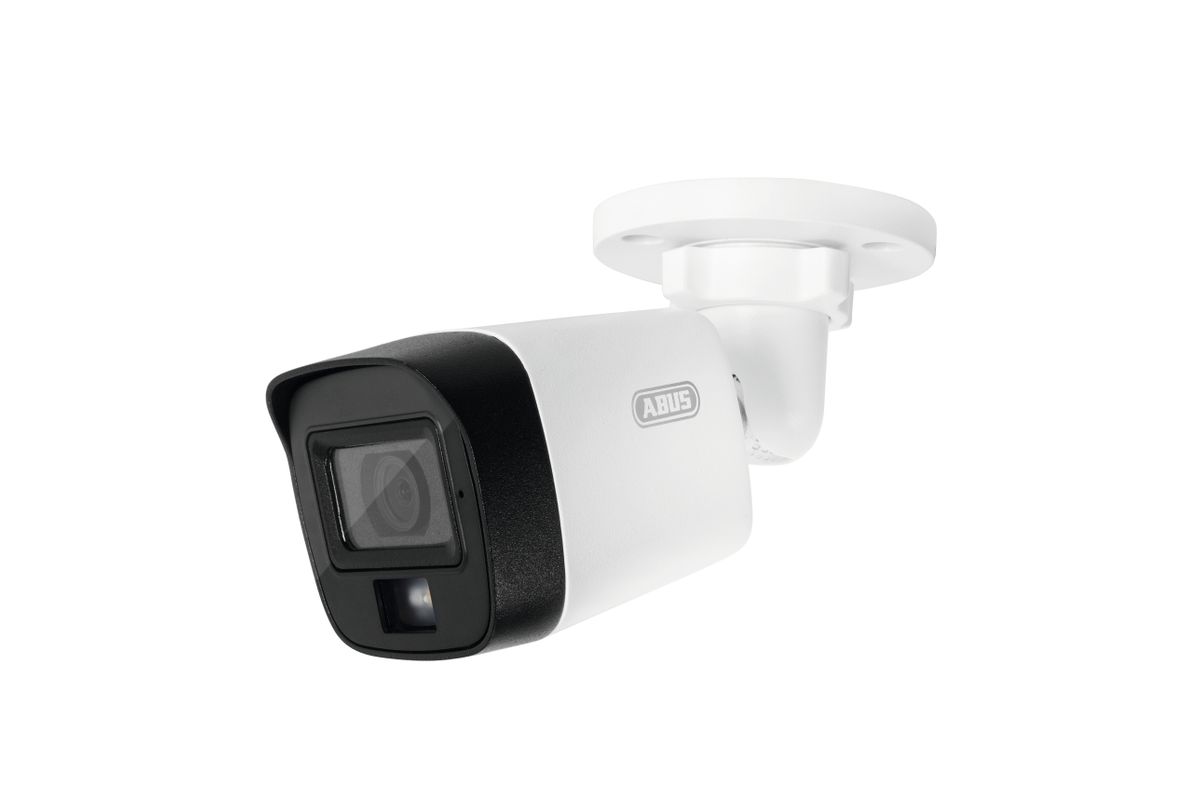

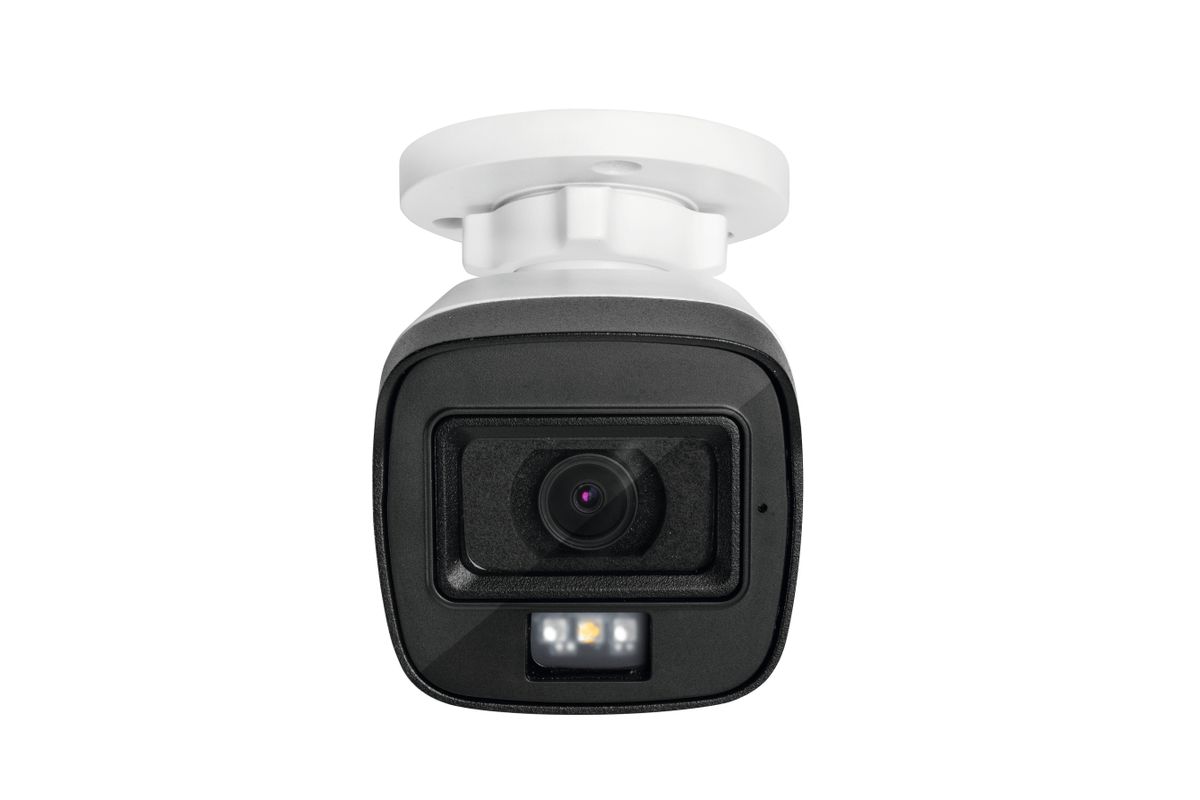

ABUS 2 MP Αναλογική Mini-Tube Κάμερα FlexNiteView (TVCC32512)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  ABUS
• Model / MPN
  TVCC32512
• SKU / Article number
  600137
• EAN / GTIN
  4003318611520
• Product type
  Analog HD mini-tube camera
• Image sensor
  CMOS
• Resolution
  2 MP (1920 × 1080, Full HD)
• Frame rate
  Up to 25 fps at 2 MP
• Supported video standards
  TVI, AHD, CVI and CVBS
• Video output
  1 × BNC
• Lens
  Fixed lens
• Focal length
  2.8 mm
• Aperture
  F1.6
• Horizontal viewing angle
  101°
• Vertical viewing angle
  56°
• Image processing
  BLC, HLC, DWDR / WDR
• Day/Night switching
  ICR (color / B/W)
• Minimum illumination (color)
  0.01 lx
• Minimum illumination (IR)
  0 lx
• Infrared (IR) range
  Up to 30 m
• Integrated white-light LED
  Yes (for color night surveillance)
• Housing material
  Die-cast aluminum
• Protection rating
  IP67
• Operating temperature range
  −40 °C to +60 °C
• Maximum relative humidity
  90%
• Dimensions (L × W × H)
  139 × 61 × 58 mm
• Net weight
  ~280 g
• Gross / packaged weight
  ~800 g (typical packaging)
• Power supply
  12 V DC ±25%
• Power consumption
  ~3.3 W
• Connection type
  Wired (BNC video)
• Transmission distance (typical)
  Up to ~500 m over RG59 (manufacturer guidance)
• OSD language
  English
• Typical uses
  Indoor and outdoor general video surveillance
• Manufacturer recommended recorders
  ABUS TVVR33xxxxx and HDCC9xxxx series
