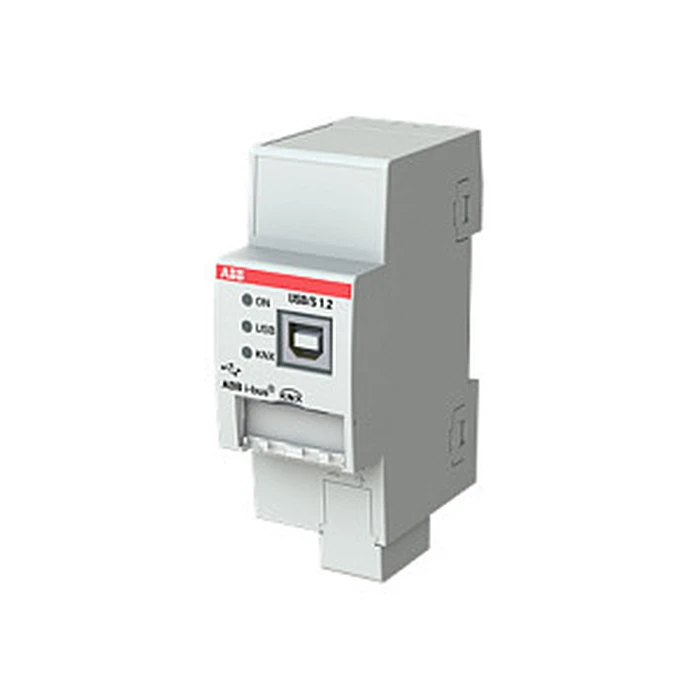

ABB USB/S 1.2 USB-διασύνδεση (KNX USB διεπαφή)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  ABB
• Model / Product Name
  USB/S 1.2 (USB-Schnittstelle)
• MPN / Order code
  2CDG110243R0011
• SKU
  21316918
• EAN / Barcode
  4016779064507
• Product Type
  KNX USB interface (USB to KNX bus)
• Mounting
  DIN-rail (REG), 35 mm mounting rail
• Design
  Pro M (DIN-rail module)
• Width
  2 modules (2 TE) / 36 mm
• Height
  90 mm
• Depth
  64.5 mm
• Minimum box depth
  63.5 mm
• Material
  Thermoplastic (plastic)
• Color
  Light gray (RAL 7035)
• Protection class / IP rating
  IP20
• USB connector
  USB Type B
• USB standard
  USB 1.1 (USB interface)
• Max USB cable length
  5 m
• KNX connection
  Bus connection terminal
• Galvanic isolation
  Yes (between USB and KNX)
• LED indicators
  3 LEDs (operating status and telegram/data traffic)
• Supported bus system
  KNX
• Supports KNX Long Frames
  Yes
• ETS compatibility
  From ETS3 onward
• Transmission rate
  9600 Bd
• KNX supply voltage
  21–30 V DC
• USB supply voltage
  5 V DC
• Current consumption (KNX)
  max. 3 mA
• Current consumption (USB)
  max. 15 mA
• Power dissipation (KNX)
  max. 100 mW
• Power dissipation (USB)
  max. 75 mW
• Total power dissipation
  max. 200 mW
• Label field
  Yes
• Country of manufacturer / Brand family
  ABB i-bus KNX
