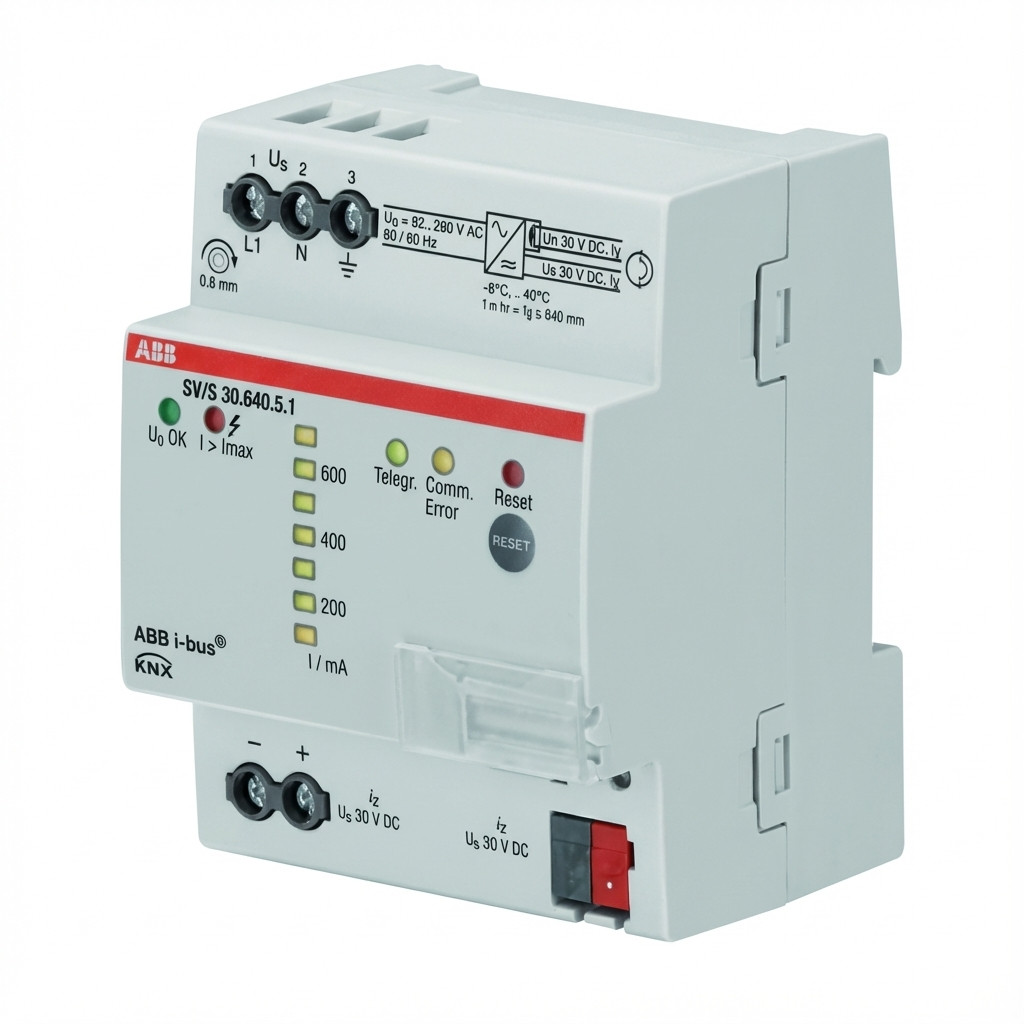

ABB SV/S 30.640.5.1 Τροφοδοτικό KNX 640 mA

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  ABB
• Model
  SV/S 30.640.5.1
• Manufacturer Part Number (MPN)
  2CDG110146R0011
• EAN / Barcode
  4016779866699
• Product Type
  KNX/EIB DIN-rail power supply (compact power supply)
• Input Voltage
  85…265 V AC, 50/60 Hz (datasheet also cites 100–240 V AC in some materials)
• Output Voltage (KNX)
  30 V DC SELV (U_N = 30 V DC +1/−2 V)
• Rated Current
  640 mA
• Auxiliary Output
  Additional 30 V DC auxiliary output (short-circuit-proof, overload-proof) for feeding an extra bus line with separate choke
• Integrated Choke
  Yes (decouples bus line from supply)
• Diagnostics
  Two-colour status LED (green/red) and ETS communication objects for operating state analysis
• Protections
  Short-circuit protection, overload protection on the KNX output
• Sustained Short-circuit Current
  < 1.4 A (later datasheet); older docs state < 1.5 A
• Mains-failure Bridging Time
  200 ms
• Power Loss / Dissipation
  4 W (ABB technical documentation); other sources report differing values
• Power Consumption
  < 45 VA (older documentation)
• Bus Lines Supported
  1 KNX line + 1 auxiliary line via separate choke
• Mounting Type
  DIN rail (modular DIN-rail device)
• Width
  72 mm (4 TE) — note: some older docs list 108 mm / 6 TE
• Height
  90 mm
• Depth
  64.5 mm
• Weight
  ~0.26 kg (datasheet); older docs list 0.35 kg
• Color
  Light grey
• IP Rating
  IP20
• Operating Temperature
  −5 °C to +45 °C
• Storage Temperature
  −25 °C to +55 °C
• Transport Temperature
  −25 °C to +70 °C
• Package Contents
  Power supply unit and documentation
