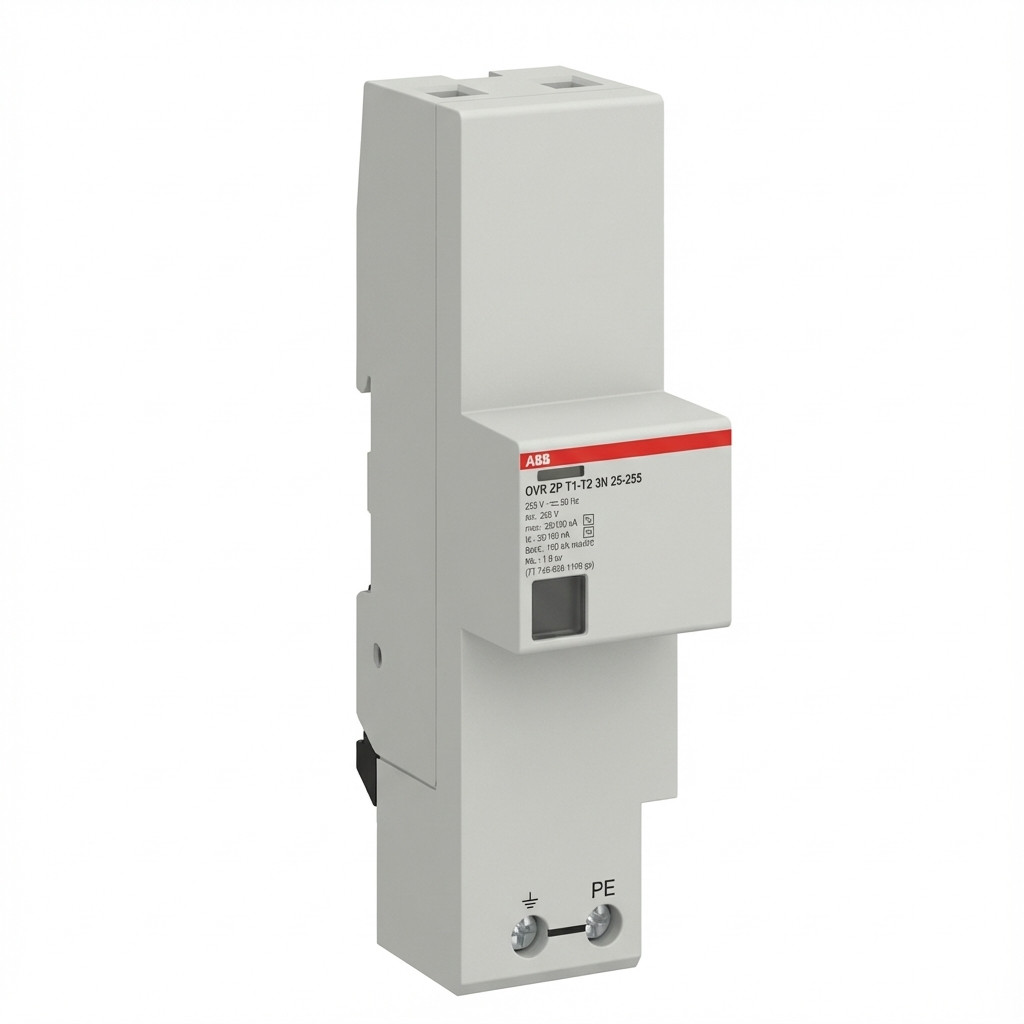

ABB OVR ZP T1-T2 3N 25-255 — Συνδυαστικός προστατευτής υπερτάσεων (Kombi-Ableiter) Τύπου 1+2 για δίκτυα TT / TN-S, τοποθέτηση σε 40 mm ράγα

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  ABB
• Model
  OVR ZP T1-T2 3N 25-255
• MPN
  2CTB815799R1500
• EAN / Barcode
  4053546025965
• Product type
  Combined lightning & surge protective device (SPD Type 1 + Type 2)
• Network / System forms
  TT, TN, TN-S
• Poles
  3N (3-phase + N) — TT/TN-S version
• Rated AC voltage
  230 V AC
• Highest continuous operating voltage (Uc)
  255 V AC
• Lightning impulse current (Iimp, 10/350 µs)
  25 kA
• Total discharge current (Itotal, 8/20 µs)
  100 kA
• Follow current extinction capability
  25 kA
• Protection level L-N
  ≤ 1.5 kV
• Protection level N-PE
  ≈ 1.5 kV (consistent with L-N value; some listings show formatting errors)
• Pre-fuse / backup fuse
  Not integrated (recommended gG 315 A)
• Technology
  Spark gap (low-leakage spark gaps)
• Status indication
  Optical LED status indicator
• Mounting
  Tool-free on 40 mm busbar; TH35 DIN rail compatible
• Busbar compatibility
  40 mm collector/busbar system
• Cable cross-section (rigid)
  up to 50 mm²
• Cable cross-section (flexible)
  up to 35 mm²
• Ingress protection (IP)
  IP30
• Standards / Class
  IEC 61643-11 / DIN EN 61643-11 — SPD Class 1 / Class 2
• Intended installation location
  Pre-meter area, lightning protection zone concept
• Operating temperature range
  -5 °C to +45 °C
• Country of manufacture
  Germany
• Approx. product weight
  1010 g
• Approx. package weight
  1200 g
• Package dimensions (L x W x H cm)
  12 x 8 x 6
