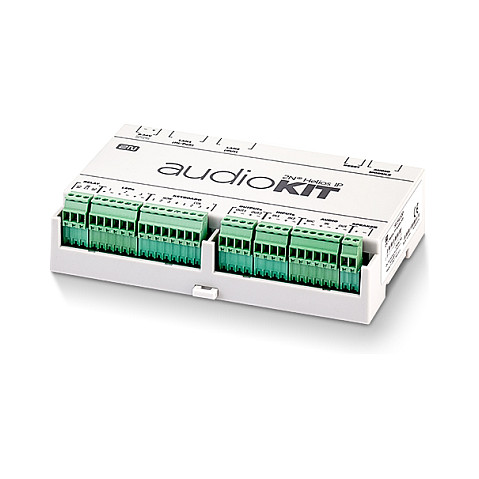

2N IP Audio Kit (9154100 / 01526-001) - Ενσωματωμένο IP ακουστικό / SIP audio module

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  2N
• Model / MPN
  9154100 (also referenced as 01526-001)
• SKU
  21168662
• EAN / Barcode
  8595159502052
• Product type
  IP Audio Kit / Embedded SIP intercom module
• Signalling protocol
  SIP 2.0 (UDP)
• Audio codecs supported
  G.711
• Full duplex / Echo cancellation
  Yes (AEC)
• PoE
  IEEE 802.3af (Class 0), max 12.95 W
• External power
  9–36 V DC (typical 12 V DC), max 2 A
• Amplifier / Speaker output
  Integrated amplifier — documented outputs: up to 5 W @ 8 Ω, up to 2.5 W @16 Ω; datasheet references 10 W amplifier in some installation contexts
• Line output impedance
  600 Ω
• Network interface
  10/100BASE-TX, RJ-45, Auto-MDIX
• Supported protocols
  SIP 2.0, DHCP, SMTP, 802.1x, RTSP, RTP, TFTP, HTTP, HTTPS, Syslog
• Features
  Two-way live audio, paging/announcements, user-defined stored sounds (up to 10 profiles), time profiles, adaptive/auto volume, remote configuration and control
• Connectors / I/O
  Microphone input, speaker/headphone outputs, line out, keypad support (various external audio connectors depending on installation)
• Dimensions (unit)
  142 × 98 × 34 mm (unit order ref. 9154100)
• Alternative / installed box dimensions
  230 × 160 × 47 mm (packaged/intercom configuration)
• Weight (unit)
  ~280 g
• Package weight (estimated)
  ~650 g
• Color
  White
• Country of origin
  Czech Republic
• Operating temperature
  -40 °C to +55 °C (datasheet)
• Operating humidity
  10% to 95% non-condensing
• Storage temperature
  -40 °C to +70 °C
• Warranty
  3-year limited warranty (distributor listings)
• Typical uses
  Embedded IP intercom integration, paging/announcements, remote audio communication and surveillance
• Manufacturer
  2N Telekomunikace a.s.
