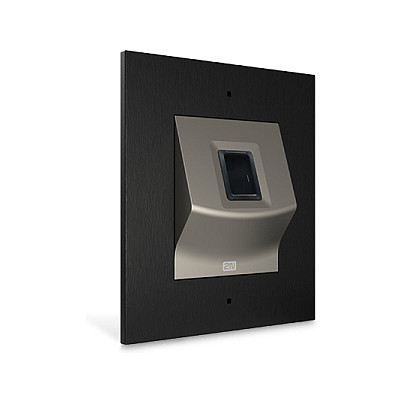

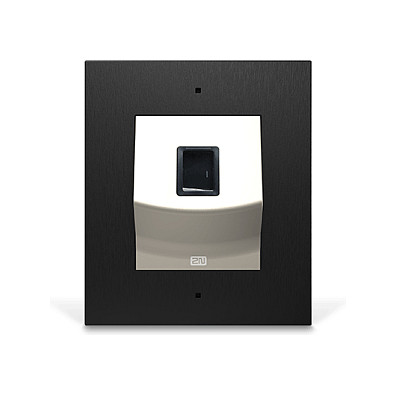

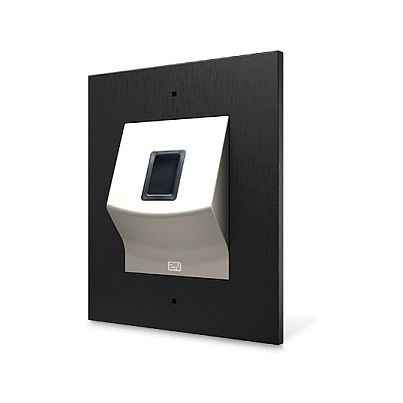

2N Access Unit 2.0 Αναγνώστης Δακτυλικών Αποτυπωμάτων

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  2N
• Model
  Access Unit 2.0 Fingerprint Reader
• MPN
  916031
• EAN
  8595159514963
• Product type
  Biometric fingerprint reader / IP access-control / intercom module
• Network interface
  10/100BASE-TX Ethernet (RJ-45) with Auto-MDIX
• PoE
  802.3af (Class 0)
• Power supply
  PoE and optional 12 V DC (12 V ±15% / 2 A DC typical)
• Recommended cabling
  Cat-5e or higher
• Operating temperature
  -20 °C to 55 °C
• Ingress protection
  IP54
• Impact protection
  IK08
• Product weight
  800 g
• Fingerprint sensor technology
  Optical fingerprint sensor
• Fingerprint image capture area
  15.24 × 20.32 mm
• Anti-spoofing
  Spoof/false-fingerprint rejection / ambient-light rejection
• Speaker
  0.8 W / 8 Ω
• Passive switch (relay) rating
  dry/wet contact up to 30 V / 1 A AC/DC
• Active switch output
  approx. 8–12 V DC, up to ~550–600 mA
• Inputs
  2 inputs (configurable passive/active)
• LED indicators
  Multicolor LEDs for status
• Certifications
  FBI PIV and Mobile ID listed in datasheet
• Package contents
  Access Unit 2.0 Fingerprint Reader, hex key, brief manual
• Warranty
  Typical vendor 3-year warranty (varies by seller)
