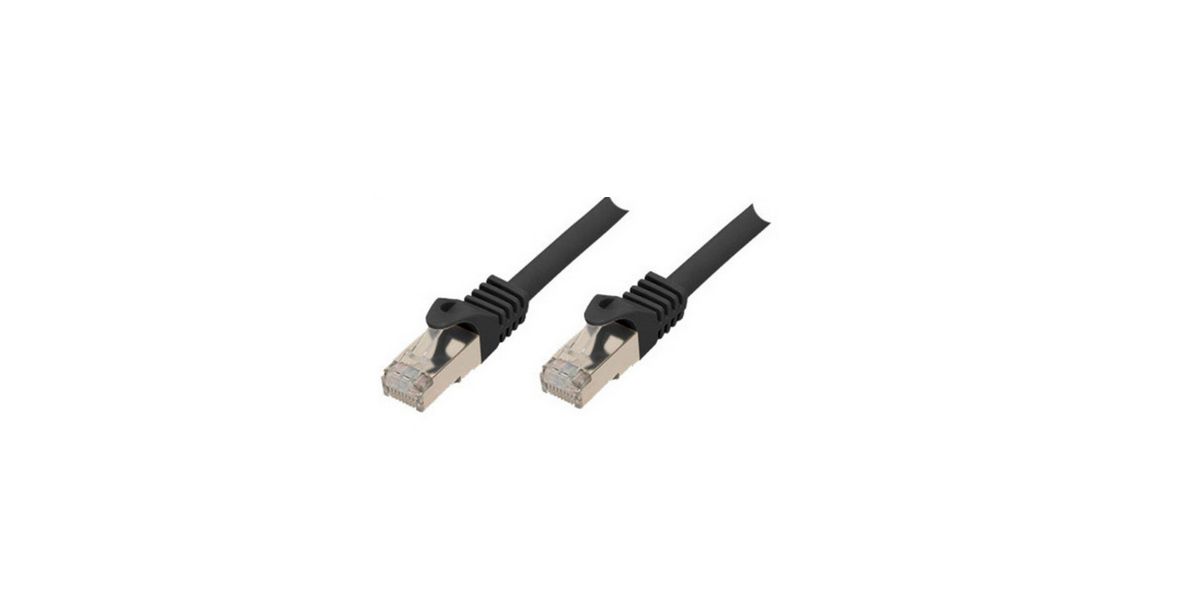

Shiverpeaks RJ45 Patchkabel S/FTP Cat7 LSZH 50m μαύρο

Περιγραφή

Τεχνικά Χαρακτηριστικά

• SKU
  581256
• Brand
  Shiverpeaks
• EAN
  4017538075772
• MPN
  BS75550-S
• Product Type
  RJ45 Patch Cable (Rohkabel / bulk cable)
• Cable Category
  CAT 7 (component performance for CAT6A/7)
• Shielding
  S/FTP (PiMF: foil per pair + overall tinned copper braid ~85%)
• Jacket Material
  LSZH (Low Smoke Zero Halogen), TPE/PUR
• Length
  50 m
• Color
  Black (Schwarz)
• Conductor
  4x2 cores (8 wires), stranded copper, AWG 26/7
• Cable Diameter
  Ø 5.8–6.0 mm (±0.2 mm)
• Bandwidth
  up to 600 MHz
• Data Rate
  up to 10 Gbit/s
• Impedance
  100 Ω ±15 Ω
• DC Conductor Resistance
  ≤142–145 Ω/km
• Loop Resistance
  ≤284 Ω/km
• Unbalance
  ≤2%
• Test Voltage
  1000 V DC (1 min, core-to-core/core-to-screen)
• NVP / Delay Skew
  ≤45 ns/100 m (delay skew)
• Operating Temperature
  -20°C to +75°C
• Bending Radius
  >32.5 mm
• Tensile Strength
  ≥13.5 MPa
• Elongation
  ≥150%
• Standards/Compliance
  ISO/IEC 11801, TIA/EIA 568B, IEC 60603-7-51
• Connector Compatibility
  RJ45 (8P8C) field-termination compatible
• Typical Use
  Indoor installations, datacenters, server rooms, professional networks
• Packaging
  50 m coil/roll (raw cable)
• Weight (50 m)
  ~1000 g (estimated)
• Scope of Delivery
  1 x 50 m CAT7 S/FTP LSZH Rohkabel (black)
