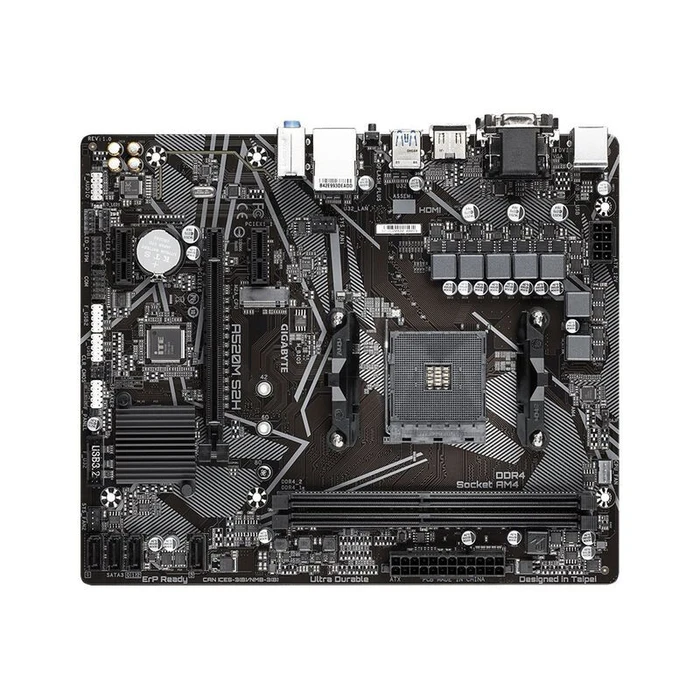

Motherboard Gigabyte A520M S2H - 1.0 - Motherboard - micro ATX - Socket AM4 - AMD A520

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Max Supported Qty
  1
• Form Factor
  Micro ATX
• Compatible Processors
  Ryzen
• Chipset Type
  AMD A520
• Supported RAM Technology
  DDR4 SDRAM
• Supported RAM Integrity Check
  Non-ECC, ECC
• Supported RAM Speed
  3200 MHz, 4866 MHz (O.C.), 5000 MHz (O.C.), 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.)
• Processor Socket
  Socket AM4
• Power Connectors
  24-pin main power connector, 8-pin ATX12V connector
• Supported RAM (Registered or Buffered)
  Unbuffered
• Internal Interfaces
  1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 1 x speaker - header, 2 x USB 3.2 Gen 1 - header
• Features
  Intel Extreme Memory Profiles (XMP), Dual channel memory architecture
• Max Supported Size
  64 GB
• Type
  Graphics adapter (CPU required)
• Type
  Sound card
• Compliant Standards
  High Definition Audio
• Audio Codec
  Realtek ALC887
• Audio
  High Definition Audio (8-channel)
• Data Link Protocol
  Ethernet, Fast Ethernet, Gigabit Ethernet
• Network
  Gigabit Ethernet
• Expansion Slots
  1 x CPU, 1 x PCIe 3.0 x16, 2 x DIMM 288-pin, 2 x PCIe 3.0 x1
• Storage Interfaces
  SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 3.0 -connectors: 1 x M.2
• Storage
  Serial ATA-600 (RAID), M.2 socket
• FireWire
  USB 3.2 Gen 1
• Storage Ports
  4 x SATA-600 (RAID), 1 x M.2
• FireWire Ports Configuration (Active)
  4 x USB 3.2 Gen 1 + 2 x USB 2.0
• FireWire Ports Configuration (Headers)
  2 x USB 3.2 Gen 1 + 4 x USB 2.0
• Software Included
  EasyTune, Xpress Install, GIGABYTE App Center, Norton Internet Security, GIGABYTE Fast Boot, @BIOS, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control
• Width
  24.4 cm
• Depth
  20.5 cm
