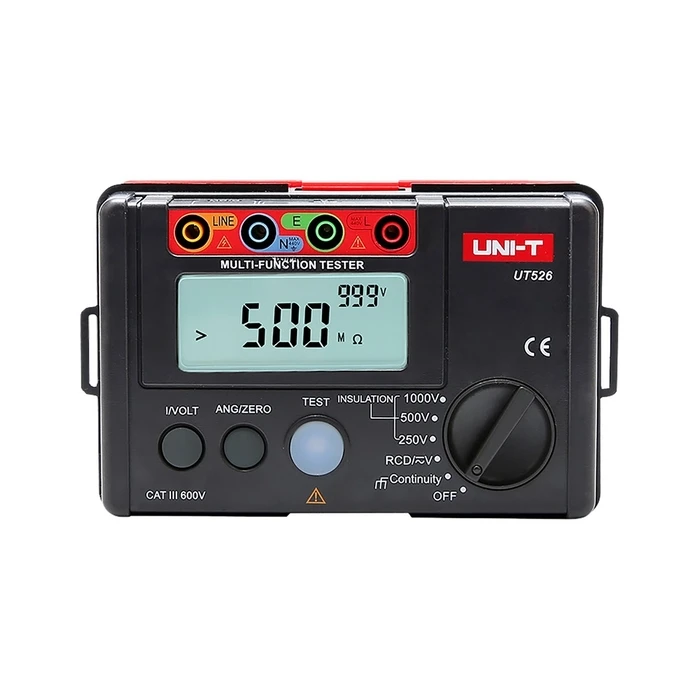

Μετρητής Uni-T UT526 Multifunction Meter for Electricians
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Related Products
Παλμογράφος Fnirsi 3 σε 1 Πολύμετρο/Signal Generator 2C53T, Επαναφορτιζόμενος
The Uni-T UT526 Multifunction Electrical Meter is a versatile and reliable tool designed for electricians and professionals in the electrical testing and measurement field. This multifunctional meter is equipped with a wide range of features that make it an essential device for various electrical applications.
Key Features
- Display Count: The meter features a large quality LCD display that can count up to 10,000 readings, providing clear and accurate data.
- Manual Range: The UT526 allows for manual range selection, enabling users to adjust the measurement settings according to their specific needs.
- Phase Switch (RCD): The meter includes a phase switch with settings of 0° and 180°, facilitating the testing of RCD (Residual Current Device) status.
- Low Battery Indication: The device is equipped with a low battery indication feature, ensuring that users are aware when the battery needs to be replaced.
- Auto AC/DC Voltage Identification: The UT526 can automatically identify AC or DC voltage, providing quick and accurate measurements.
- Red Warning Lights: The meter features red warning lights to alert users of potential issues or errors during testing.
Technical Specifications
- Insulation Resistance (Ω): Test Voltages: 250V, 500V, and 1000V. Measurement Range: 250V: 0.05MΩ to 200MΩ, 500V: 0.05MΩ to 300MΩ, 1000V: 0.05MΩ to 500MΩ.
- Load Current: 250V (R=250kΩ): 1mA, 500V (R=500kΩ): 1mA, 1000V (R=1MΩ): 1mA.
- Short Circuit Current: Less than 2mA.
- RCD Testing: Operating Voltage: 220V (45Hz to 65Hz). Test Current: 10mA, 30mA, 100mA, and 300mA. Trip Time: ranges from 0ms to 2000ms depending on the configuration.
- Low Resistance Continuity: Range: 0Ω to 2000Ω. Test Voltage: Approximately 5V. Test Current: Greater than 200mA (R < 2Ω).
-
Insulation Resistance Test Voltages250V, 500V, 1000V
-
Insulation Resistance Measurement Range 250V0.05MΩ to 200MΩ
-
Insulation Resistance Measurement Range 500V0.05MΩ to 300MΩ
-
Insulation Resistance Measurement Range 1000V0.05MΩ to 500MΩ
-
Load Current 250V1mA (R=250kΩ)
-
Load Current 500V1mA (R=500kΩ)
-
Load Current 1000V1mA (R=1MΩ)
-
Short Circuit Current< 2mA
-
RCD Operating Voltage220V (45Hz to 65Hz)
-
RCD Test Current10mA, 30mA, 100mA, 300mA
-
RCD Trip Time0ms to 2000ms
-
Low Resistance Continuity Range0Ω to 2000Ω
-
Low Resistance Continuity Test Voltage~5V
-
Low Resistance Continuity Test Current> 200mA (R < 2Ω)
Ratings
Description
The Uni-T UT526 Multifunction Electrical Meter is a versatile and reliable tool designed for electricians and professionals in the electrical testing and measurement field. This multifunctional meter is equipped with a wide range of features that make it an essential device for various electrical applications.
Key Features
- Display Count: The meter features a large quality LCD display that can count up to 10,000 readings, providing clear and accurate data.
- Manual Range: The UT526 allows for manual range selection, enabling users to adjust the measurement settings according to their specific needs.
- Phase Switch (RCD): The meter includes a phase switch with settings of 0° and 180°, facilitating the testing of RCD (Residual Current Device) status.
- Low Battery Indication: The device is equipped with a low battery indication feature, ensuring that users are aware when the battery needs to be replaced.
- Auto AC/DC Voltage Identification: The UT526 can automatically identify AC or DC voltage, providing quick and accurate measurements.
- Red Warning Lights: The meter features red warning lights to alert users of potential issues or errors during testing.
Technical Specifications
- Insulation Resistance (Ω): Test Voltages: 250V, 500V, and 1000V. Measurement Range: 250V: 0.05MΩ to 200MΩ, 500V: 0.05MΩ to 300MΩ, 1000V: 0.05MΩ to 500MΩ.
- Load Current: 250V (R=250kΩ): 1mA, 500V (R=500kΩ): 1mA, 1000V (R=1MΩ): 1mA.
- Short Circuit Current: Less than 2mA.
- RCD Testing: Operating Voltage: 220V (45Hz to 65Hz). Test Current: 10mA, 30mA, 100mA, and 300mA. Trip Time: ranges from 0ms to 2000ms depending on the configuration.
- Low Resistance Continuity: Range: 0Ω to 2000Ω. Test Voltage: Approximately 5V. Test Current: Greater than 200mA (R < 2Ω).
Technical Specifications
-
Insulation Resistance Test Voltages250V, 500V, 1000V
-
Insulation Resistance Measurement Range 250V0.05MΩ to 200MΩ
-
Insulation Resistance Measurement Range 500V0.05MΩ to 300MΩ
-
Insulation Resistance Measurement Range 1000V0.05MΩ to 500MΩ
-
Load Current 250V1mA (R=250kΩ)
-
Load Current 500V1mA (R=500kΩ)
-
Load Current 1000V1mA (R=1MΩ)
-
Short Circuit Current< 2mA
-
RCD Operating Voltage220V (45Hz to 65Hz)
-
RCD Test Current10mA, 30mA, 100mA, 300mA
-
RCD Trip Time0ms to 2000ms
-
Low Resistance Continuity Range0Ω to 2000Ω
-
Low Resistance Continuity Test Voltage~5V
-
Low Resistance Continuity Test Current> 200mA (R < 2Ω)
