The UNI-T UT181A is a versatile and advanced digital multimeter designed for precise electrical measurements. This handheld device is equipped with a range of features that make it suitable for various applications in electronics, engineering, and DIY projects.Key FeaturesTrue RMS Measurement: The...

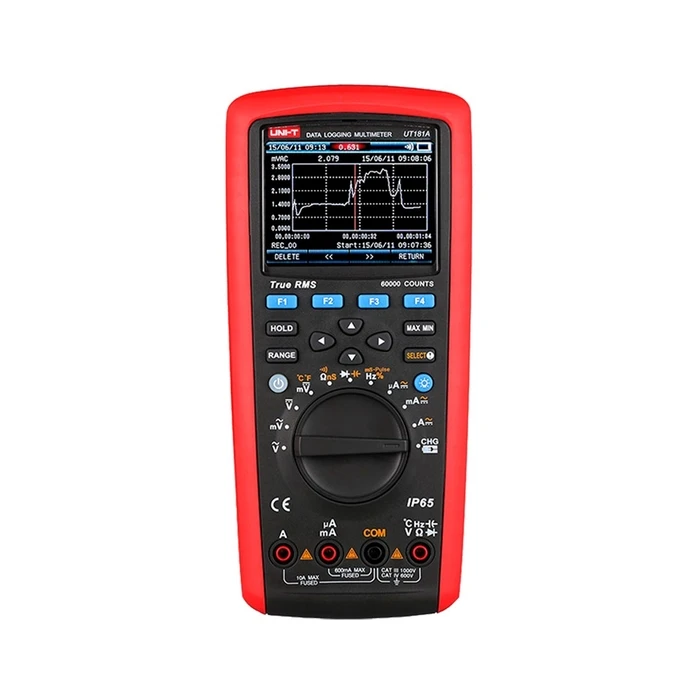

Μετρητής Multimeter model UT181A

Name: Μετρητής Multimeter model UT181A
Brand: Uni-T
SKU: 1127551437
Price: 382.11 EUR
Availability: OutOfStock

Product Code: 1127551437

Available in 4 - 10 days

382,11 €

11,93€ / month

εως 36 δόσεις με πιστωτική κάρτα

Quantity:

Add

Need Help? Fill in your details so we can call you immediately!

Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:

The UNI-T UT181A is a versatile and advanced digital multimeter designed for precise electrical measurements. This handheld device is equipped with a range of features that make it suitable for various applications in electronics, engineering, and DIY projects.

Key Features

True RMS Measurement: The UT181A provides true root mean square (RMS) measurements, ensuring accurate readings of AC voltages and currents regardless of the waveform. This feature is particularly useful for measuring non-sinusoidal waveforms, which are common in many electrical systems.
High Resolution: With a resolution of 60,000 counts, the UT181A offers detailed measurement granularity that reveals subtle variations that ordinary meters might miss.
Data Logging: The multimeter features a data logging capability, allowing it to store up to 20,000 sets of measurement data. This logged data can be visualized on a trend graph using its graphing display, making it easier to monitor changes over time.
Trend Capture: The UT181A includes a trend capture feature, enabling users to monitor and record changes in electrical parameters over a period, which is particularly useful for troubleshooting and analyzing electrical systems.
Dual Temperature Measurement: The device can measure two temperatures simultaneously, making it a valuable tool for applications requiring multiple temperature readings.
Low Pass Filter: The UT181A is equipped with a low pass filter that blocks high-frequency signals, ensuring accurate readings by reducing noise and interference.
Connectivity Options: For easy data transfer, the multimeter offers Bluetooth and USB connectivity, allowing users to transfer logged data to computers or other devices for further analysis.
Safety Features: The UT181A is designed with full-range overload protection circuits and meets safety standards such as CAT III 1000V and CAT IV 600V. It also includes an IP65 waterproof rating, making it suitable for use in various environments.

DC Voltage

Up to 1000VDC
AC Voltage

Up to 1000V
DC Current

Up to 10A
AC Current

Up to 10A
Resistance

Up to 2000Ω
Conductance

Up to 2000 μS
Diode

Forward voltage and reverse current
Continuity

Beep sound for continuity testing
Capacitance

Up to 100 μF
Frequency

Up to 100 kHz
Temperature

Dual temperature measurement
Pulse Width

Up to 100 μs
Display

3.5-inch TFT LCD display
Power Supply

Rechargeable battery
Additional Features

Data hold, maximum/minimum/average measurement, comparison measurement, relative measurement, peak detection, Bluetooth and USB connectivity

Ratings

How do you rate this product?

0/5

Description

Key Features

True RMS Measurement: The UT181A provides true root mean square (RMS) measurements, ensuring accurate readings of AC voltages and currents regardless of the waveform. This feature is particularly useful for measuring non-sinusoidal waveforms, which are common in many electrical systems.
High Resolution: With a resolution of 60,000 counts, the UT181A offers detailed measurement granularity that reveals subtle variations that ordinary meters might miss.
Data Logging: The multimeter features a data logging capability, allowing it to store up to 20,000 sets of measurement data. This logged data can be visualized on a trend graph using its graphing display, making it easier to monitor changes over time.
Trend Capture: The UT181A includes a trend capture feature, enabling users to monitor and record changes in electrical parameters over a period, which is particularly useful for troubleshooting and analyzing electrical systems.
Dual Temperature Measurement: The device can measure two temperatures simultaneously, making it a valuable tool for applications requiring multiple temperature readings.
Low Pass Filter: The UT181A is equipped with a low pass filter that blocks high-frequency signals, ensuring accurate readings by reducing noise and interference.
Connectivity Options: For easy data transfer, the multimeter offers Bluetooth and USB connectivity, allowing users to transfer logged data to computers or other devices for further analysis.
Safety Features: The UT181A is designed with full-range overload protection circuits and meets safety standards such as CAT III 1000V and CAT IV 600V. It also includes an IP65 waterproof rating, making it suitable for use in various environments.

Technical Specifications

DC Voltage

Up to 1000VDC
AC Voltage

Up to 1000V
DC Current

Up to 10A
AC Current

Up to 10A
Resistance

Up to 2000Ω
Conductance

Up to 2000 μS
Diode

Forward voltage and reverse current
Continuity

Beep sound for continuity testing
Capacitance

Up to 100 μF
Frequency

Up to 100 kHz
Temperature

Dual temperature measurement
Pulse Width

Up to 100 μs
Display

3.5-inch TFT LCD display
Power Supply

Rechargeable battery
Additional Features

Data hold, maximum/minimum/average measurement, comparison measurement, relative measurement, peak detection, Bluetooth and USB connectivity
