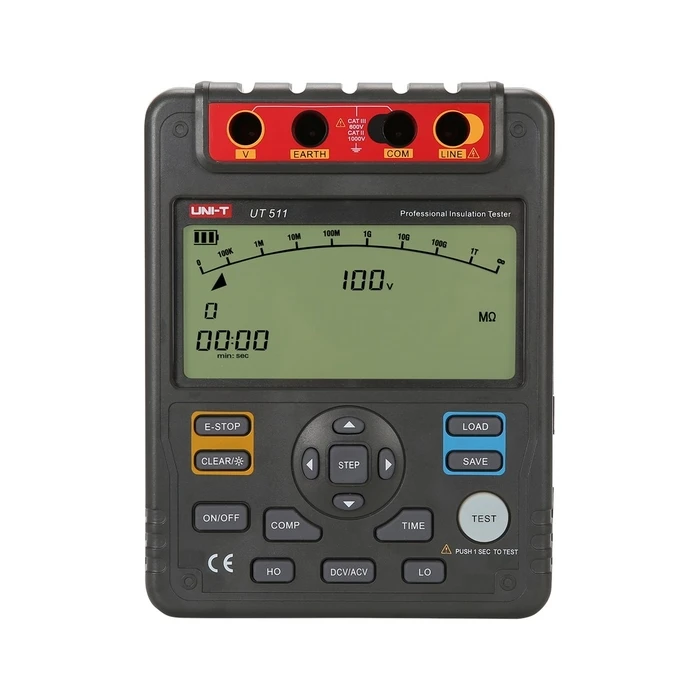

Μετρητής UT511 Insulation Resistance Meter
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Related Products
Παλμογράφος Fnirsi 3 σε 1 Πολύμετρο/Signal Generator 2C53T, Επαναφορτιζόμενος
The UNI-T UT511 Insulation Resistance Meter is a crucial instrument for measuring insulation resistance in electrical systems. This device is vital for maintaining safety and reliability by identifying potential insulation issues that could cause short circuits or other electrical hazards.
Key Features and Technical Specifications:
- Display and Measurement Range:
Display Count: 10,000 counts.
Measurement Range: 0.1 MΩ to 10 GΩ, depending on the selected test voltage. - Voltage Ranges:
Test Voltages: 100V, 250V, 500V, and 1000V.
DC Voltage: Up to 1000V with an accuracy of ±(2%+3).
AC Voltage: Up to 750V with an accuracy of ±(2%+3). - Insulation Resistance Measurement:
Precision: Accuracy of ±(3%+5) for each voltage range. - 100V: 0.1 MΩ to 500 MΩ
- 250V: 0.5 MΩ to 2 GΩ
- 500V: 1 MΩ to 4 GΩ
- 1000V: 2 MΩ to 10 GΩ
- Additional Functionalities:
Auto Range for selecting measurement range automatically.
Auto Power Off for battery conservation.
Low Battery Indication to alert users.
In conclusion, the UNI-T UT511 Insulation Resistance Meter is an indispensable tool for ensuring the integrity of electrical insulation.
-
Display Count10,000 counts
-
Measurement Range0.1 MΩ to 10 GΩ
-
Test Voltages100V, 250V, 500V, 1000V
-
DC VoltageUp to 1000V with ±(2%+3)
-
AC VoltageUp to 750V with ±(2%+3)
-
Measurement Accuracy±(3%+5)
-
100V Range0.1 MΩ to 500 MΩ
-
250V Range0.5 MΩ to 2 GΩ
-
500V Range1 MΩ to 4 GΩ
-
1000V Range2 MΩ to 10 GΩ
-
Power Source8 x 1.5V LR14 batteries
-
Display Dimensions123 mm x 58 mm
-
Product Net Weight1.2 kg
-
Product Size202 mm x 155 mm x 94 mm
-
ColorRed and Grey
Ratings
Description
The UNI-T UT511 Insulation Resistance Meter is a crucial instrument for measuring insulation resistance in electrical systems. This device is vital for maintaining safety and reliability by identifying potential insulation issues that could cause short circuits or other electrical hazards.
Key Features and Technical Specifications:
- Display and Measurement Range:
Display Count: 10,000 counts.
Measurement Range: 0.1 MΩ to 10 GΩ, depending on the selected test voltage. - Voltage Ranges:
Test Voltages: 100V, 250V, 500V, and 1000V.
DC Voltage: Up to 1000V with an accuracy of ±(2%+3).
AC Voltage: Up to 750V with an accuracy of ±(2%+3). - Insulation Resistance Measurement:
Precision: Accuracy of ±(3%+5) for each voltage range. - 100V: 0.1 MΩ to 500 MΩ
- 250V: 0.5 MΩ to 2 GΩ
- 500V: 1 MΩ to 4 GΩ
- 1000V: 2 MΩ to 10 GΩ
- Additional Functionalities:
Auto Range for selecting measurement range automatically.
Auto Power Off for battery conservation.
Low Battery Indication to alert users.
In conclusion, the UNI-T UT511 Insulation Resistance Meter is an indispensable tool for ensuring the integrity of electrical insulation.
Technical Specifications
-
Display Count10,000 counts
-
Measurement Range0.1 MΩ to 10 GΩ
-
Test Voltages100V, 250V, 500V, 1000V
-
DC VoltageUp to 1000V with ±(2%+3)
-
AC VoltageUp to 750V with ±(2%+3)
-
Measurement Accuracy±(3%+5)
-
100V Range0.1 MΩ to 500 MΩ
-
250V Range0.5 MΩ to 2 GΩ
-
500V Range1 MΩ to 4 GΩ
-
1000V Range2 MΩ to 10 GΩ
-
Power Source8 x 1.5V LR14 batteries
-
Display Dimensions123 mm x 58 mm
-
Product Net Weight1.2 kg
-
Product Size202 mm x 155 mm x 94 mm
-
ColorRed and Grey
