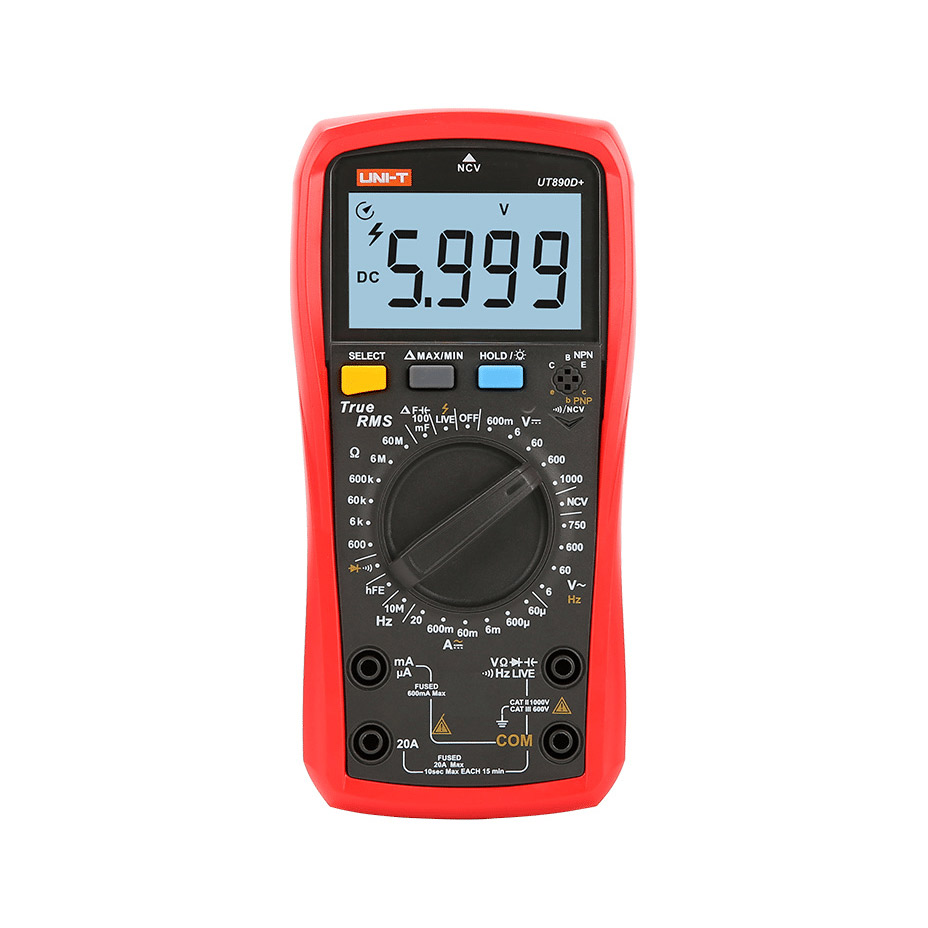

Πολύμετρο Uni-T UT890D+ True RMS με AC / DC / Αντίστασης

The Uni-T UT890D+ is a cutting-edge digital multimeter that caters to both professionals and hobbyists. This 6000-count True RMS multimeter delivers exceptional measurement capabilities while maintaining a compact design. With its large, backlit LCD display, users can easily read measurements in...

Πολύμετρο Uni-T UT890D+ True RMS με AC / DC / Αντίστασης

Name: Πολύμετρο Uni-T UT890D+ True RMS με AC / DC / Αντίστασης
Brand: Uni-T
SKU: 1143562834
Price: 36.71 EUR
Availability: OutOfStock

Product Code: 1143562834

Available in 1 - 3 days

36,71 €

1,15€ / month

εως 36 δόσεις με πιστωτική κάρτα

Quantity:

Add

Need Help? Fill in your details so we can call you immediately!

Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:

The Uni-T UT890D+ is a cutting-edge digital multimeter that caters to both professionals and hobbyists. This 6000-count True RMS multimeter delivers exceptional measurement capabilities while maintaining a compact design.

With its large, backlit LCD display, users can easily read measurements in varying light conditions. The multimeter provides an extensive range of functions, including:

AC/DC Voltage
Current Measurement
Resistance & Capacitance
Frequency Measurement

Moreover, the Uni-T UT890D+ includes advanced features such as:

Diode Testing
hFE Transistor Testing
Audible and Visual Continuity Checks

Key attributes include the manual range selection for precise adjustments, along with True RMS for accurate readings, irrespective of the waveform. Additionally, the device offers vital safety features, ensuring a reliable experience.

Display

6000-count, large backlit LCD
Voltage (DC)

600 mV / 6V / 60V / 600V / 1000V (±0.5%+2)
Voltage (AC)

6V / 60V / 600V / 750V (±0.8%+3)
Current (DC/AC)

60 µA / 600 µA / 6 mA / 60 mA / 600 mA / 20A
Resistance

600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ
Capacitance

60 nF / 600 nF / 6 µF / 60 µF / 100 mF (max), <12s response
Frequency

10 Hz ~ 10 kHz (±0.1%+5)
Diode Test / hFE Test

Yes
Continuity

Audible and visual indication
NCV (Non-Contact Volt.)

Yes, with sound and light
Safety

Fuse protection, high voltage protection
Power

2 × 1.5V (R03/AAA) batteries
Dimensions (L×W×H)

183 × 88 × 56 mm
Weight

346 g (excluding batteries)
Protection

Fuse blowing alarm, over-current alarm (≥20A), low battery indication
Other Functions

Data hold, MAX/MIN/REL, backlight, auto power-off, manual range

Ratings

How do you rate this product?

0/5

Description

With its large, backlit LCD display, users can easily read measurements in varying light conditions. The multimeter provides an extensive range of functions, including:

AC/DC Voltage
Current Measurement
Resistance & Capacitance
Frequency Measurement

Moreover, the Uni-T UT890D+ includes advanced features such as:

Diode Testing
hFE Transistor Testing
Audible and Visual Continuity Checks

Technical Specifications

Display

6000-count, large backlit LCD
Voltage (DC)

600 mV / 6V / 60V / 600V / 1000V (±0.5%+2)
Voltage (AC)

6V / 60V / 600V / 750V (±0.8%+3)
Current (DC/AC)

60 µA / 600 µA / 6 mA / 60 mA / 600 mA / 20A
Resistance

600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ
Capacitance

60 nF / 600 nF / 6 µF / 60 µF / 100 mF (max), <12s response
Frequency

10 Hz ~ 10 kHz (±0.1%+5)
Diode Test / hFE Test

Yes
Continuity

Audible and visual indication
NCV (Non-Contact Volt.)

Yes, with sound and light
Safety

Fuse protection, high voltage protection
Power

2 × 1.5V (R03/AAA) batteries
Dimensions (L×W×H)

183 × 88 × 56 mm
Weight

346 g (excluding batteries)
Protection

Fuse blowing alarm, over-current alarm (≥20A), low battery indication
Other Functions

Data hold, MAX/MIN/REL, backlight, auto power-off, manual range
