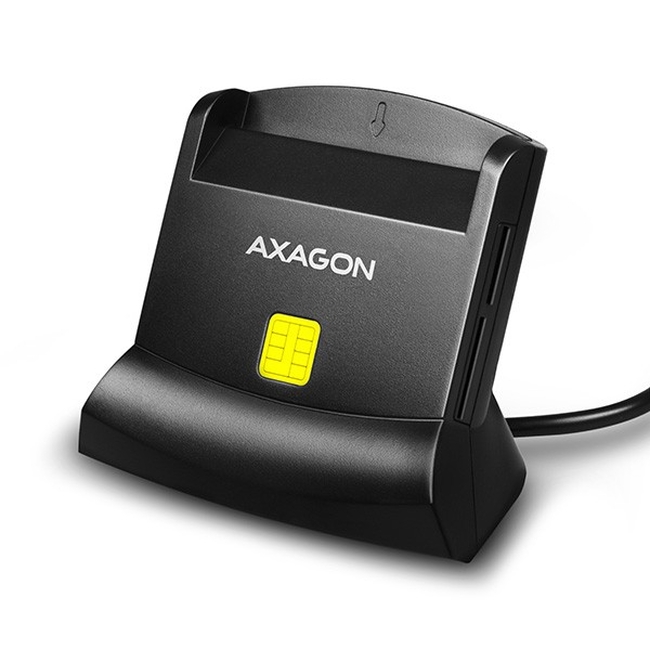

Desktop stand reader Smart card / ID card AXAGON CRE-SM2 with USB 2.0 interface include SD, microSD and SIM card slots.

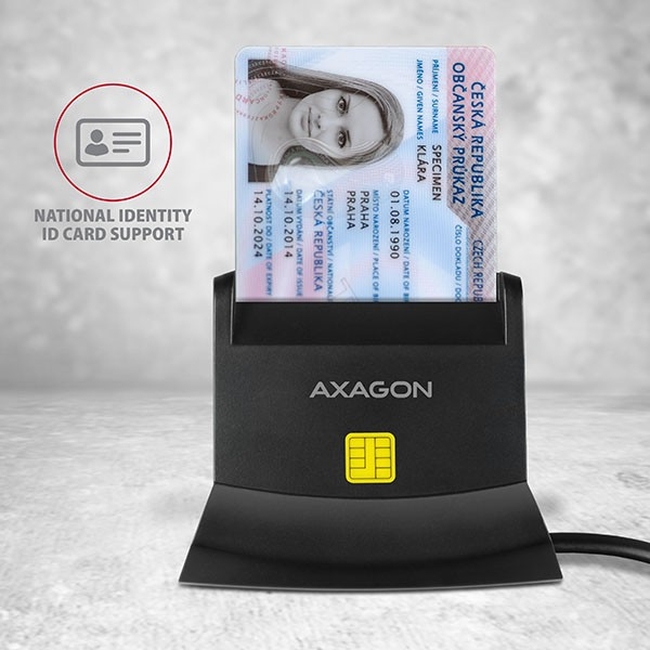

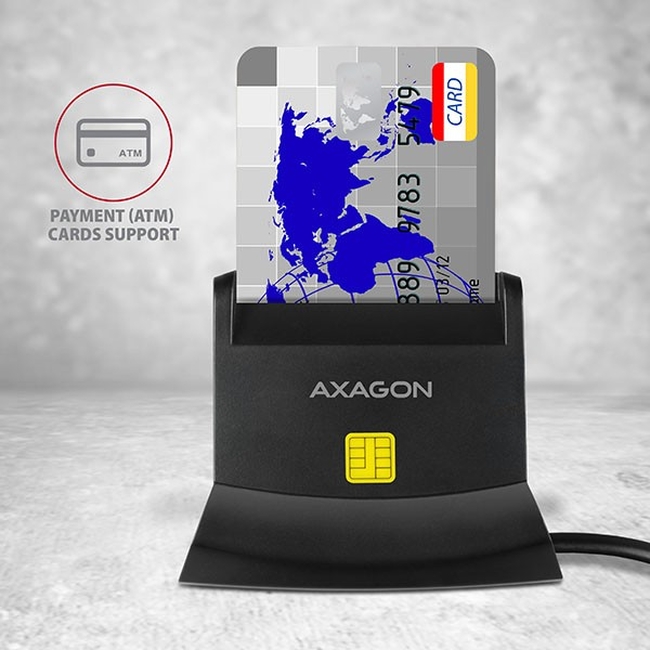

Card reader supports all common contact Smart cards formats, chip cards and other contact cards including payment cards or contact electronic ID cards *. The reader is compatible with most national applications for eID (electronic ID cards).

Thanks to the SIM card slot with SIM management software, SD slot, microSD slot, the reader can be used for backup and data transfer.

Compatibility with all common OS such as Windows, Linux and Mac OS allows wide range of applications. Sophisticated design, high-quality manufacturing, anti-slip pads and long cable ensure easy and trouble-free use.

Input:
USB 2.0 CCID protocol.
Backward compatible with USB 1.1.
Connection via USB 2.0 type A male connector.

Card reader:
Four slot reader supports the following formats:
Smart Card slot supports ATM / CAC / ID / IC / SIS contact cards,

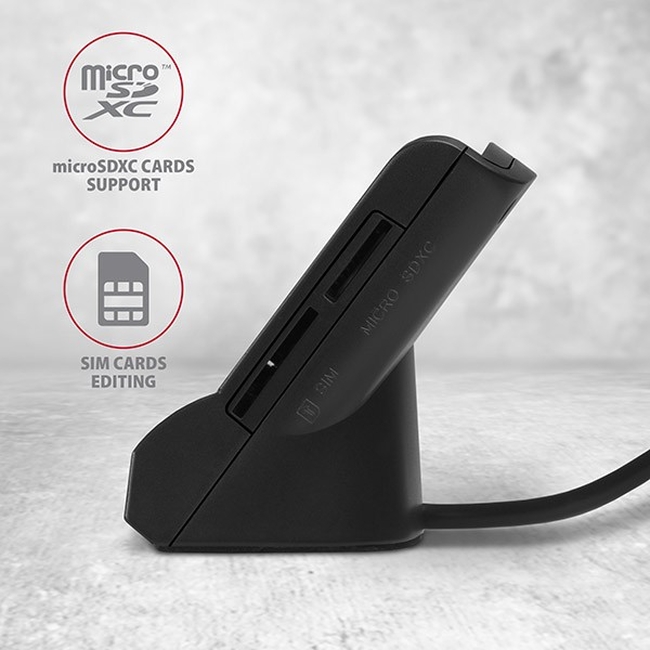

Micro SD slot supports microSD / microSDHC / microSDXC / TransFlash cards,

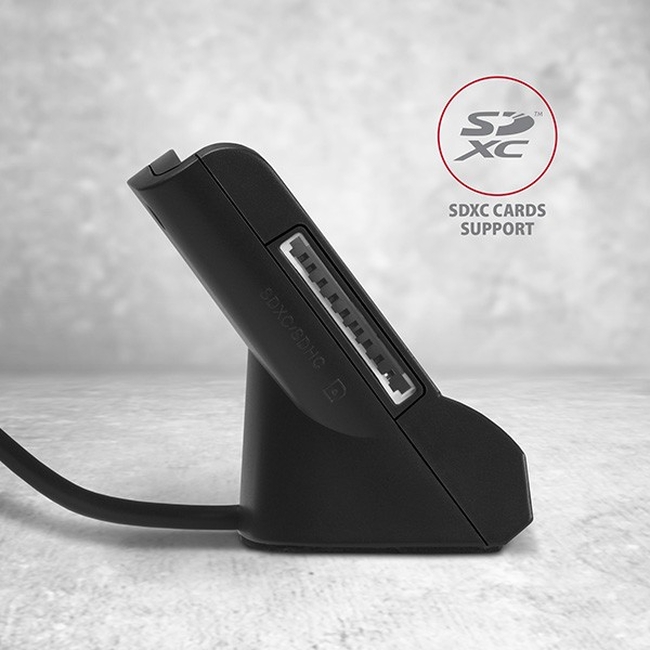

SD slot supports SecureDigital, SDHC, SDXC, MultiMedia Card, MMC 4.0, MMC Dual Voltage, MMC mobile, RS-MMC cards, miniSD, miniSDHC, MMC Micro cards with adapter,
SIM slot supports standard size SIM cards (microSIM and nanoSIM with adapter).

Smart Cards specification support:
Supports ISO 7816 Class A, B and C contact Smart cards (5V, 3V and 1.8V).
Supports ISO 7816, EMV 4.1 (EMV 2000 level 1) standards.
Supports protocols T 0 and T=1, I2C, SLE 4432/42 (S=10), SLE 4418/28 (S=9).
PC/SC 2.0 PC Smart Card support.
Microsoft Smart Card for Windows support.
Supports I2C cards SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041.
Microsoft WHQL USB Smart Card Reader compliant.
FIPS 201 standard compliant.
420 Kbps Smart Card interface speed (depends on card).

Memory Cards specification support:
SD 1.0/1.1 (SD - Secure Digital, up to 2GB) compliant.
SD 2.0 (SDHC - Secure Digital High Capacity, up to 32GB) compliant.
SD 3.0 (SDXC - Secure Digital eXtended Capacity, up to 2TB) compliant.
MMC and eMMC 3.x/4.0/4.1/4.2 compliant.

Other features:
Microsoft USB-CCID driver compatible.
Plug and Play support.
Simultaneous SIM and microSD slot usage.
Smart card insert detection.
SIMedit SW for edit and backup contacts download from Product Support tab on www.axagon.eu.
Reader power via USB bus (bus-power).
Green LED indicates computer USB port connection (steady).
Red LED indicates card insertion (steady) and data transfer (flashing).

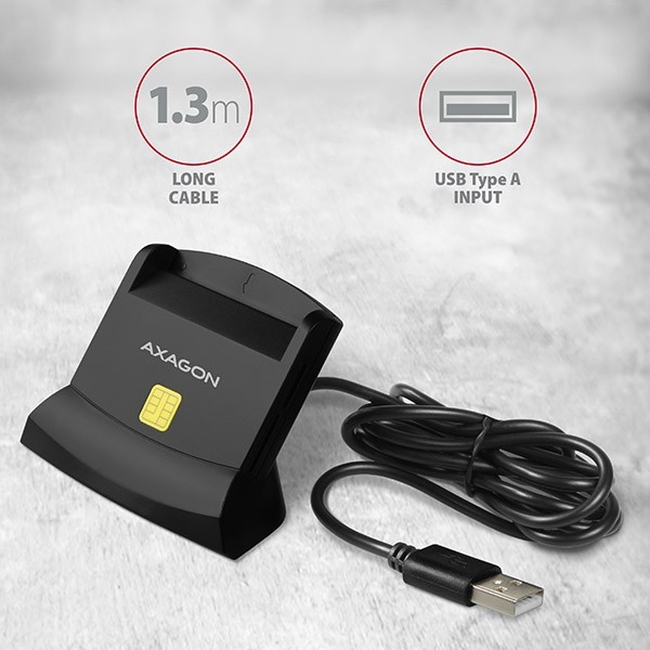

Dimensions 77 x 54 x 52 mm, cable length 130 cm.
Weight 91 g.

Supported operating systems:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (all 32- and 64-bit Windows OS versions supported), Mac OS X 10.x and later, Linux with 2.4.x kernel and later.

* Note: The reader only supports contact cards that have visible contacts on the surface. The card without contacts is therefore RFID and cannot be used in the reader.

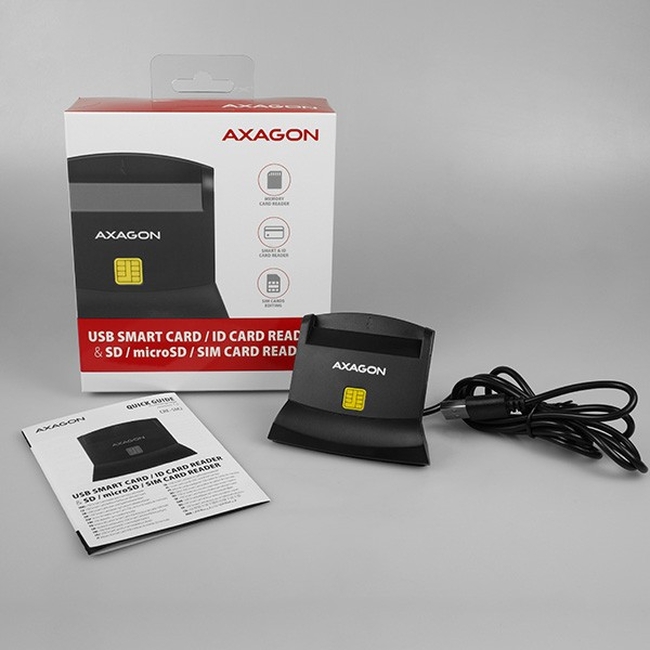

Package contains:
USB card reader with 1.3 m hardwired cable,
printed installation guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,

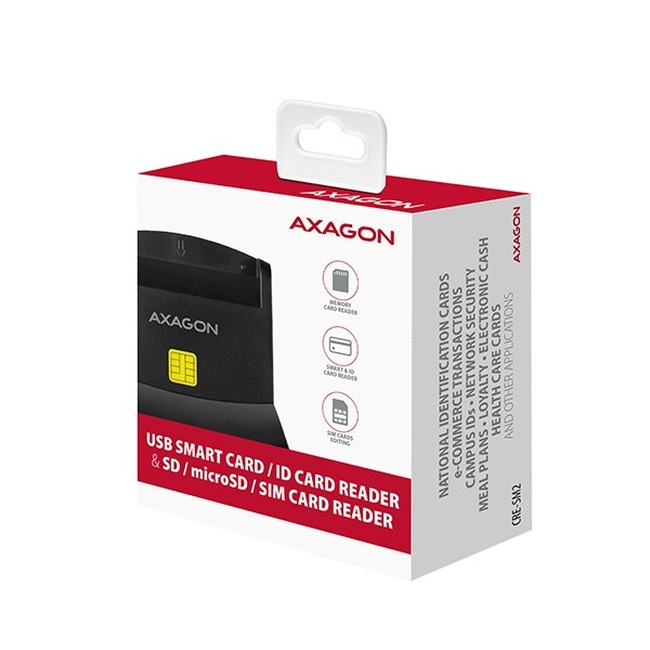

packed in a cardboard box.

Memory card: microSD

Memory card: TF

Memory card: MMC

Memory card: RS-MMC

Memory card: MMCmobile

Memory card: SD

Memory card: SM

Memory card: miniSD

Memory standard: SD

Memory standard: SDHC

Memory standard: SDXC

Smart Card reader: Yes

Interface: USB 2.0

I/O connectors: 1 x Smart-Slot

Supported operating systems: Windows 11

Supported operating systems: Mac OS

Supported operating systems: Windows

Supported operating systems: Windows XP

Supported operating systems: Windows Vista

Supported operating systems: Windows Server 2008

Supported operating systems: Windows 7

Supported operating systems: Windows Server 2012

Supported operating systems: Windows 8

Supported operating systems: Windows 8.1

Supported operating systems: Windows 10

Supported operating systems: Windows 10 Home

Supported operating systems: Windows 10 Pro

Supported operating systems: Windows 10 Mobile

Supported operating systems: Windows Server 2016

Supported operating systems: Windows Server 2019

Supported operating systems: Windows 11 Pro

Supported operating systems: Windows Server 2022

Supported operating systems: Android

Supported operating systems: Linux

Accessories included:

USB card reader with 1.3 m hardwired cable,
printed installation guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
packed in a cardboard box.

Color: Black

Dimensions:

77 x 54 x 52 mm
