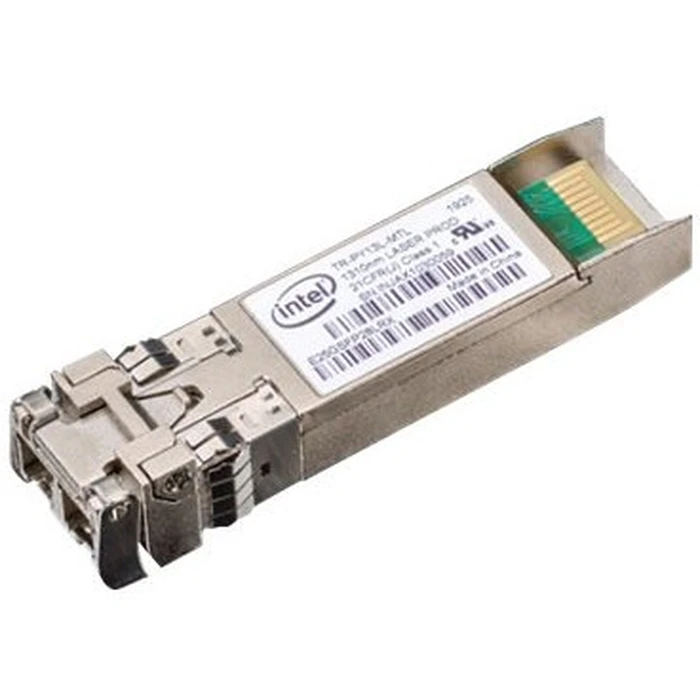

The Intel E25GSFP28LRX is a high-performance SFP28 optical transceiver module designed for long-range Ethernet connectivity.
This module is part of Intel's Ethernet SFP28 Optics series, known for exceptional performance and reliability in high-speed communications equipment.
It is a hot-pluggable SFP28 module supporting both 10GBase-LR and 25GBase-LR Ethernet standards. Designed for extended temperature ranges, this module is suitable for deployment in fluctuating temperature environments.
Key features include:
- High-Speed Connectivity: Supports 10GBase-LR and 25GBase-LR standards.
- Extended Temperature Range: Operates efficiently in extreme temperatures.
- Low Power Consumption: Optimized for high-density deployments.
- Reliability: Minimal signal degradation due to resistance to electrical interference.
- Security: Fiber optic design reduces vulnerability to network taps.
Its technical capabilities make it an excellent choice for high-speed communications equipment.
-
Average Output Power2.4 dBm (typical) for 50/125 μm MMF
-
Optical Center Wavelength (Transmitter)1310 nm
-
Spectral Width (RMS)1 nm
-
Dispersion Penalty2.7 dB
-
Optical Return Loss Tolerance20 dB
-
Optical Center Wavelength (Receiver)1260 nm to 1355 nm
-
Receiver Sensitivity (OMA)-12 dBm at 25 Gb/s
-
Receiver Optical Overload2 dBm
-
Receiver Reflectance-26 dB
-
Supply Voltage3.14 V to 3.46 V
-
Supply CurrentUp to 310 mA
-
Transmitter Input Differential Impedance100 Ω
-
Receiver Differential Data Output Impedance100 Ω
-
Case Operating Temperature0°C to 85°C
-
Storage Temperature-40°C to 85°C
-
Relative Humidity (non-condensing)Up to 85%
Ratings
Description
The Intel E25GSFP28LRX is a high-performance SFP28 optical transceiver module designed for long-range Ethernet connectivity.
This module is part of Intel's Ethernet SFP28 Optics series, known for exceptional performance and reliability in high-speed communications equipment.
It is a hot-pluggable SFP28 module supporting both 10GBase-LR and 25GBase-LR Ethernet standards. Designed for extended temperature ranges, this module is suitable for deployment in fluctuating temperature environments.
Key features include:
- High-Speed Connectivity: Supports 10GBase-LR and 25GBase-LR standards.
- Extended Temperature Range: Operates efficiently in extreme temperatures.
- Low Power Consumption: Optimized for high-density deployments.
- Reliability: Minimal signal degradation due to resistance to electrical interference.
- Security: Fiber optic design reduces vulnerability to network taps.
Its technical capabilities make it an excellent choice for high-speed communications equipment.
Technical Specifications
-
Average Output Power2.4 dBm (typical) for 50/125 μm MMF
-
Optical Center Wavelength (Transmitter)1310 nm
-
Spectral Width (RMS)1 nm
-
Dispersion Penalty2.7 dB
-
Optical Return Loss Tolerance20 dB
-
Optical Center Wavelength (Receiver)1260 nm to 1355 nm
-
Receiver Sensitivity (OMA)-12 dBm at 25 Gb/s
-
Receiver Optical Overload2 dBm
-
Receiver Reflectance-26 dB
-
Supply Voltage3.14 V to 3.46 V
-
Supply CurrentUp to 310 mA
-
Transmitter Input Differential Impedance100 Ω
-
Receiver Differential Data Output Impedance100 Ω
-
Case Operating Temperature0°C to 85°C
-
Storage Temperature-40°C to 85°C
-
Relative Humidity (non-condensing)Up to 85%
