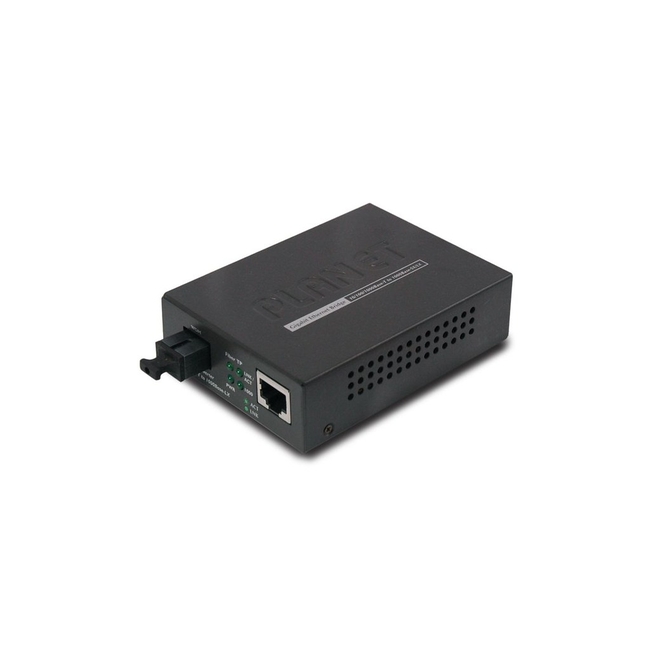

The Planet GT-806B15 is an advanced Gigabit media converter, specifically engineered for effective integration between copper-based Ethernet networks and single-mode fiber optic systems. This device allows for high-speed data transmission over extended distances, making it a perfect fit for enterprise networks, data centers, and industrial scenarios.
Key Features:
- Converts 10/100/1000Base-T Ethernet signals to 1000Base-LX (WDM) fiber optic signals.
- Supports single-mode fiber using a simplex SC connector and employs WDM technology.
- Transmission wavelengths: 1550nm (Tx), 1310nm (Rx).
- Maximum transmission distance of 15 km.
- Compatible with IEEE 802.3, 802.3u, 802.3ab, and 802.3z standards.
- Auto-negotiation functionality on the copper port (10/100/1000 Mbps).
- User-friendly installation with Auto-MDI/MDI-X on the RJ-45 port.
This media converter implements a store-and-forward switching mechanism for flawless data transmission, supporting IEEE 802.3x flow control in full duplex and back pressure in half duplex modes. It enhances network performance with non-blocking wire-speed forwarding and supports jumbo frames up to 9K bytes. Additionally, it features a DIP switch for enabling/disabling the Link Fault Pass-through (LFP) function and supports OAM operations, following TS-1000 and IEEE 802.3ah terminal mode standards.
-
Data Rate10/100/1000 Mbps (copper), 1000 Mbps (fiber)
-
Copper Interface1 x RJ-45 port (Auto-MDI/MDI-X)
-
Fiber Interface1 x SC simplex (WDM)
-
Fiber TypeSingle-mode
-
WavelengthTx: 1550nm, Rx: 1310nm
-
Max. Optical Launch Power-3 dBm
-
Min. Optical Launch Power-9 dBm
-
Max. Input Power-3 dBm
-
Min. Input Power-21 dBm
-
Optical Link Budget12 dB
-
Maximum Distance15 km
-
Power Consumption4.6 W (max)
-
Power InputDC 5V / 2A
-
Operating Temperature0°C to 50°C
-
Dimensions (W x D x H)26 x 70 x 97 mm
-
Weight (unit)0.2 kg
-
Weight (package incl. box and contents)0.6 kg
Ratings
Description
The Planet GT-806B15 is an advanced Gigabit media converter, specifically engineered for effective integration between copper-based Ethernet networks and single-mode fiber optic systems. This device allows for high-speed data transmission over extended distances, making it a perfect fit for enterprise networks, data centers, and industrial scenarios.
Key Features:
- Converts 10/100/1000Base-T Ethernet signals to 1000Base-LX (WDM) fiber optic signals.
- Supports single-mode fiber using a simplex SC connector and employs WDM technology.
- Transmission wavelengths: 1550nm (Tx), 1310nm (Rx).
- Maximum transmission distance of 15 km.
- Compatible with IEEE 802.3, 802.3u, 802.3ab, and 802.3z standards.
- Auto-negotiation functionality on the copper port (10/100/1000 Mbps).
- User-friendly installation with Auto-MDI/MDI-X on the RJ-45 port.
This media converter implements a store-and-forward switching mechanism for flawless data transmission, supporting IEEE 802.3x flow control in full duplex and back pressure in half duplex modes. It enhances network performance with non-blocking wire-speed forwarding and supports jumbo frames up to 9K bytes. Additionally, it features a DIP switch for enabling/disabling the Link Fault Pass-through (LFP) function and supports OAM operations, following TS-1000 and IEEE 802.3ah terminal mode standards.
Technical Specifications
-
Data Rate10/100/1000 Mbps (copper), 1000 Mbps (fiber)
-
Copper Interface1 x RJ-45 port (Auto-MDI/MDI-X)
-
Fiber Interface1 x SC simplex (WDM)
-
Fiber TypeSingle-mode
-
WavelengthTx: 1550nm, Rx: 1310nm
-
Max. Optical Launch Power-3 dBm
-
Min. Optical Launch Power-9 dBm
-
Max. Input Power-3 dBm
-
Min. Input Power-21 dBm
-
Optical Link Budget12 dB
-
Maximum Distance15 km
-
Power Consumption4.6 W (max)
-
Power InputDC 5V / 2A
-
Operating Temperature0°C to 50°C
-
Dimensions (W x D x H)26 x 70 x 97 mm
-
Weight (unit)0.2 kg
-
Weight (package incl. box and contents)0.6 kg
