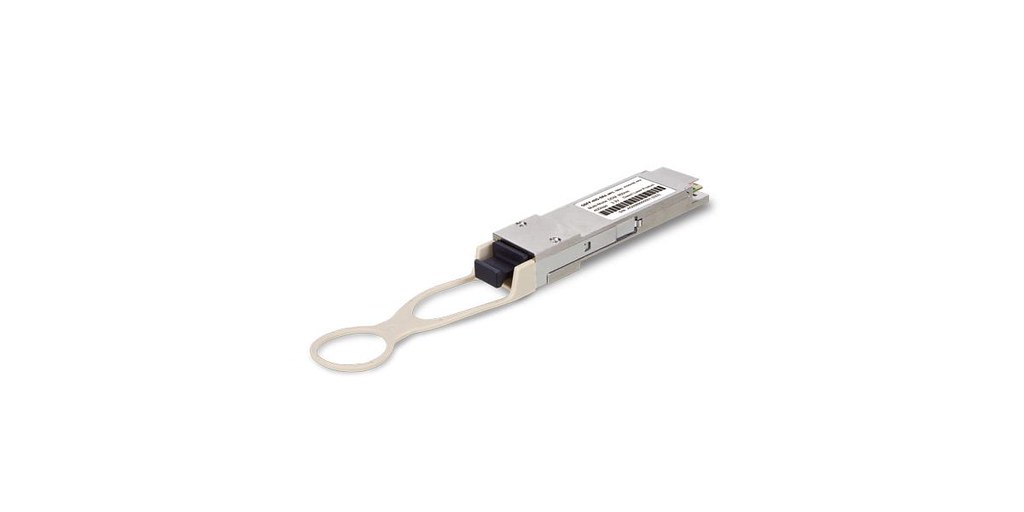

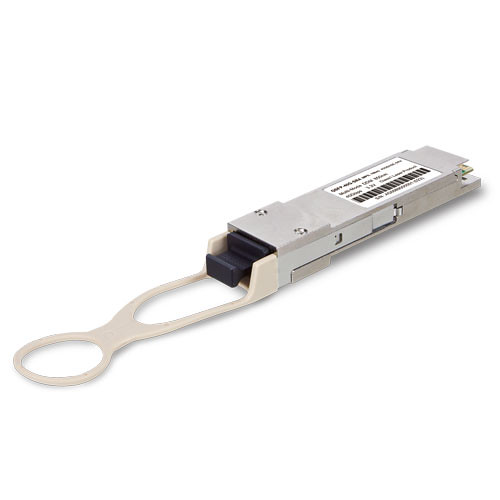

Transceiver Planet 40GBASE-SR4 QSFP+ Fiber
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
Πιστωτική Κάρτα
Buy now, pay later με tbi bank
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Transceiver TP-Link ISM311LM network Fiber optic 1.25 Mbit/s SFP 850 nm
Converter TP-Link Omada MC211CS-2 network media 1000 Mbit/s 1310 nm Single-mode Black
Converter TP-Link Omada MC212CS-2 network media 1000 Mbit/s 1550 nm Single-mode Black
Converter Planet 4-Port 1G Ethernet PoE to VDSL2 Extender IVC-234GPT
The QSFP-40G-SR4 is a high-performance 40 Gigabit Ethernet transceiver module tailored for enterprise and data center networking applications. This Quad Small Form-Factor Pluggable (QSFP+) module ensures reliable and high-density connectivity over multimode fiber optic cables.
Key features include:
- 40 Gbps Maximum Data Rate: Achieved via four independent full-duplex channels.
- IEEE Compliant: Fully adheres to the IEEE 802.3ba standards.
- Multimode Fiber Support: Optimized for various distances based on fiber type.
Moreover, the QSFP-40G-SR4 operates at a wavelength of 850 nm and features robust optical characteristics that ensure efficient performance:
- Transmits up to 150 meters on OM4 multimode fiber.
- Maximum transmit power output of -1.0 dBm.
With an MPO/MTP connector, installation is straightforward, minimizing downtime.
Additionally, this transceiver is equipped with Digital Diagnostic Monitoring (DDM) for real-time optical power status and is designed for energy efficiency, consuming less than 1.5W.
-
Data Rate40 Gbps
-
Wavelength850 nm
-
Transmitter Power-1.0 dBm
-
Receiver Power-2.4 dBm
-
Operating Temperature0°C to 70°C
-
Storage Temperature-40°C to 85°C
-
Maximum Power Dissipation<1.5W
Ratings
Description
The QSFP-40G-SR4 is a high-performance 40 Gigabit Ethernet transceiver module tailored for enterprise and data center networking applications. This Quad Small Form-Factor Pluggable (QSFP+) module ensures reliable and high-density connectivity over multimode fiber optic cables.
Key features include:
- 40 Gbps Maximum Data Rate: Achieved via four independent full-duplex channels.
- IEEE Compliant: Fully adheres to the IEEE 802.3ba standards.
- Multimode Fiber Support: Optimized for various distances based on fiber type.
Moreover, the QSFP-40G-SR4 operates at a wavelength of 850 nm and features robust optical characteristics that ensure efficient performance:
- Transmits up to 150 meters on OM4 multimode fiber.
- Maximum transmit power output of -1.0 dBm.
With an MPO/MTP connector, installation is straightforward, minimizing downtime.
Additionally, this transceiver is equipped with Digital Diagnostic Monitoring (DDM) for real-time optical power status and is designed for energy efficiency, consuming less than 1.5W.
Technical Specifications
-
Data Rate40 Gbps
-
Wavelength850 nm
-
Transmitter Power-1.0 dBm
-
Receiver Power-2.4 dBm
-
Operating Temperature0°C to 70°C
-
Storage Temperature-40°C to 85°C
-
Maximum Power Dissipation<1.5W
