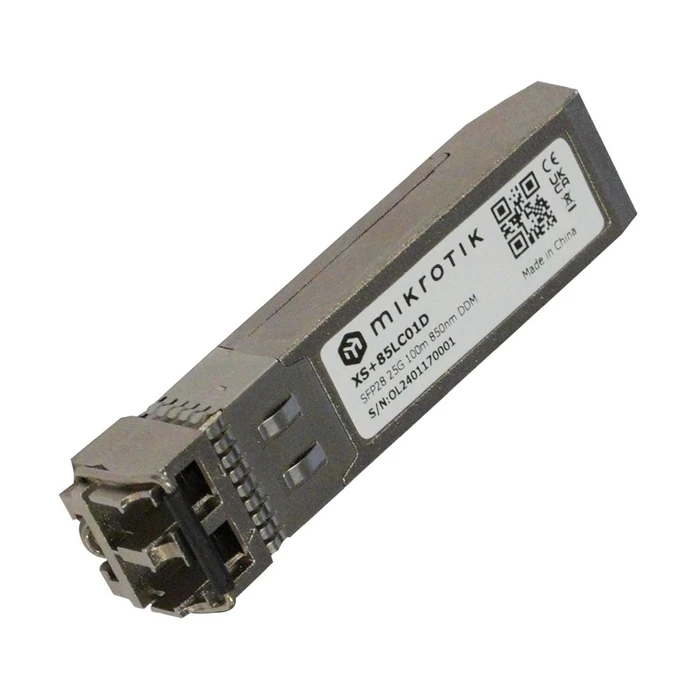

Transceiver Fiber optic module Mikrotik XS+85LC01D
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Transceiver TP-Link ISM311LM network Fiber optic 1.25 Mbit/s SFP 850 nm
Converter TP-Link Omada MC211CS-2 network media 1000 Mbit/s 1310 nm Single-mode Black
Converter TP-Link Omada MC212CS-2 network media 1000 Mbit/s 1550 nm Single-mode Black
Converter Planet 4-Port 1G Ethernet PoE to VDSL2 Extender IVC-234GPT
Converter Planet 10/100TX - 100Base-FX (SC) Single Mode Bridge Fiber
The MikroTik XS+85LC01D is a versatile fiber optic transceiver module designed for high-speed data transmission over short distances in multimode fiber networks. It supports multi-speed operations at 1.25 Gbps, 10 Gbps, and 25 Gbps, ensuring compatibility with SFP, SFP+, and SFP28 ports. This broad applicability is crucial for modern MikroTik equipment, including RB5009, CCR2116, netPower series, and CRS/CSS switches.
This module operates at a wavelength of 850 nm, optimized specifically for multimode fiber cables. It provides reliable connectivity up to 100 meters in full-duplex 25 Gigabit mode, making it perfect for data centers and enterprise networking needs where high-bandwidth links are essential.
The dual LC UPC optical connector allows for straightforward installation and compatibility with standard fiber patch cables. Additionally, its design protects against electromagnetic interference, ensuring clean signal transmission even in demanding environments.
Built to endure harsh conditions, the XS+85LC01D operates effectively within a broad temperature range of -40°C to +85°C. Its power consumption is approximately 1 watt, making it a highly efficient option for installations.
Key Features:
- Data Rates: 1.25G / 10G / 25G (SFP, SFP+, SFP28 compatible)
- Connector: Dual LC UPC optical connectors
- Wavelength: 850 nm optimized for multi-mode fibers
- Maximum Link Distance: 100 meters (full-duplex 25G)
- Operating Temperature Range: -40°C to +85°C
- Power Consumption: Approx. 1W
- Diagnostics: Integrated Digital Diagnostic Monitoring (DDM) for tracking optical power, supply voltage, temperature, and laser bias current
The module's built-in diagnostic functions allow network administrators to remotely monitor crucial indicators, enabling early detection of potential performance issues. This functionality facilitates informed decision-making regarding network management.
Overall, the MikroTik XS+85LC01D transceiver module is a cost-effective, high-performance solution for short-range fiber optic networking applications.
-
Data Rates1.25G / 10G / 25G (SFP, SFP+, SFP28 compatible)
-
ConnectorDual LC UPC optical connectors
-
Wavelength850 nm optimized for multi-mode fibers
-
Maximum Link Distance100 meters (full-duplex 25G)
-
Operating Temperature Range-40°C to +85°C
-
Power ConsumptionApprox. 1W
-
DiagnosticsIntegrated Digital Diagnostic Monitoring (DDM) for tracking optical power, supply voltage, temperature, and laser bias current
Ratings
Description
The MikroTik XS+85LC01D is a versatile fiber optic transceiver module designed for high-speed data transmission over short distances in multimode fiber networks. It supports multi-speed operations at 1.25 Gbps, 10 Gbps, and 25 Gbps, ensuring compatibility with SFP, SFP+, and SFP28 ports. This broad applicability is crucial for modern MikroTik equipment, including RB5009, CCR2116, netPower series, and CRS/CSS switches.
This module operates at a wavelength of 850 nm, optimized specifically for multimode fiber cables. It provides reliable connectivity up to 100 meters in full-duplex 25 Gigabit mode, making it perfect for data centers and enterprise networking needs where high-bandwidth links are essential.
The dual LC UPC optical connector allows for straightforward installation and compatibility with standard fiber patch cables. Additionally, its design protects against electromagnetic interference, ensuring clean signal transmission even in demanding environments.
Built to endure harsh conditions, the XS+85LC01D operates effectively within a broad temperature range of -40°C to +85°C. Its power consumption is approximately 1 watt, making it a highly efficient option for installations.
Key Features:
- Data Rates: 1.25G / 10G / 25G (SFP, SFP+, SFP28 compatible)
- Connector: Dual LC UPC optical connectors
- Wavelength: 850 nm optimized for multi-mode fibers
- Maximum Link Distance: 100 meters (full-duplex 25G)
- Operating Temperature Range: -40°C to +85°C
- Power Consumption: Approx. 1W
- Diagnostics: Integrated Digital Diagnostic Monitoring (DDM) for tracking optical power, supply voltage, temperature, and laser bias current
The module's built-in diagnostic functions allow network administrators to remotely monitor crucial indicators, enabling early detection of potential performance issues. This functionality facilitates informed decision-making regarding network management.
Overall, the MikroTik XS+85LC01D transceiver module is a cost-effective, high-performance solution for short-range fiber optic networking applications.
Technical Specifications
-
Data Rates1.25G / 10G / 25G (SFP, SFP+, SFP28 compatible)
-
ConnectorDual LC UPC optical connectors
-
Wavelength850 nm optimized for multi-mode fibers
-
Maximum Link Distance100 meters (full-duplex 25G)
-
Operating Temperature Range-40°C to +85°C
-
Power ConsumptionApprox. 1W
-
DiagnosticsIntegrated Digital Diagnostic Monitoring (DDM) for tracking optical power, supply voltage, temperature, and laser bias current
