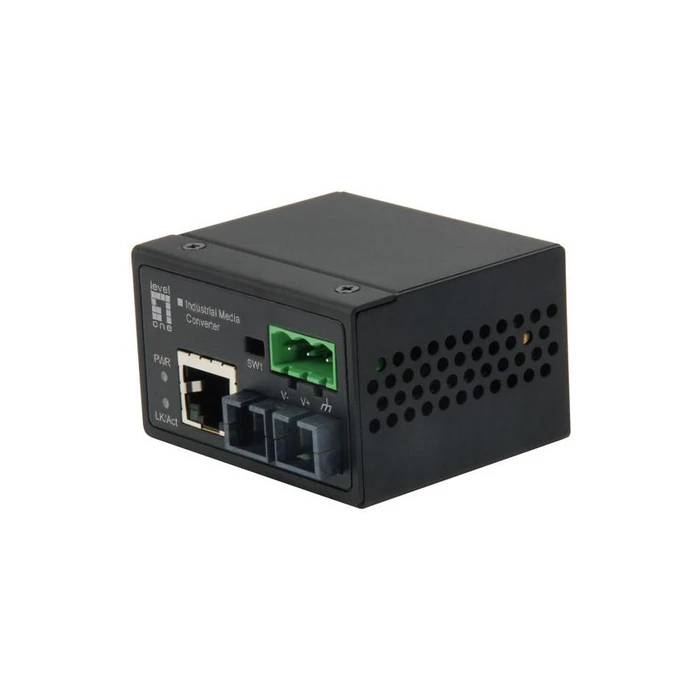

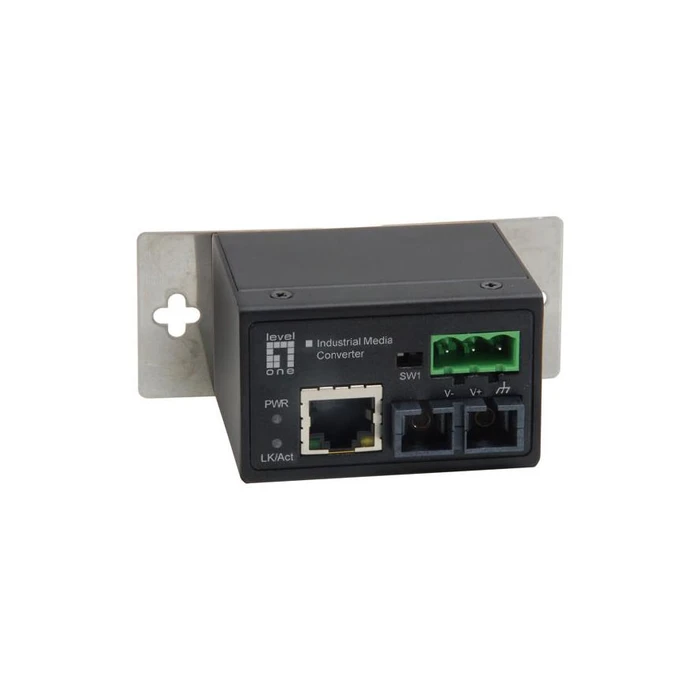

Μετατροπέας LevelOne Media IEC-4301 10/100TX to 100FX SC SM 30km

Technical Specifications

• Input voltage
  12 - 60 V.
• Power consumption (in operation)
  1.44 W
• Maximum data transfer rate
  100 Mbit / s
• Converter input interface
  10Base-T, 100Base-TX
• Converter output surface
  100Base-FX
• Network standard
  IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Ethernet interface type
  Fast ethernet
• Ethernet LAN data transfer rates
  10.100 Mbit / s
• Auto MDI / MDI-X
  yes
• Auto-negotiation function
  yes
• Store-and-forward
  yes
• Duplex system
  Full, half
• Transmission technology
  Wired
• Number of Ethernet LAN ports (RJ-45)
  1
• Number of fiber connections
  1
• Optical cable connector
  SC
• Maximum possible transmission distance
  30000 m
• Cable fashion structure
  Single mode
• Certification
  FCC Part 15 Subpart B Class A CE EN 55022 Class A FCC Part 15 Subpart B Class A, CE EN 55022 Class A EN61000-4-2 (ESD) Level 3 EN61000-4-3 (RS) Level 2 EN61000-4-4 (EFT) Level 2 EN61000-4-5 (Surge) Level 2 EN61000-4-6 (CS) Level 2 EN 61000-4-8 (PFMF) Level 1 UL508 (Pending) EN 50121-4 (Pending) IEC 60068- 2-27 IEC 60068-2-32 IEC 60068-2-6
• Built-in
  no
• LED indicators
  Activity, link, performance
• Country of origin
  Taiwan
• Housing material
  aluminum
• Product color
  black
• Sustainability certificates
  RoHS
• Quick installation guide
  yes
• Packaging width
  160 mm
• Packaging depth
  105 mm
• Packing height
  65 mm
• Package weight
  260 g
• Packaging type
  box
• Operating temperature range
  -40 - 75 ° C
• Storage temperature range
  -40 - 75 ° C
• Humidity in operation
  5 - 95%
• width
  59 mm
• depth
  49 mm
• height
  36 mm
• Weight
  90 g
