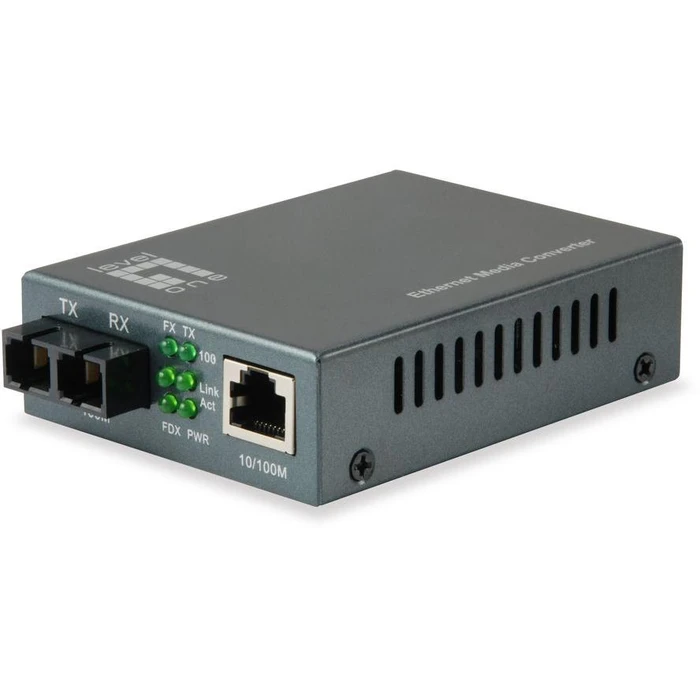

Μετατροπέας LevelOne Media FVT-1102 RJ45 to SC SM 2km

Technical Specifications

• Input voltage
  5 V
• Input current
  1 A
• Maximum data transfer rate
  100 Mbit / s
• Converter input interface
  10Base-T, 100Base-TX
• Converter output surface
  100Base-FX
• Network standard
  IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Ethernet interface type
  Fast ethernet
• Ethernet LAN data transfer rates
  10.100 Mbit / s
• Copper ethernet cabling technology
  10BASE-T, 100BASE-TX
• Ethernet cable cabling technology
  100BASE-FX
• Support data flow control
  yes
• Auto MDI / MDI-X
  yes
• Auto-negotiation function
  yes
• Store-and-forward
  yes
• Duplex system
  Full
• DC connection
  yes
• Transmission technology
  Wired
• Number of Ethernet LAN ports (RJ-45)
  1
• Number of fiber connections
  1
• Optical cable connector
  SC
• Mean Time Between Failures (MTBF)
  100,000 h
• Maximum possible transmission distance
  20000 m
• wavelength
  1310 nm
• Cable fashion structure
  Single mode
• Supported fiber cable diameters (core / cladding)
  50 / 125,62.5 / 125 µm
• Certification
  FCC, CE
• Built-in
  no
• Product color
  black
• Country of origin
  China
• LED indicators
  yes
• Sustainability certificates
  RoHS
• AC power adapter
  yes
• Quick installation guide
  yes
• Packaging width
  230 mm
• Packaging depth
  150 mm
• Packing height
  58 mm
• Package weight
  300 g
• Packaging type
  Clear packaging
• Operating temperature range
  0 - 50 ° C
• Storage temperature range
  -20 - 70 ° C
• Humidity in operation
  5 - 90%
• Width of the shipping box
  44 cm
• Length of the shipping box
  42 cm
• Height of the shipping box
  30.5 cm
• Shipping box weight
  32 kg
• Quantity per shipping box
  40 piece (s)
• width
  94 mm
• depth
  71 mm
• height
  26 mm
• Weight
  200 g
