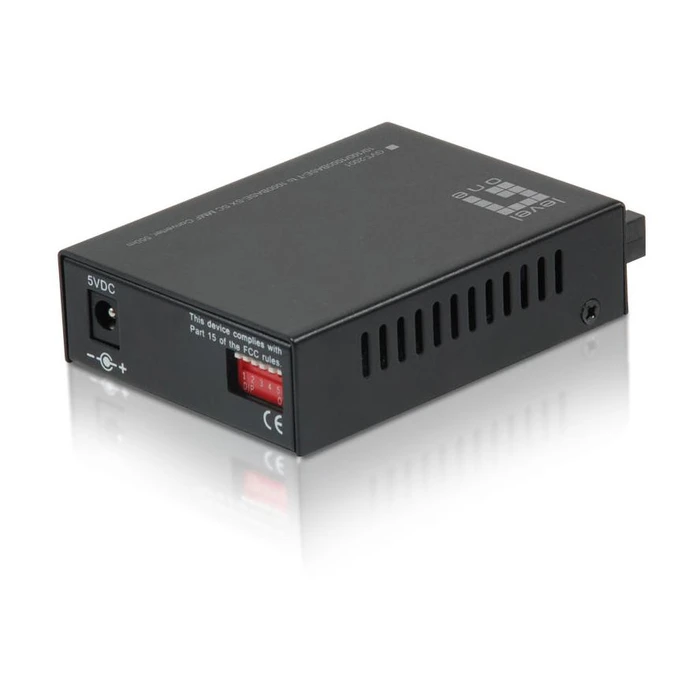

Μετατροπέας LevelOne GVT-2001 10/100/1000T to 1000SX SC MM 550m

Technical Specifications

• Input voltage
  5 - 12 V.
• Input current
  2 A
• Maximum data transfer rate
  1000 Mbit / s
• Converter input interface
  10Base-T, 100Base-TX, 1000Base-T
• Converter output surface
  1000Base-LX, 1000Base-SX
• Network standard
  IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Ethernet interface type
  Gigabit Ethernet
• Ethernet LAN data transfer rates
  10,100,1000 Mbit / s
• Jumbo frames support
  yes
• Jumbo frames
  9000
• Support data flow control
  yes
• Auto MDI / MDI-X
  yes
• Auto-negotiation function
  yes
• Store-and-forward
  yes
• Duplex system
  Full
• Link Loss Carry Forward (LLCF) supported
  yes
• Link Loss Return (LLR) supported
  yes
• supported cable types
  Cat5, Cat5e
• DC connection
  yes
• Transmission technology
  Wired
• Number of Ethernet LAN ports (RJ-45)
  1
• Number of fiber connections
  1
• Optical cable connector
  SC
• Maximum possible transmission distance
  550 m
• wavelength
  850 nm
• Cable fashion structure
  Multi mode
• Certification
  CE, FCC
• Built-in
  no
• Product color
  black
• LED indicators
  Activity, link, performance
• Country of origin
  China
• Sustainability certificates
  RoHS
• AC power adapter
  yes
• Quick installation guide
  yes
• Packaging width
  235 mm
• Packaging depth
  125 mm
• Packing height
  55 mm
• Package weight
  530 g
• Packaging type
  box
• Operating temperature range
  -40 - 75 ° C
• Storage temperature range
  -10 - 55 ° C
• Humidity in operation
  5 - 90%
• width
  94 mm
• depth
  70 mm
• height
  25 mm
• Weight
  420 g
