Μικροηλεκτρονικά Arduino Industrial Shield Portenta Vision Ethernet

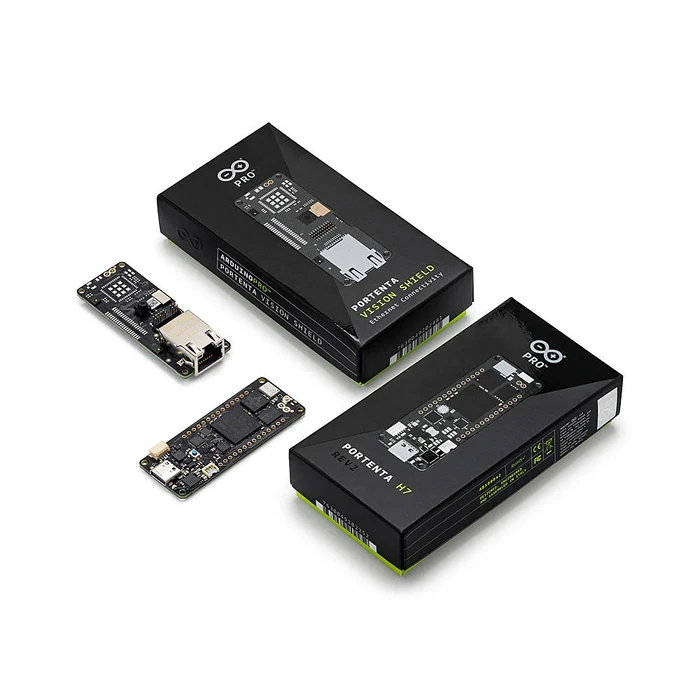

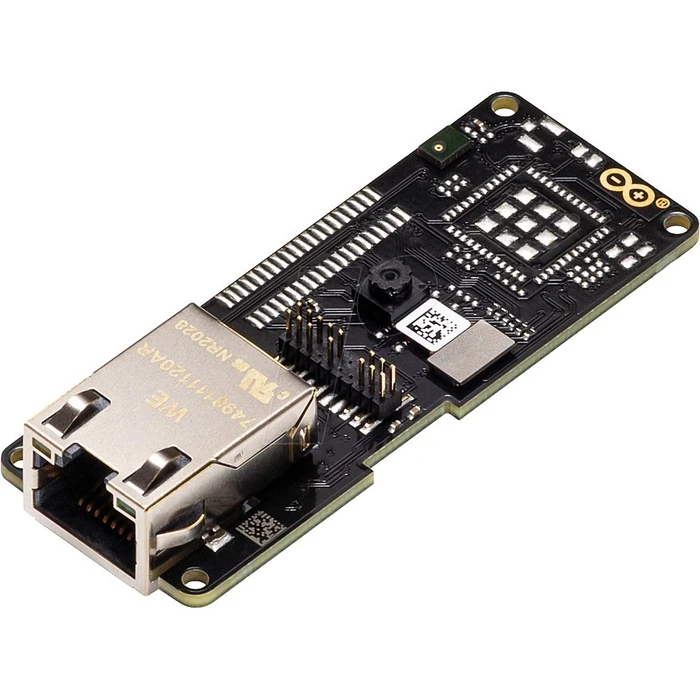

The Arduino Industrial Shield Portenta Vision Ethernet is a comprehensive hardware add-on designed specifically for the Portenta family of boards. This innovative shield transforms your Portenta board into a powerful tool for real-time image processing and edge computing, making it suitable for demanding industrial environments.
Key Features:
- Camera Module: Features a 320x320 pixels camera sensor with high sensitivity 3.6μ BrightSense technology.
- Ethernet Connectivity: Includes a 100 Mbps Ethernet connector for reliable high-bandwidth communication.
- Microphones: Two on-board directional microphones with a high signal-to-noise ratio for real-time sound analysis.
- Debugging and Configuration: JTAG connector for professional debugging and firmware updates.
- Storage and Data Management: MicroSD card slot for data storage and configuration file management.
- Power Efficiency: Operates with minimal power consumption, suitable for battery-powered applications.
- Operating Conditions: Can function in a temperature range from -40°C to 85°C.
Application Examples:
- Quality Control: Ideal for identifying defects in manufacturing.
- Predictive Maintenance: Enables maintenance based on visual representations of machinery.
- Surveillance: Provides capabilities in areas with low Wi-Fi and allows for alerts and snapshots.
The Arduino Industrial Shield Portenta Vision Ethernet is a versatile tool for industrial automation, integrating high-resolution imaging, sound detection, and robust connectivity features.
-
Camera Resolution320x320 pixels
-
Camera Sensor TypeHimax HM-01B0
-
Camera Technology3.6μ BrightSense
-
Motion DetectionProgrammable ROI and detection threshold
-
Ethernet Connector Speed100 Mbps
-
Directional Microphones2
-
Microphone ModelMP34DT05
-
Microphone Sensitivity64 dB
-
JTAG ConnectorYes
-
MicroSD Card SlotYes
-
Camera Power Consumption (QQVGA, 30 FPS)< 1.1 mW
-
Camera Power Consumption (QVGA, 30 FPS)< 2 mW
-
Operating Temperature Range-40°C to 85°C
Ratings
Description
The Arduino Industrial Shield Portenta Vision Ethernet is a comprehensive hardware add-on designed specifically for the Portenta family of boards. This innovative shield transforms your Portenta board into a powerful tool for real-time image processing and edge computing, making it suitable for demanding industrial environments.
Key Features:
- Camera Module: Features a 320x320 pixels camera sensor with high sensitivity 3.6μ BrightSense technology.
- Ethernet Connectivity: Includes a 100 Mbps Ethernet connector for reliable high-bandwidth communication.
- Microphones: Two on-board directional microphones with a high signal-to-noise ratio for real-time sound analysis.
- Debugging and Configuration: JTAG connector for professional debugging and firmware updates.
- Storage and Data Management: MicroSD card slot for data storage and configuration file management.
- Power Efficiency: Operates with minimal power consumption, suitable for battery-powered applications.
- Operating Conditions: Can function in a temperature range from -40°C to 85°C.
Application Examples:
- Quality Control: Ideal for identifying defects in manufacturing.
- Predictive Maintenance: Enables maintenance based on visual representations of machinery.
- Surveillance: Provides capabilities in areas with low Wi-Fi and allows for alerts and snapshots.
The Arduino Industrial Shield Portenta Vision Ethernet is a versatile tool for industrial automation, integrating high-resolution imaging, sound detection, and robust connectivity features.
Technical Specifications
-
Camera Resolution320x320 pixels
-
Camera Sensor TypeHimax HM-01B0
-
Camera Technology3.6μ BrightSense
-
Motion DetectionProgrammable ROI and detection threshold
-
Ethernet Connector Speed100 Mbps
-
Directional Microphones2
-
Microphone ModelMP34DT05
-
Microphone Sensitivity64 dB
-
JTAG ConnectorYes
-
MicroSD Card SlotYes
-
Camera Power Consumption (QQVGA, 30 FPS)< 1.1 mW
-
Camera Power Consumption (QVGA, 30 FPS)< 2 mW
-
Operating Temperature Range-40°C to 85°C
