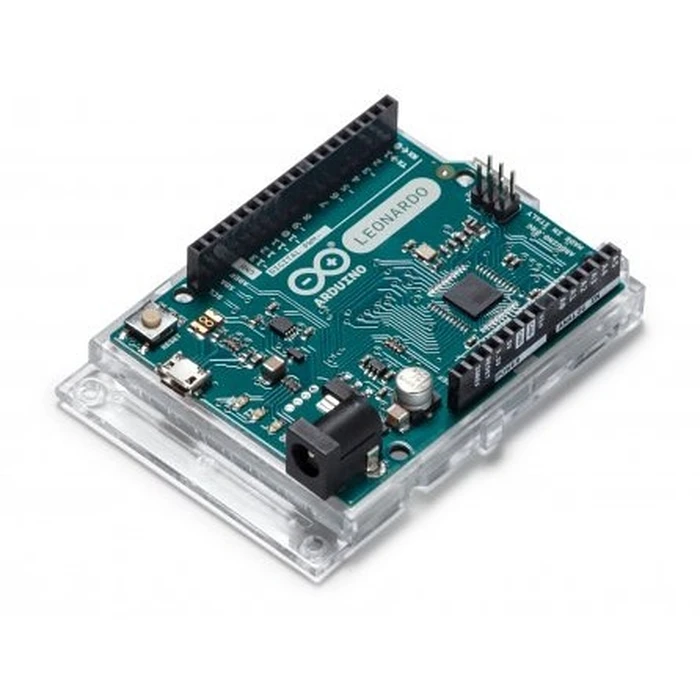

Μικροηλεκτρονικά Arduino Board Leonardo (with Headers)
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Μικροηλεκτρονικά Allnet 4duino IoT WLAN Display - ESP32 Modul with 4 lines Display
Μικροηλεκτρονικά Allnet 4duino Wireless Modul HC05 Bluetooth (Master and Slave)
Μικροηλεκτρονικά Arduino Baue Deinen eigenen UNO Kit - MAKE YOUR UNO KIT
Μικροηλεκτρονικά Arduino Board MKR Zero (I2S Bus & SD for sound & digital audio data)
Μικροηλεκτρονικά Arduino Industrial Shield Portenta Vision Ethernet
The ARDUINO Board Leonardo (with Headers) is a versatile and powerful microcontroller board designed for various applications, ranging from simple prototypes to complex projects.
This board is based on the ATmega32u4 microcontroller, which integrates built-in USB communication capabilities, setting it apart from other Arduino models.
With a compact design measuring 68.6 mm x 53.3 mm and weighing approximately 20 grams, it is both lightweight and easy to integrate into multiple projects.
Key Features:
- Microcontroller: ATmega32u4 with a clock speed of 16 MHz
- Memory: 32 KB of flash memory, 2.5 KB of SRAM, and 1 KB of EEPROM
- Operating Voltage: 7 V to 12 V (max 20 V)
- Digital I/O Pins: 20 pins with 7 PWM outputs
- Analog Inputs: 12 analog pins with 10-bit resolution
- Serial Interfaces: Supports UART, SPI, I2C
- Power Supply: Standard 6-pin ISP header and DC connector
This board is user-friendly, featuring clear labeling and a well-organized layout for easy connection of components and shields. It also includes a built-in LED that can be controlled programmatically, providing a helpful visual status indicator.
The ARDUINO Board Leonardo is ideal for beginners and experienced developers alike, offering reliable performance for any project.
-
MicrocontrollerATmega32u4
-
Clock Speed16 MHz
-
Flash Memory32 KB
-
SRAM2.5 KB
-
EEPROM1 KB
-
Operating Voltage7 V to 12 V
-
Max Input Voltage20 V
-
Digital I/O Pins20
-
PWM Outputs7
-
Analog Input Pins12
-
Analog Resolution10-bit
-
Supported InterfacesUART, SPI, I2C
-
Dimensions68.6 mm x 53.3 mm
-
Weight20 grams
-
Power Supply6-pin ISP header and DC connector (5.5 x 2.1 mm)
Ratings
Description
The ARDUINO Board Leonardo (with Headers) is a versatile and powerful microcontroller board designed for various applications, ranging from simple prototypes to complex projects.
This board is based on the ATmega32u4 microcontroller, which integrates built-in USB communication capabilities, setting it apart from other Arduino models.
With a compact design measuring 68.6 mm x 53.3 mm and weighing approximately 20 grams, it is both lightweight and easy to integrate into multiple projects.
Key Features:
- Microcontroller: ATmega32u4 with a clock speed of 16 MHz
- Memory: 32 KB of flash memory, 2.5 KB of SRAM, and 1 KB of EEPROM
- Operating Voltage: 7 V to 12 V (max 20 V)
- Digital I/O Pins: 20 pins with 7 PWM outputs
- Analog Inputs: 12 analog pins with 10-bit resolution
- Serial Interfaces: Supports UART, SPI, I2C
- Power Supply: Standard 6-pin ISP header and DC connector
This board is user-friendly, featuring clear labeling and a well-organized layout for easy connection of components and shields. It also includes a built-in LED that can be controlled programmatically, providing a helpful visual status indicator.
The ARDUINO Board Leonardo is ideal for beginners and experienced developers alike, offering reliable performance for any project.
Technical Specifications
-
MicrocontrollerATmega32u4
-
Clock Speed16 MHz
-
Flash Memory32 KB
-
SRAM2.5 KB
-
EEPROM1 KB
-
Operating Voltage7 V to 12 V
-
Max Input Voltage20 V
-
Digital I/O Pins20
-
PWM Outputs7
-
Analog Input Pins12
-
Analog Resolution10-bit
-
Supported InterfacesUART, SPI, I2C
-
Dimensions68.6 mm x 53.3 mm
-
Weight20 grams
-
Power Supply6-pin ISP header and DC connector (5.5 x 2.1 mm)
