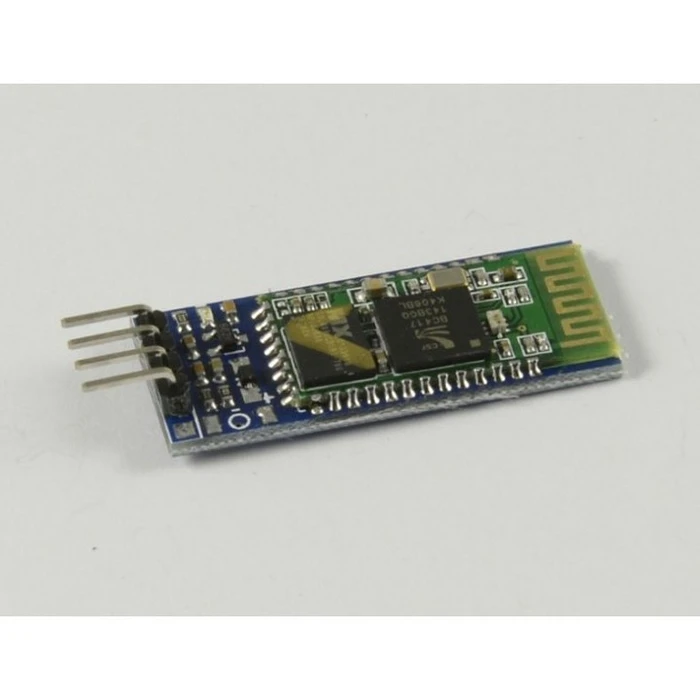

Μικροηλεκτρονικά Allnet 4duino Wireless Modul HC05 Bluetooth (Master and Slave)

The ALLNET 4duino Wireless Modul HC-05 Bluetooth is a versatile Bluetooth module designed for both master and slave configurations, making it suitable for a wide range of applications. This compact, user-friendly module enables wireless serial communication without the need for complex Bluetooth...

Μικροηλεκτρονικά Allnet 4duino Wireless Modul HC05 Bluetooth (Master and Slave)

Name: Μικροηλεκτρονικά Allnet 4duino Wireless Modul HC05 Bluetooth (Master and Slave)
Brand: Allnet
SKU: 1173522727
Price: 46.02 EUR
Availability: OutOfStock

Product Code: 1173522727

Available in 4 - 10 days

46,02 €

1,44€ / month

εως 36 δόσεις με πιστωτική κάρτα

Quantity:

Add

Need Help? Fill in your details so we can call you immediately!

See the monthly installment options.

4 installments 0% επιτόκιο, 20€ έως 300€

3 to 60 installments 300€ έως 100.00€

The ALLNET 4duino Wireless Modul HC-05 Bluetooth is a versatile Bluetooth module designed for both master and slave configurations, making it suitable for a wide range of applications.

This compact, user-friendly module enables wireless serial communication without the need for complex Bluetooth protocol knowledge. It effectively replaces traditional wired serial port connections, offering a convenient solution for various projects.

Key Features

Bluetooth Version: Fully compliant with Bluetooth v2.0+EDR, supporting enhanced data rate transmission.
Operating Voltage: 3.1V to 4.2V, suitable for diverse power supply arrangements.
Current Consumption: 30-40mA during pairing; 8mA during communication.
Communication Range: Up to 10 meters, facilitating reliable connectivity.
Interface and Control: Includes essential interfaces like VCC, GND, TXD, RXD, and a Bluetooth state pin.
AT Commands: Supports a range of AT commands for configuration.
Compatibility: Works seamlessly with microcontrollers and PCs, enhancing integration.

This module allows for flexible integration into various applications like wireless data transfer and monitoring.

EAN Code

4038816024732
MPN

ALL-B-58B36
Dimensions

20mm x 15mm x 10mm
Bluetooth Class

Class 2
Modulation Modes

2Mbps and 3Mbps
Sensitivity

-80dBm
Storage Temperature

-40°C to +85°C
Operating Temperature

-25°C to +75°C
Operating Voltage

3.1V to 4.2V
Current Consumption - Pairing

30-40mA
Current Consumption - Communication

8mA

Ratings

How do you rate this product?

0/5

Description

The ALLNET 4duino Wireless Modul HC-05 Bluetooth is a versatile Bluetooth module designed for both master and slave configurations, making it suitable for a wide range of applications.

Key Features

Bluetooth Version: Fully compliant with Bluetooth v2.0+EDR, supporting enhanced data rate transmission.
Operating Voltage: 3.1V to 4.2V, suitable for diverse power supply arrangements.
Current Consumption: 30-40mA during pairing; 8mA during communication.
Communication Range: Up to 10 meters, facilitating reliable connectivity.
Interface and Control: Includes essential interfaces like VCC, GND, TXD, RXD, and a Bluetooth state pin.
AT Commands: Supports a range of AT commands for configuration.
Compatibility: Works seamlessly with microcontrollers and PCs, enhancing integration.

This module allows for flexible integration into various applications like wireless data transfer and monitoring.

Technical Specifications

EAN Code

4038816024732
MPN

ALL-B-58B36
Dimensions

20mm x 15mm x 10mm
Bluetooth Class

Class 2
Modulation Modes

2Mbps and 3Mbps
Sensitivity

-80dBm
Storage Temperature

-40°C to +85°C
Operating Temperature

-25°C to +75°C
Operating Voltage

3.1V to 4.2V
Current Consumption - Pairing

30-40mA
Current Consumption - Communication

8mA
