Ενδιάμεσος Διακόπτης ABB SA/S2.16.2.2 2fach 16 A REG 2CDG110261R0011

The ABB SA/S2.16.2.2 Schaltaktor 2fach 16 A REG is a state-of-the-art KNX-compatible switch actuator crafted for modern home automation needs. With this robust device, users can effortlessly control electrical loads of up to 16 A through the highly efficient ABB i-bus® system.Key Features:2...

Ενδιάμεσος Διακόπτης ABB SA/S2.16.2.2 2fach 16 A REG 2CDG110261R0011

Name: Ενδιάμεσος Διακόπτης ABB SA/S2.16.2.2 2fach 16 A REG 2CDG110261R0011
Brand: ABB
SKU: 1173622891
Price: 269.04 EUR
Availability: OutOfStock

Product Code: 1173622891

Available in 4 - 10 days

269,04 €

8,40€ / month

εως 36 δόσεις με πιστωτική κάρτα

Quantity:

Add

Need Help? Fill in your details so we can call you immediately!

Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:

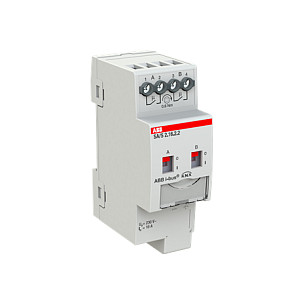

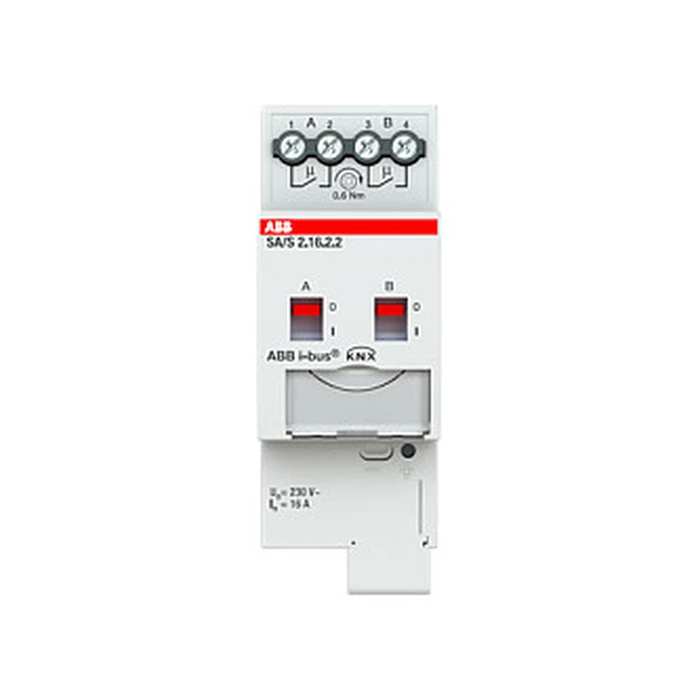

The ABB SA/S2.16.2.2 Schaltaktor 2fach 16 A REG is a state-of-the-art KNX-compatible switch actuator crafted for modern home automation needs. With this robust device, users can effortlessly control electrical loads of up to 16 A through the highly efficient ABB i-bus® system.

Key Features:

2 independent potential-free contacts for versatile applications.
Easy manual operation allows for immediate feedback.
LED status display for real-time monitoring.

Awash with numerous technical specifications, this MDRC (Multi-DIN-Rail-Compact) device is designed to fit snugly on a top-hat rail (REG), thereby ensuring both reliability and convenience. The following specs underscore its capabilities:

Property	Specification
Number of switching outputs	2 (independent, floating contacts)
Max. rated current	16 A (AC1, resistive loads)
Max. switching capacity	2500 W (230 V operating voltage)
Max. LED switching capacity	400 W
Bus system	KNX (with removable bus coupling module)

Number of switching outputs

2 (independent, floating contacts)
Max. rated current

16 A (AC1, resistive loads)
Max. switching capacity

2500 W (230 V operating voltage)
Max. LED switching capacity

400 W
Bus system

KNX (with removable bus coupling module)
Mounting type

Top-hat rail (REG), 2 pitch units wide
Min. device box depth

64.5 mm
Protection class

IP20
On-site/manual operation

Yes
LED display

Yes
Different phases connectable

Yes
Modular expansion

Yes
Suitable for C-load

No

Ratings

How do you rate this product?

0/5

Description

Key Features:

2 independent potential-free contacts for versatile applications.
Easy manual operation allows for immediate feedback.
LED status display for real-time monitoring.

Property	Specification
Number of switching outputs	2 (independent, floating contacts)
Max. rated current	16 A (AC1, resistive loads)
Max. switching capacity	2500 W (230 V operating voltage)
Max. LED switching capacity	400 W
Bus system	KNX (with removable bus coupling module)

Technical Specifications

Number of switching outputs

2 (independent, floating contacts)
Max. rated current

16 A (AC1, resistive loads)
Max. switching capacity

2500 W (230 V operating voltage)
Max. LED switching capacity

400 W
Bus system

KNX (with removable bus coupling module)
Mounting type

Top-hat rail (REG), 2 pitch units wide
Min. device box depth

64.5 mm
Protection class

IP20
On-site/manual operation

Yes
LED display

Yes
Different phases connectable

Yes
Modular expansion

Yes
Suitable for C-load

No
