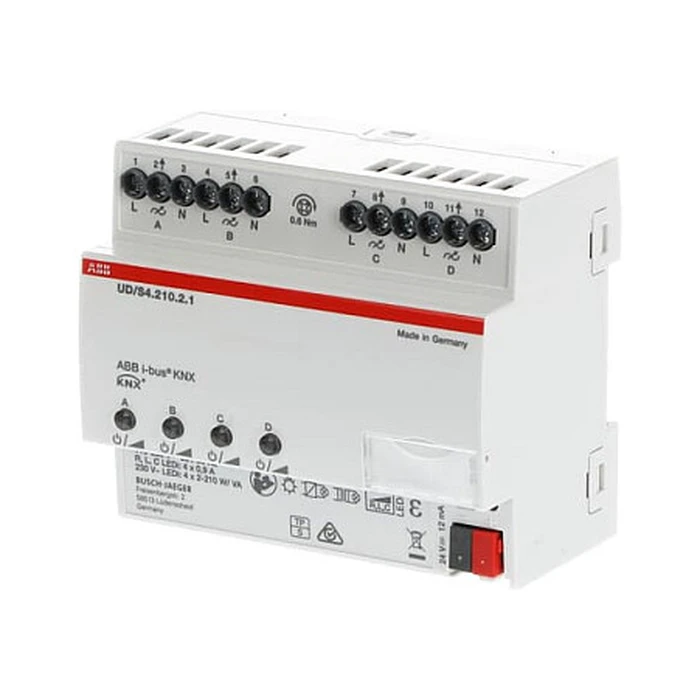

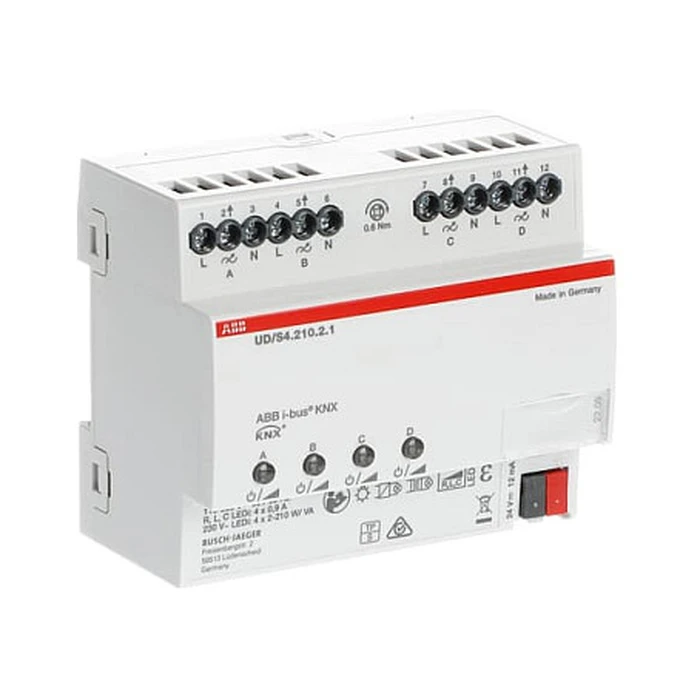

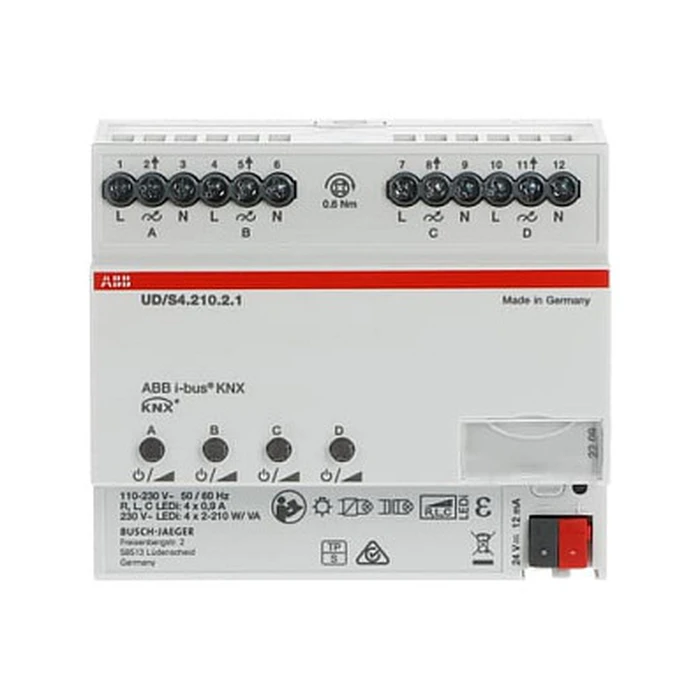

Ενδιάμεσος Διακόπτης ABB UD/S4.210.2.1 LED-Dimmer 4 x 210 W/VA. Busch KNX REG-Univer

The UD/S4.210.2.1 is a versatile multichannel universal dimming actuator designed specifically for optimizing the dimming of retrofit LED lamps. This advanced KNX-integrated device serves as a 4-channel dimming module that enables the simultaneous control of various lighting loads. Key features of...

Ενδιάμεσος Διακόπτης ABB UD/S4.210.2.1 LED-Dimmer 4 x 210 W/VA. Busch KNX REG-Univer

Name: Ενδιάμεσος Διακόπτης ABB UD/S4.210.2.1 LED-Dimmer 4 x 210 W/VA. Busch KNX REG-Univer
Brand: ABB
SKU: 1173622900
Price: 564.34 EUR
Availability: OutOfStock

Product Code: 1173622900

Available in 4 - 10 days

564,34 €

17,62€ / month

εως 36 δόσεις με πιστωτική κάρτα

Quantity:

Add

Need Help? Fill in your details so we can call you immediately!

Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:

The UD/S4.210.2.1 is a versatile multichannel universal dimming actuator designed specifically for optimizing the dimming of retrofit LED lamps. This advanced KNX-integrated device serves as a 4-channel dimming module that enables the simultaneous control of various lighting loads.

Key features of the UD/S4.210.2.1 include:

Compatibility with different types of lighting including incandescent, halogen, and dimmable LED lamps.
Automatic load detection for enhanced user convenience.
The ability to connect outputs in parallel to increase output power.

This device supports a wide range of light types, ensuring versatility:

Retrofit LED lamps
Incandescent lamps
Low-voltage halogen lights
230V halogen lamps
Dimmable energy-saving halogen lamps

Designed with user-friendliness in mind, the UD/S4.210.2.1 features a simple installation process on a DIN rail, making it suitable for various building projects.

Product Type

LED-Dim actuator 4x210W
EAN Code

4011395251867
Order Code (MPN)

2CKA006197A0047
Bus System

KNX (TP)
Construction

DIN rail-mounted
Degree of Protection

IP20
Operating Temperature

-5 to 45
Rated Voltage

110-230V AC/DC
Number of Outputs

4
Minimum Load

2
Incandescent and halogen lamps

4 × 210 W/VA to 1 × 600 W/VA
Dimmable LED lamps (trailing edge control)

4 × 210 W/VA to 1 × 600 W/VA
Dimmable LED lamps (leading edge control)

4 × 80 W/VA to 1 × 200 W/VA
Inductive L-transformers with LED/low-voltage halogen

4 × 210 W/VA to 1 × 600 W/VA

Ratings

How do you rate this product?

0/5

Description

Key features of the UD/S4.210.2.1 include:

Compatibility with different types of lighting including incandescent, halogen, and dimmable LED lamps.
Automatic load detection for enhanced user convenience.
The ability to connect outputs in parallel to increase output power.

This device supports a wide range of light types, ensuring versatility:

Retrofit LED lamps
Incandescent lamps
Low-voltage halogen lights
230V halogen lamps
Dimmable energy-saving halogen lamps

Designed with user-friendliness in mind, the UD/S4.210.2.1 features a simple installation process on a DIN rail, making it suitable for various building projects.

Technical Specifications

Product Type

LED-Dim actuator 4x210W
EAN Code

4011395251867
Order Code (MPN)

2CKA006197A0047
Bus System

KNX (TP)
Construction

DIN rail-mounted
Degree of Protection

IP20
Operating Temperature

-5 to 45
Rated Voltage

110-230V AC/DC
Number of Outputs

4
Minimum Load

2
Incandescent and halogen lamps

4 × 210 W/VA to 1 × 600 W/VA
Dimmable LED lamps (trailing edge control)

4 × 210 W/VA to 1 × 600 W/VA
Dimmable LED lamps (leading edge control)

4 × 80 W/VA to 1 × 200 W/VA
Inductive L-transformers with LED/low-voltage halogen

4 × 210 W/VA to 1 × 600 W/VA
