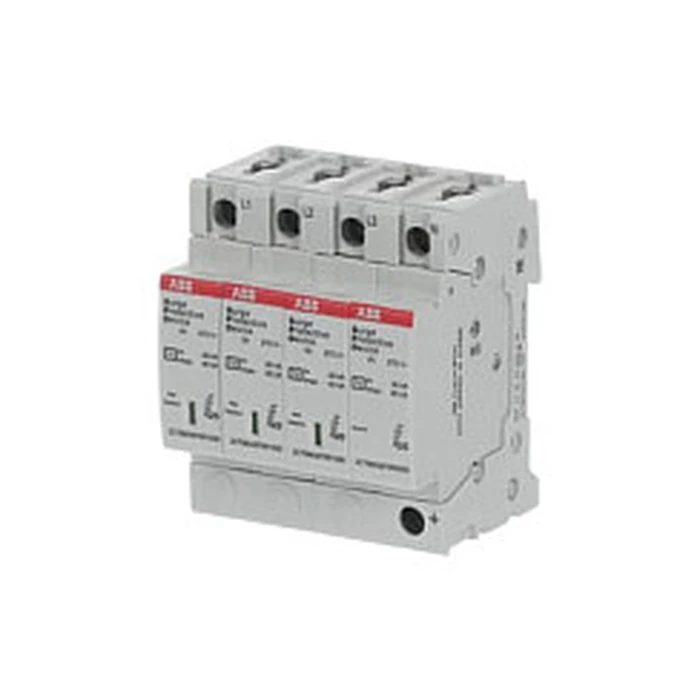

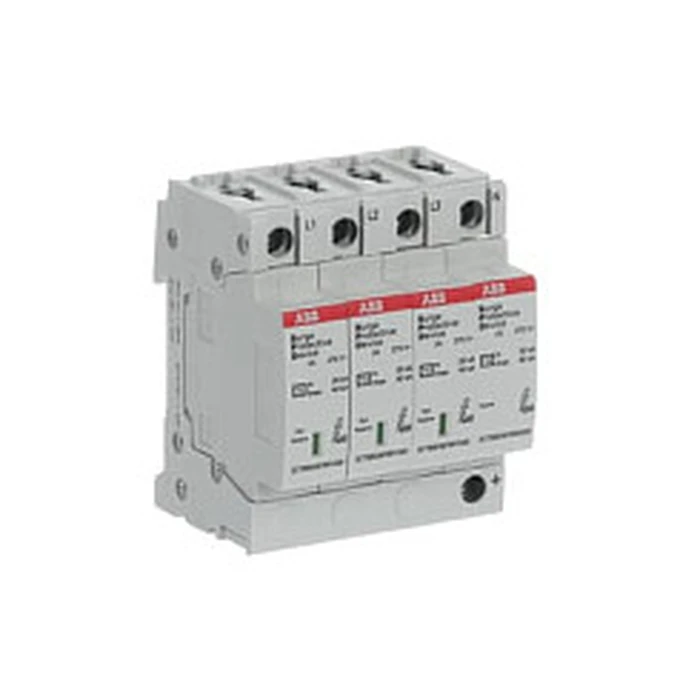

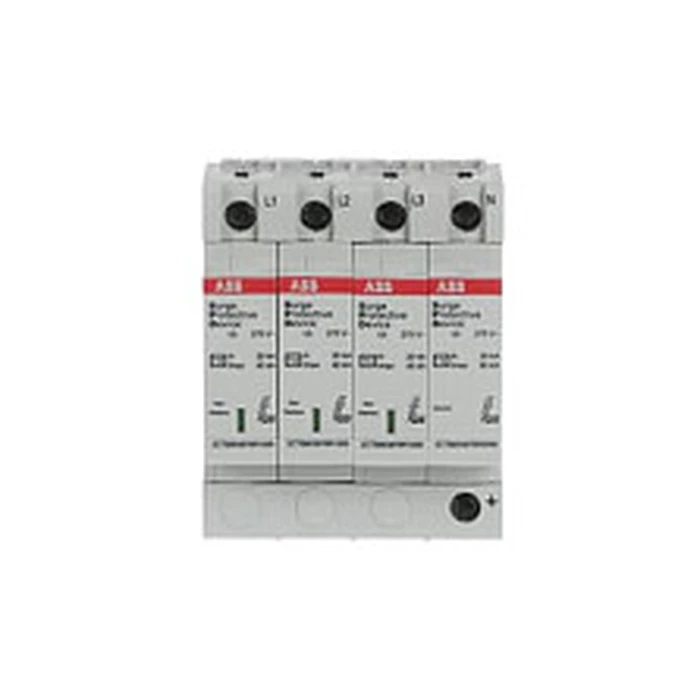

Ενδιάμεσος Διακόπτης ABB OVRT23N40-275PQS SPD Typ2 230/400V
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Related Products
Ενδιάμεσος Διακόπτης ABB JRA/S4.230.2.2 Jal.Akt..4f.Man.B. 2CDG110285R0011
Ενδιάμεσος Διακόπτης ABB BE/S10.20.3.2 Binary input 10-fold contact query manual 2CDG110277R0011
Ενδιάμεσος Διακόπτης ABB SA/S4.16.6.2 4f 16 A C-Last m.Energiefunktion 2CDG110270R0011
Ενδιάμεσος Διακόπτης ABB SA/S4.16.2.2 4fach 16 A REG 2CDG110262R0011
Ενδιάμεσος Διακόπτης ABB SA/S8.16.2.2 8fach 16 A REG 2CDG110263R0011
Ενδιάμεσος Διακόπτης ABB SA/S12.16.2.2 12fach 16 A REG 2CDG110264R0011
Ενδιάμεσος Διακόπτης ABB UD/S4.210.2.1 LED-Dimmer 4 x 210 W/VA. Busch KNX REG-Univer
Ενδιάμεσος Διακόπτης ABB OVR ZP T1-T2 3N 25-255 -255 TT. TN-S Kombi-Ableiter Typ 1+2 3+1P. 25kA. 40mm
Ενδιάμεσος Διακόπτης ABB DG/S 1.64.1.1 DALI Gateway 1fach Basic REG
Ενδιάμεσος Διακόπτης ABB OVRT24L40-275PQS Typ2 230/400V TN-S 4p In20kA
Ενδιάμεσος Διακόπτης ABB Stotz S&J DALI-Gateway Premium, 1fach, REG DG/S1.64.5.1 (2CDG110273R0011)
The ABB OVR T2 3N 40-275 P QS is a cutting-edge Type 2 surge protective device (SPD), specifically engineered to shield low-voltage consumer systems from transient overvoltages. This device adheres to the rigorous IEC 61643-11 standards, ensuring unparalleled reliability and performance.
Ideal for both residential and commercial applications, the ABB OVR T2 3N provides essential protection for your electrical systems. With its robust design, this SPD guarantees safety against voltage spikes, minimizing the risk of damage to your valuable electronic equipment.
Key Features:
- Nominal AC Voltage: 230/400 V
- Number of Protected Poles: 4 (3 phases + neutral)
- Maximum Continuous Operating Voltage: (L-PE) 275 V
- Impulse Current: 10/350 µs: 2 kA
- Short-Circuit Withstand: 100 kA
Moreover, the ABB OVR T2 3N 40-275 P QS employs QuickSafe® technology, which provides advanced safety measures. It is compatible with various low voltage distribution systems, further enhancing its versatility in different installations.
-
Nominal AC Voltage230/400 V
-
Number of Protected Poles4
-
Arrester ClassII
-
Discharge Current (Nominal)20 kA
-
Discharge Current (Maximum)40 kA
-
Total Discharge Current160 kA
-
Impulse Current I(Imp)2 kA
-
Impulse Current I(total)12.5 kA
-
Maximum Continuous Operating Voltage (L-PE)275 V
-
Maximum Continuous Operating Voltage (L-L)440 V
-
Maximum Continuous Operating Voltage (L-N)275 V
-
Maximum Continuous Operating Voltage (N-PE)275 V
-
Voltage Rating DC350 V
-
Voltage Protection Level (L-N)1.25 kV
-
Voltage Protection Level (N-PE)1.4 kV
-
Short Circuit Withstand100 kA
-
Power Loss29 mW
Ratings
Description
The ABB OVR T2 3N 40-275 P QS is a cutting-edge Type 2 surge protective device (SPD), specifically engineered to shield low-voltage consumer systems from transient overvoltages. This device adheres to the rigorous IEC 61643-11 standards, ensuring unparalleled reliability and performance.
Ideal for both residential and commercial applications, the ABB OVR T2 3N provides essential protection for your electrical systems. With its robust design, this SPD guarantees safety against voltage spikes, minimizing the risk of damage to your valuable electronic equipment.
Key Features:
- Nominal AC Voltage: 230/400 V
- Number of Protected Poles: 4 (3 phases + neutral)
- Maximum Continuous Operating Voltage: (L-PE) 275 V
- Impulse Current: 10/350 µs: 2 kA
- Short-Circuit Withstand: 100 kA
Moreover, the ABB OVR T2 3N 40-275 P QS employs QuickSafe® technology, which provides advanced safety measures. It is compatible with various low voltage distribution systems, further enhancing its versatility in different installations.
Technical Specifications
-
Nominal AC Voltage230/400 V
-
Number of Protected Poles4
-
Arrester ClassII
-
Discharge Current (Nominal)20 kA
-
Discharge Current (Maximum)40 kA
-
Total Discharge Current160 kA
-
Impulse Current I(Imp)2 kA
-
Impulse Current I(total)12.5 kA
-
Maximum Continuous Operating Voltage (L-PE)275 V
-
Maximum Continuous Operating Voltage (L-L)440 V
-
Maximum Continuous Operating Voltage (L-N)275 V
-
Maximum Continuous Operating Voltage (N-PE)275 V
-
Voltage Rating DC350 V
-
Voltage Protection Level (L-N)1.25 kV
-
Voltage Protection Level (N-PE)1.4 kV
-
Short Circuit Withstand100 kA
-
Power Loss29 mW
