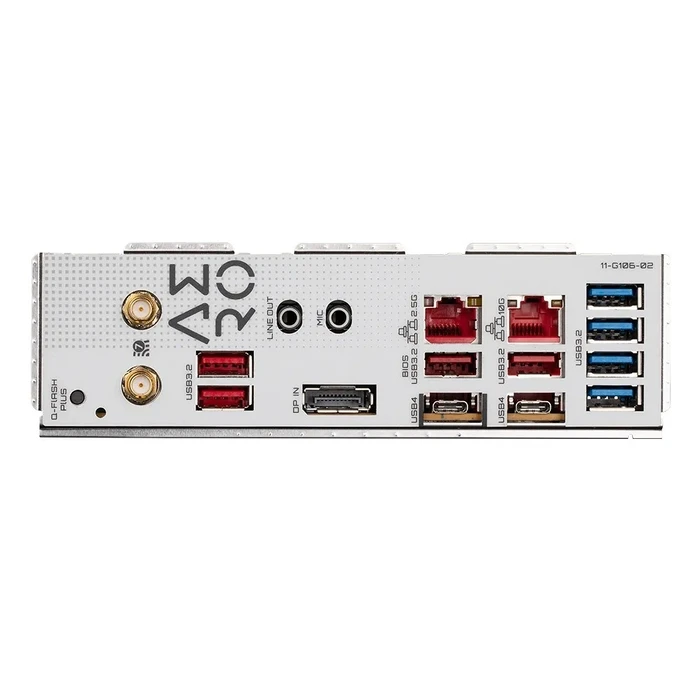

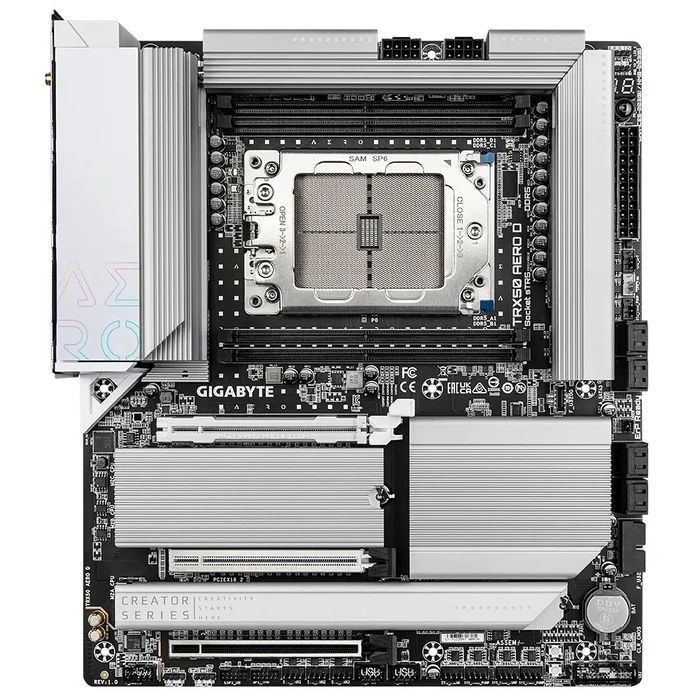

Motherboard Gigabyte TRX50 AERO D (TR5,TR5,E-ATX,DDR5)

Technical Specifications

• BIOS type
  UEFI AMI
• BIOS memory size
  256 Mbit
• ACPI version
  5.0
• Clear CMOS jumper
  Clear CMOS button
• System management BIOS (SMBIOS) version
  2.7
• Desktop Management Interface (DMI) version
  2.7
• processor manufacturer
  AMD
• processor socket
  Socket sTR5
• Compatible processors
  AMD Ryzen™ Threadripper™
• Maximum number of SMP processors
  1
• Maximum internal memory supported by the processor
  1TB
• Supported memory
  DDR5 SDRAM
• Number of memory slots
  4
• RAM type
  DIMM
• Memory channels
  Quadruple channel
• Supported memory speed
  4400,4800,5200,5600,6000,6400,6800,7000,7200,7600,7800MHz
• Supported memory clock speed (max.)
  7800MHz
• Supported memory module capacities
  1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB, 64GB, 128GB, 128MB, 256MB
• RAM memory maximum
  1TB
• Supported storage drives
  SSD
• Supported storage drive interfaces
  M.2, SATA
• Maximum supported number of HDD
  8th
• Number of storage drives supported
  12
• DirectX version
  12.0
• Number of USB 2.0 interfaces
  2
• USB 3.2 Gen 1 (3.1 Gen 1) ports
  1
• USB 3.2 Gen 2x2 ports
  1
• SATA III connectors
  8th
• Total number of SATA ports
  8th
• USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports
  4
• USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports
  4
• USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C ports
  2
• Number of Ethernet LAN ports (RJ-45)
  2
• Number of DisplayPort connections
  1
• Headphone outputs
  2
• Component for
  PC
• Motherboard form factor
  Advanced ATX
• Motherboard chipset family
  AMD
• Motherboard chipset
  AMD TRX50
• Audio chip
  Realtek ALC4080
• Audio channels
  2.0 channels
• Product color
  Black
• PC health monitoring
  Fan, temperature, voltage, water cooling
• Supports Windows operating systems
  Windows 11 x64
• PCI Express x16 slots
  3
• PCI Express x16 slots (Gen 4.x)
  1
• PCI Express x16 slots (Gen 5.x)
  2
• Number of M.2 (M) slots
  4
• Lithium weight per battery
  0.07g
• Battery weight
  3g
• Number of battery cells
  1
• Rechargeable battery/battery technology
  Lithium Manganese Dioxide (LiMnO2)
• Rechargeable battery/battery type
  CR2032
• Country of origin
  China
• Quantity per shipping box
  1 piece(s)
• Packaging width
  345mm
• Packaging depth
  294mm
• Packaging height
  80mm
• Package weight
  3.04kg
