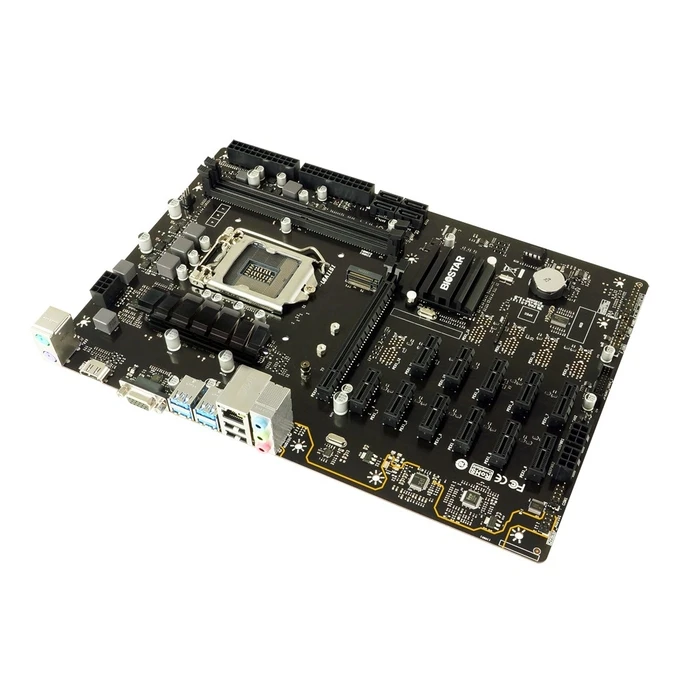

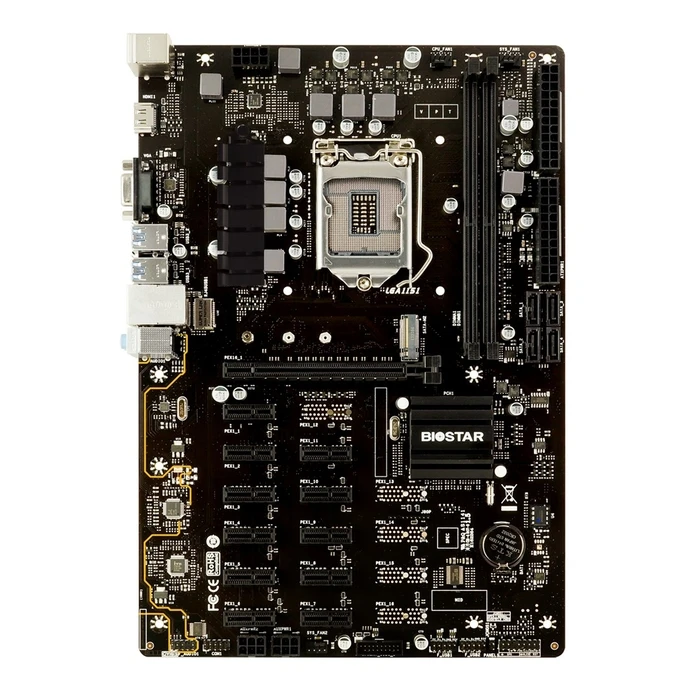

Motherboard Biostar TB360-BTC PRO 2.0 Intel B360 LGA 1151 (Socket H4) ATX

Technical Specifications

• Compatible processor series
  Intel® Core™ i3
• Supported processor sockets
  LGA 1151 (Socket H4)
• Processor manufacturer
  Intel
• Processor socket
  LGA 1151 (Socket H4)
• Maximum resolution
  4096 x 2160 pixels
• HDCP
  Yes
• DirectX version
  12.0
• Parallel processing technology support
  Not supported
• Audio output channels
  7.1 channels
• Windows operating systems supported
  Windows 10 x64
• Motherboard chipset
  Intel® B360
• Audio chip
  Realtek ALC887
• PC health monitoring
  CPU
• Motherboard chipset family
  Intel
• Motherboard form factor
  ATX
• Memory channels
  Dual-channel
• Supported memory module capacities
  16GB
• Supported memory clock speeds
  2666
• Maximum internal memory
  32 GB
• ECC сompatibility
  Non-ECC
• Number of memory slots
  2
• Memory slots type
  DIMM
• Supported memory types
  DDR4-SDRAM
• Width
  295 mm
• Depth
  210 mm
• Wi-Fi
  No
• Ethernet LAN
  Yes
• Ethernet interface type
  Gigabit Ethernet
• Front panel audio connector
  Yes
• EPS power connector (8-pin)
  Yes
• Number of SATA III connectors
  4
• USB 3.2 Gen 1 (3.1 Gen 1) connectors
  1
• Number of chassis fan connectors
  2
• ATX Power connector (24-pin)
  Yes
• Number of COM connectors
  1
• CPU fan connector
  Yes
• Front panel connector
  Yes
• USB 2.0 connectors
  2
• Clear CMOS jumper
  Yes
• Cables included
  SATA
• Drivers included
  Yes
• Supported storage drive interfaces
  M.2, SATA III
• Number of storage drives supported
  5
• Supported storage drive types
  HDD & SSD
• PS/2 ports quantity
  2
• USB connector type
  USB Type-A
• Microphone in
  Yes
• HDMI ports quantity
  1
• USB 2.0 ports quantity
  2
• Ethernet LAN (RJ-45) ports
  1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  4
• VGA (D-Sub) ports quantity
  1
• Headphone outputs
  3
• PCI Express x16 (Gen 3.x) slots
  1
• PCI Express x1 (Gen 3.x) slots
  11
• Number of M.2 (M) slots
  1
