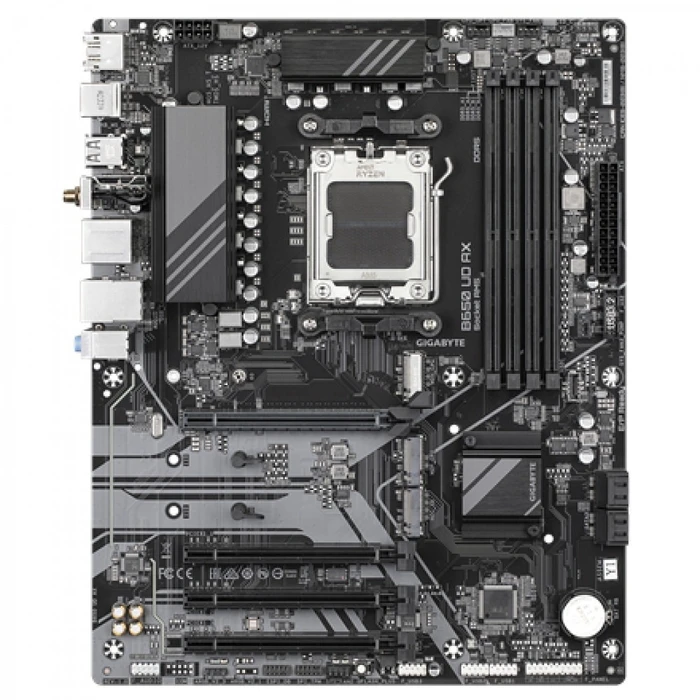

Motherboard Gigabyte B650 UD AX (B650,AM5,ATX,DDR5)

Technical Specifications

• Processor manufacturer
  AMD
• Processor socket
  Socket AM5
• Compatible processor series
  AMD Ryzen™ 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
• Supported processor sockets
  Socket AM5
• Maximum internal memory supported by processor
  192 GB
• Supported memory types
  DDR5-SDRAM
• Number of memory slots
  4
• Maximum internal memory
  192 GB
• Memory slots type
  DIMM
• Memory channels
  Dual-channel
• Non-ECC
  Yes
• Supported memory clock speeds
  4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600 MHz
• Supported memory clock speed (max)
  7600 MHz
• Supported memory module capacities
  1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
• Unbuffered memory
  Yes
• Width
  305 mm
• Depth
  244 mm
• Height
  35 mm
• Wi-Fi
  Yes
• Ethernet LAN
  Yes
• Ethernet interface type
  Gigabit Ethernet
• Top Wi-Fi standard
  Wi-Fi 6 (802.11ax)
• Wi-Fi standards
  802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
• WLAN controller model
  Realtek RTL8821CE
• Bluetooth
  Yes
• Bluetooth version
  5.0
• USB 2.0 connectors
  3
• USB 3.2 Gen 1 (3.1 Gen 1) connectors
  1
• USB 3.2 Gen 2 (3.1 Gen 2) connectors
  1
• Number of SATA III connectors
  4
• Total number of SATA connectors
  4
• Front panel audio connector
  Yes
• Front panel connector
  Yes
• ATX Power connector (24-pin)
  Yes
• CPU fan connector
  Yes
• EPS power connector (8-pin)
  Yes
• TPM connector
  Yes
• Serial port headers
  1
• 12V power connector
  Yes
• RGB LED pin header
  Yes
• USB 2.0 ports quantity
  6
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  1
• Ethernet LAN (RJ-45) ports
  1
• HDMI ports quantity
  1
• HDMI version
  2.1
• DisplayPorts quantity
  1
• DisplayPort version
  1.4
• Headphone outputs
  3
• Microphone in
  Yes
• WiFi-AP antenna jack
  2
• USB connector type
  USB Type-A, USB Type-C
• Supported storage drive interfaces
  M.2, SATA III
• Supported storage drive types
  HDD & SSD
• Number of HDDs supported
  4
• Number of storage drives supported
  7
• RAID support
  Yes
• RAID levels
  0, 1, 10
• Package width
  335 mm
• Package depth
  270 mm
• Package height
  80 mm
• Package weight
  1.56 kg
• Cables included
  SATA
• Batteries included
  Yes
• Bundled software
  Norton Internet Security (OEM version) LAN bandwidth management software
• PCI Express x16 slots
  3
• Number of M.2 (M) slots
  3
• BIOS type
  UEFI AMI
• BIOS memory size
  256 Mbit
• ACPI version
  5.0
• Clear CMOS jumper
  Yes
• Clear CMOS button
  Yes
• Desktop Management Interface (DMI) version
  2.7
• System Management BIOS (SMBIOS) version
  2.7
• Battery weight
  3 g
• Lithium weight per battery
  0.07 g
• Number of battery cells
  1
• Battery technology
  Lithium-Manganese Dioxide (LiMnO2)
• Battery type
  CR2032
• Parallel processing technology support
  Not supported
• Maximum resolution
  4096 x 2160 pixels
• HDCP
  Yes
• DirectX version
  12.0
• Component for
  PC
• Motherboard form factor
  ATX
• Motherboard chipset family
  AMD
• Motherboard chipset
  AMD B650
• Audio output channels
  7.1 channels
• Audio chip
  Realtek ALC897
• Product colour
  Brown
• PC health monitoring
  Fan, Temperature, Voltage, Water cooling
• Cooling type
  Active
• Power source type
  ATX
• Windows operating systems supported
  Windows 10 x64, Windows 11 x64
• Country of origin
  China
• Products per shipping (inner) case
  1 pc(s)
