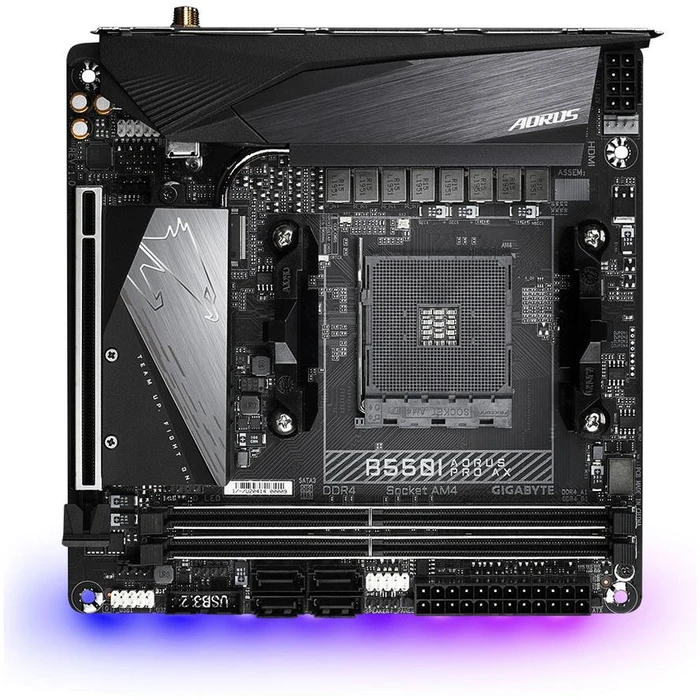

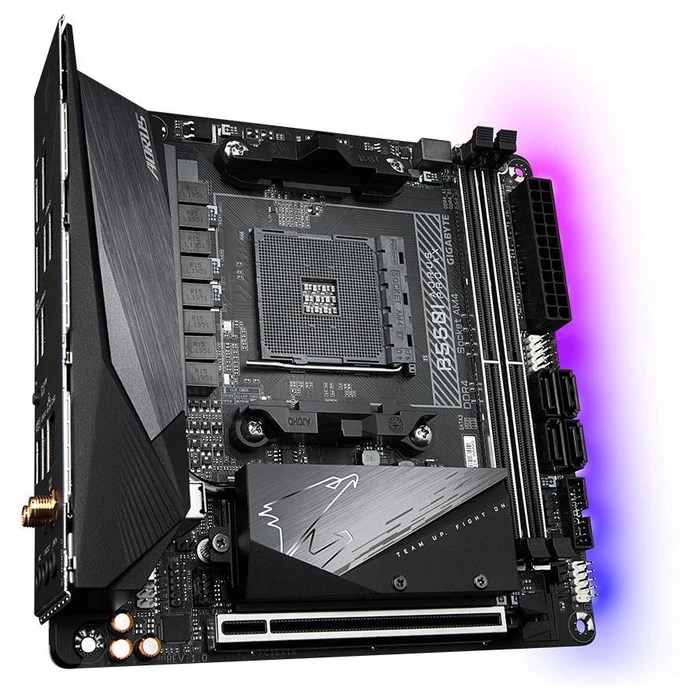

Motherboard Gigabyte B550I AORUS Pro AX

Technical Specifications

• BIOS type
  UEFI AMI
• BIOS memory size
  256 Mbit
• ACPI version
  5.0
• Clear CMOS jumpers
  yes
• Desktop Management Interface (DMI) version
  2.7
• System management BIOS (SMBIOS) version
  2.7
• Processor manufacturer
  AMD
• Processor socket
  Socket AM4
• Compatible processors
  AMD Ryzen 3 3rd Gen, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9
• Maximum number of SMP processors
  1
• Supported RAM
  DDR4 SDRAM
• Number of memory slots
  2
• RAM type
  DIMM
• Memory channels
  Dual-channel
• ECC
  yes
• Without ECC
  yes
• Supported memory speed
  2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,5000 MHz
• RAM memory maximum
  64 GB
• Unbuffered memory
  yes
• RAID level
  0.1.10
• Maximum graphics card memory
  16000 MB
• Maximum resolution
  5120 x 2880 pixels
• HDCP
  yes
• Number of display supported
  3
• RGB-LED pin header
  yes
• Number of USB 2.0 interfaces
  1
• USB 3.2 Gen 1 (3.1 Gen 1) ports
  1
• SATA III connectors
  4th
• Front panel audio connector
  yes
• Front panel connector
  yes
• ATX power plug (24-pin)
  yes
• CPU fan connector
  yes
• Number of chassis fan plugs
  2
• 12 V power connection
  yes
• Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports
  4th
• USB 3.2 Gen 2 (3.1 Gen 2) Number of type A slots
  1
• USB 3.2 Gen 2 (3.1 Gen 2) Number of Type C slots
  1
• Number of Ethernet LAN ports (RJ-45)
  1
• Number of HDMI connections
  2
• HDMI version
  2.1
• Number of DisplayPort connections
  1
• DisplayPorts version
  1.4
• Built-in ethernet connection
  yes
• Ethernet interface type
  2.5 Gigabit Ethernet
• WIRELESS INTERNET ACCESS
  yes
• WLAN standards
  802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
• Bluetooth
  yes
• Bluetooth version
  5.0
• Supports Windows operating systems
  Windows 10 x64
• Component for
  Nettop
• Motherboard form factor
  mini ITX
• Motherboard chipset family
  AMD
• Motherboard chipset
  AMD B550
• Audio chip
  Realtek ALC1220-VB
• Audio channels
  7.1 channels
• PC health monitoring
  Fan, temperature, voltage
• Number of M.2 (M) slots
  2
• PCI Express x16 slots (Gen 4.x)
  1
• Supplied software
  Norton Internet Security (OEM) XSplit Gamecaster + Broadcaster Realtek 8125 Gaming LAN Bandwidth Control Utility
• width
  170 mm
• depth
  170 mm
