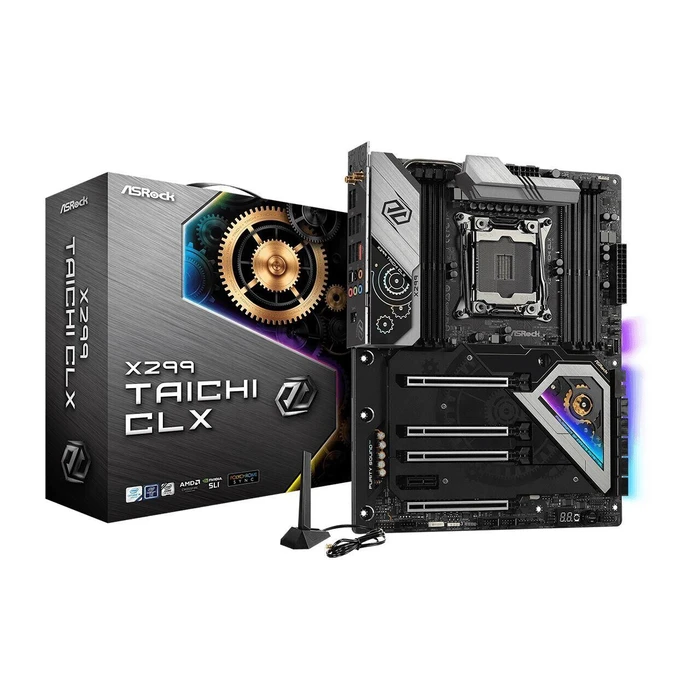

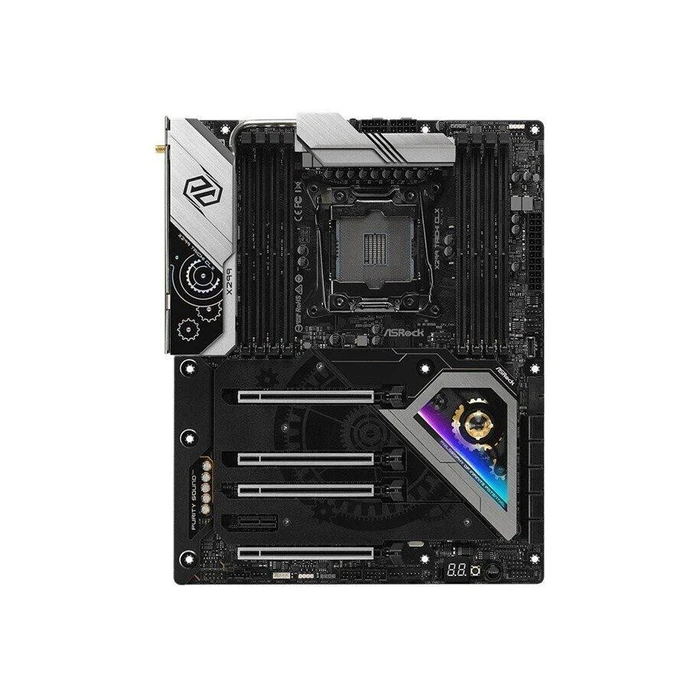

Motherboard 2066 ASRock X299 Taichi CLX

Technical Specifications

• Product Type
  Motherboard - ATX
• Chipset Type
  Intel X299
• Processor Socket
  LGA2066 Socket
• Max Processors Qty
  1
• Compatible Processors
  Core X
• Max Size
  256 GB
• Technology
  DDR4
• Bus Clock
  2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3200 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 4000 MHz (O.C.), 4200 MHz (O.C.)
• Supported RAM Integrity Check
  Non-ECC
• Registered or Buffered
  Unbuffered
• Features
  Quad channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0
• Type
  HD Audio (8-channel)
• Audio Codec
  Realtek ALC1220
• Compliant Standards
  DTS Connect, High Definition Audio, Premium Blu-ray audio support, Purity Sound 4
• Network Controller
  Intel I219V / Dragon RTL8125AG
• Network Interfaces
  Bluetooth, Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ax
• Expansion Slots
  1 x CPU ¦ 8 x DIMM 288-pin ¦ 4 x PCIe 3.0 x16 (44-lane CPU (x16/x8/x16/x0, x8/x8/x16/x8 modes), 28-lane CPU (x16/x0/x8/x0, x8/x0/x8/x8 modes), 16-lane CPU (x16/x0/x0/x0, x8/x0/x4/x0 modes)) ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket
• Storage Interfaces
  SATA-600 -connectors: 8 x 7pin Serial ATA - 8 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices ¦ PCIe 3.0 -connectors: 2 x Ultra M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2
• RAID Features
  Intel Smart Response Technology
• Interfaces
  USB-C Gen2x2 ¦ 1 x TOSLINK ¦ 2 x USB 2.0 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (front surround) - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet)
• Internal Interfaces
  2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 1 x USB-C Gen2 - header
• Power Connectors
  24-pin main power connector, 2 x 8-pin ATX12V connectors
• BIOS Type
  AMI
• BIOS Features
  Multilingual BIOS, UEFI BIOS, Dual BIOS, Secure Backup UEFI Technology, SMBIOS 3.0 support, ACPI 6.1 support
• Manual Settings
  Processor core voltage, memory voltage, chipset voltage
• Hardware Monitoring
  CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage
• Sleep / Wake Up
  Wake on LAN (WOL)
• Hardware Features
  ASRock Instant Flash, NVIDIA 3-way SLI Technology Support, Intel Extreme Memory Profile (XMP) support, AMD 3-way CrossFireX technology support, ASRock Internet Flash, Digi Power Design, ESD Protection, Gold Plated Audio Hardware, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), CPU/Chassis Quiet Fan, CPU/Chassis Fan Multi-Speed Control, 8 Layer PCB, Clear CMOS Button, Direct Drive Technology, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Dr.MOS MOSFET, XXL Aluminum Alloy Heatsink, ASRock Live Update, ASRock EZ Mode, Intel Optane Memory Ready, ASRock Ultra M.2, Nichicon 12K Black Caps, Matte Black PCB, ASRock Steel Slots, TI NE5532 Premium Headset Amplifier, Premium 60A Power Choke, 13 Phase Power Design, 120dB SNR DAC with Differential Amplifier, Pure Power-In, PCB Isolate Shielding, ASRock Ultra USB Power, 2oz Copper PCB, Intel VROC support, ASRock Hyper BCLK Engine III, Intel Turbo Boost Max Technology 3.0, ASRock Full Coverage M.2 Heatsink
• Included Accessories
  I/O back plate, ASRock WiFi 2.4/5GHz Antenna, 3 x M.2 screws, ASRock SLI_HB_Bridge_2S Card, screwdriver, 3 x standoff for M.2 socket
• Cables Included
  4 x Serial ATA cable
• Software Included
  Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar
• Compliant Standards
  FCC, EuP Ready, ErP Ready
• Width
  30.5 cm
• Depth
  24.4 cm
