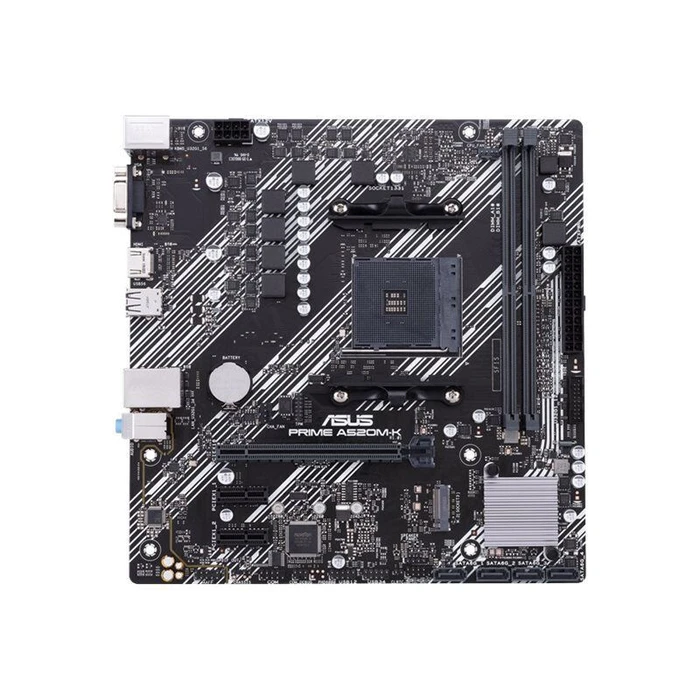

Motherboard ASUS PRIME A520M-K - Motherboard - micro ATX - Socket AM4 - AMD A520

Description

Technical Specifications

• Max Supported Qty
  1
• Form Factor
  Micro ATX
• Compatible Processors
  Ryzen
• Chipset Type
  AMD A520
• Supported RAM Technology
  DDR4 SDRAM
• Supported RAM Integrity Check
  Non-ECC, ECC
• Supported RAM Speed
  3200 MHz, 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.)
• Processor Socket
  Socket AM4
• Power Connectors
  24-pin main power connector, 8-pin ATX12V connector
• Supported RAM (Registered or Buffered)
  Unbuffered
• Internal Interfaces
  1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 1 x SPDIF out - header, 1 x speaker - header, 2 x USB 3.2 Gen 1 - header
• Features
  Dual channel memory architecture
• Max Supported Size
  64 GB
• Type
  Graphics adapter (CPU required)
• Type
  Sound card
• Compliant Standards
  High Definition Audio
• Audio Codec
  Realtek ALC887
• Audio
  High Definition Audio (8-channel)
• Data Link Protocol
  Ethernet, Fast Ethernet, Gigabit Ethernet
• Network Controller
  Realtek RTL8111H
• Network
  Gigabit Ethernet
• Expansion Slots
  1 x CPU, 1 x PCIe 3.0 x16, 2 x DIMM 288-pin, 2 x PCIe 3.0 x1
• Storage Interfaces
  SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 3.0 -connectors: 1 x M.2
• Storage
  Serial ATA-600 (RAID), M.2 socket
• FireWire
  USB 3.2 Gen 1
• Storage Ports
  4 x SATA-600 (RAID), 1 x M.2
• FireWire Ports Configuration (Active)
  4 x USB 3.2 Gen 1 + 2 x USB 2.0
• FireWire Ports Configuration (Headers)
  2 x USB 3.2 Gen 1 + 4 x USB 2.0
• Software Included
  Norton AntiVirus (60 days trial), ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, Drivers & utilities, ASUS EZ Flash 3, DAEMON Tools, WinRAR
• Width
  22.6 cm
• Depth
  22.1 cm
