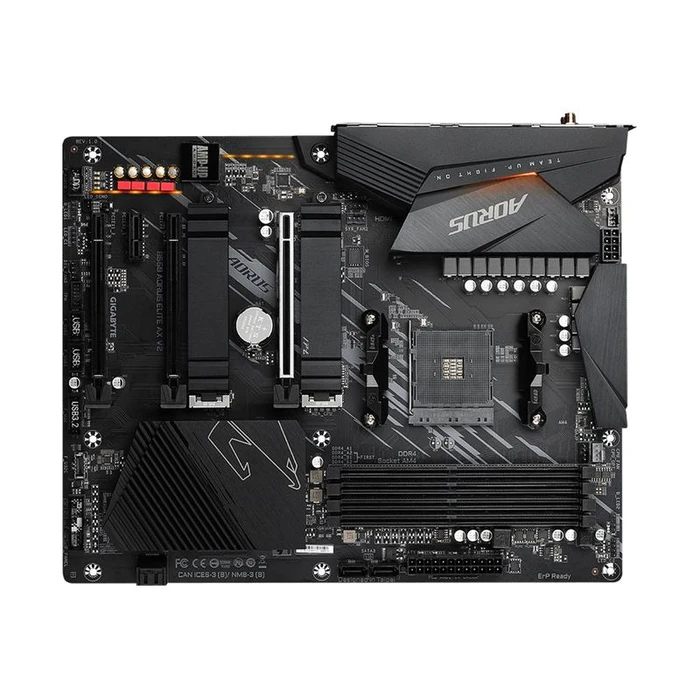

Motherboard Gigabyte B550 AORUS ELITE AX - ATX - Socket AM4 - AMD B550

Technical Specifications

• Installed Qty
  no
• Max Supported Qty
  1
• Form Factor
  ATX
• Compatible Processors
  Ryzen
• Chipset Type
  AMD B550
• Supported RAM Technology
  DDR4 SDRAM
• Supported RAM Integrity Check
  Non-ECC, ECC (operate in non-ECC mode)
• Supported RAM Speed
  3200 MHz, 4733 MHz (O.C.), 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.)
• Processor Socket
  Socket AM4
• Power Connectors
  24-pin main power connector, 8-pin ATX12V connector
• Supported RAM (Registered or Buffered)
  Unbuffered
• Internal Interfaces
  1 x audio - header, 4 x USB 2.0 - header, 1 x USB-C Gen 1 - header, 2 x USB 3.2 Gen 1 - header
• Max Supported Size
  128 GB
• Features
  Dual channel memory architecture, Supported ECC modules operate in non-ECC mode
• Max Supported Size
  128 GB
• Type
  Graphics adapter (CPU required)
• Type
  Sound card
• Compliant Standards
  High Definition Audio
• Audio Codec
  Realtek ALC1220
• Audio
  High Definition Audio (8-channel)
• Data Link Protocol
  Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
• Network
  2.5 Gigabit Ethernet
• Expansion Slots
  1 x CPU, 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with New Generation Ryzen with Radeon Graphics CPU)), 4 x DIMM 288-pin, 1 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x2 mode), 1 x PCIe 3.0 x16 (x1 mode)
• Storage Interfaces
  SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10, PCIe 3.0 -connectors: 1 x M.2, SATA-600 / PCIe 4.0 -connectors: 1 x M.2
• Storage
  Serial ATA-600 (RAID), M.2 socket
• FireWire
  USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen1
• Storage Ports
  4 x SATA-600 (RAID), 2 x M.2
• FireWire Ports Configuration (Active)
  2 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0
• FireWire Ports Configuration (Headers)
  1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
• Software Included
  EasyTune, Xpress Install, GIGABYTE App Center, Norton Internet Security, GIGABYTE Fast Boot, @BIOS, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control
• Width
  30.5 cm
• Depth
  24.4 cm
