Κεραία WiFi Teltonika Gnss Sma Adhesive/Pr1Ksg30

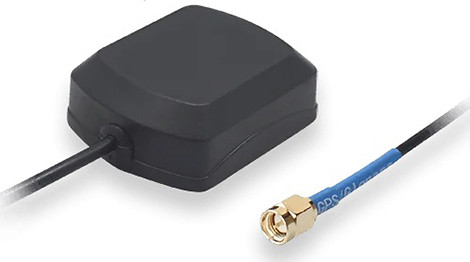

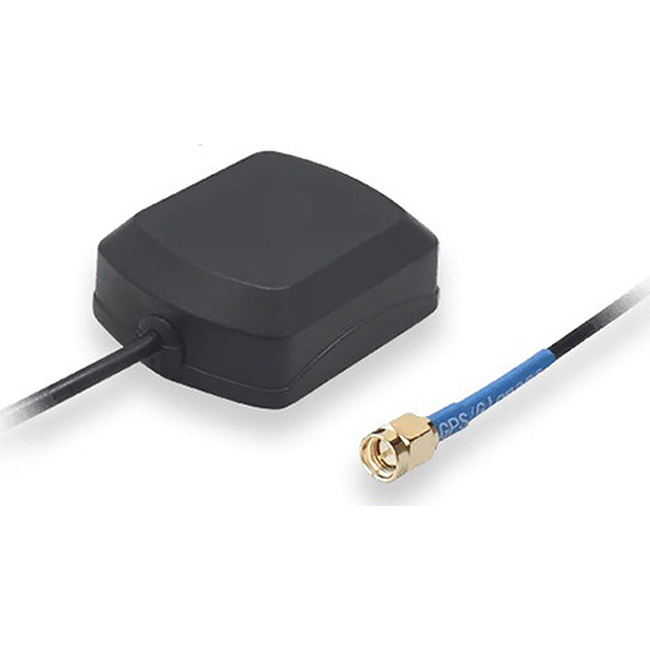

The Teltonika GNSS Adhesive SMA Antenna PR1KSG30 is a high-performance, compact GNSS antenna designed for precise navigation and tracking applications. It supports various satellite navigation systems, making it highly versatile.The adhesive mount feature offers easy installation on different...

Κεραία WiFi Teltonika Gnss Sma Adhesive/Pr1Ksg30

Name: Κεραία WiFi Teltonika Gnss Sma Adhesive/Pr1Ksg30
Brand: Teltonika
SKU: 1171555541
Price: 12.03 EUR
Availability: OutOfStock

Product Code: 1171555541

Available in 1 - 3 days

12,03 €

Quantity:

Add

Need Help? Fill in your details so we can call you immediately!

The Teltonika GNSS Adhesive SMA Antenna PR1KSG30 is a high-performance, compact GNSS antenna designed for precise navigation and tracking applications. It supports various satellite navigation systems, making it highly versatile.

The adhesive mount feature offers easy installation on different surfaces, ensuring a secure and stable connection regardless of the environment. This makes the PR1KSG30 an excellent choice for users needing reliable positioning.

Main Features:

Supports GPS, GLONASS, Galileo, and Beidou systems
Compact and sturdy design
Optimal for IoT devices and navigation needs

With specifications that guarantee high performance:

Gain: 2 dBi
Supply Voltage: 2.2 - 5 VDC
Operating Temperature: -40 to +85°C

This antenna is optimized for various applications, ensuring precise navigation capabilities in any scenario.

Frequency

1575.42-1602 MHz
Polarization

Right-Hand Circular Polarization (RHCP)
Gain

2 dBi
V.S.W.R (Voltage Standing Wave Ratio)

Less than 1.5
Impedance

50 Ω
Max Axial Ratio

3 dB
LNA Gain

28±2 dB
LNA Noise Figure

Less than 1.5 dB
Supply Voltage

2.2 - 5 VDC
Current Consumption

Less than 15 mA
LNA V.S.W.R

Less than 2.0
Cable

RG174, 3000 mm
Connector

SMA Male
Mounting Method

Adhesive
Operating Temperature

-40 to +85°C
Operating Relative Humidity

Up to 95%
RoHS Compliant

Yes

Ratings

How do you rate this product?

0/5

Description

Main Features:

Supports GPS, GLONASS, Galileo, and Beidou systems
Compact and sturdy design
Optimal for IoT devices and navigation needs

With specifications that guarantee high performance:

Gain: 2 dBi
Supply Voltage: 2.2 - 5 VDC
Operating Temperature: -40 to +85°C

This antenna is optimized for various applications, ensuring precise navigation capabilities in any scenario.

Technical Specifications

Frequency

1575.42-1602 MHz
Polarization

Right-Hand Circular Polarization (RHCP)
Gain

2 dBi
V.S.W.R (Voltage Standing Wave Ratio)

Less than 1.5
Impedance

50 Ω
Max Axial Ratio

3 dB
LNA Gain

28±2 dB
LNA Noise Figure

Less than 1.5 dB
Supply Voltage

2.2 - 5 VDC
Current Consumption

Less than 15 mA
LNA V.S.W.R

Less than 2.0
Cable

RG174, 3000 mm
Connector

SMA Male
Mounting Method

Adhesive
Operating Temperature

-40 to +85°C
Operating Relative Humidity

Up to 95%
RoHS Compliant

Yes
