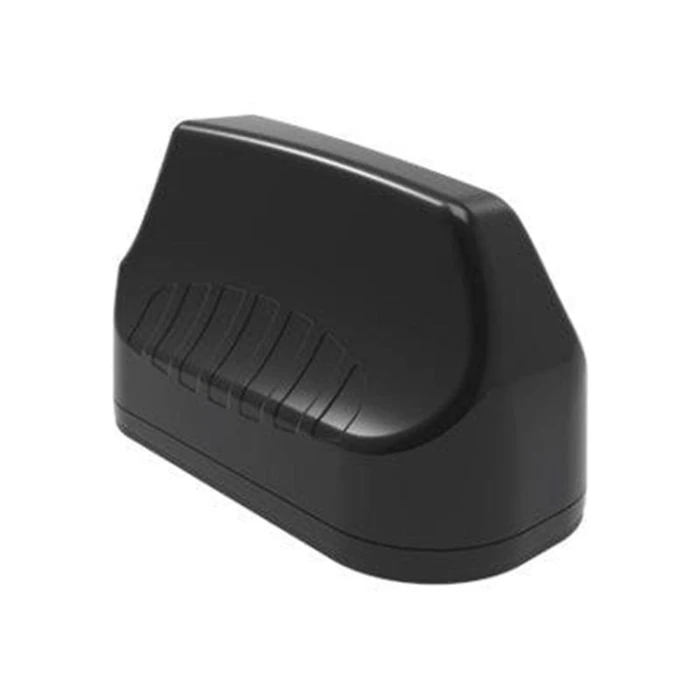

The Poynting Antennas 5G/LTE KFZ/Marine A-MIMO-0003-V2-17-B is a high-performance, multi-frequency antenna specially designed for various applications, including transportation, marine, and IoT systems. This antenna stands out due to its superior signal strength and extensive coverage across numerous radio technologies.
Key Features:
- 7-in-1 Antenna System: This system integrates four cellular antennas, two Wi-Fi antennas, and one GPS/GLONASS antenna, all within a compact housing. This optimizes space and ensures comprehensive frequency coverage in a single installation.
- Wide Frequency Support: Operating across ultra-wideband frequencies from 410 MHz to 3800 MHz, it includes critical bands like 450 MHz and 3.5 GHz CBRS, making it suitable for both current and emerging technologies like 4G LTE and 5G.
In summary, the A-MIMO-0003-V2-17-B is designed for excellent performance, boasting:
- Cellular Performance: Peak gain of 6.2 dBi in the 1710-2700 MHz band.
- Wi-Fi Performance: Dual-band operation with 7 dBi peak gain.
- GPS/GLONASS Precision: Active system with 21 dBi peak gain.
This robust and versatile antenna is tailored to meet the challenges of modern IoT, transportation, and marine applications, combining high performance with ruggedness and adaptability.
-
Cellular_Peak_Gain_1710_2700_MHz6.2 dBi
-
Cellular_Peak_Gain_410_470_MHz1.5 dBi
-
Cellular_Peak_Gain_3400_3800_MHz4.8 dBi
-
Wi-Fi_Peak_Gain7 dBi
-
GPS_GLONASS_Peak_Gain21 dBi
-
Input_Impedance_Cellular50 Ohms
-
Input_Impedance_GPS_GLONASS50 Ohms
-
Input_Impedance_Wi-Fi50 Ohms
-
Operating_Temperature_Range-40°C to +80°C
-
Storage_Temperature_Range-40°C to +80°C
-
Water_Ingress_ProtectionIP68
-
Wind_Survival<220 km/h
-
DC_Voltage_Range_GPS_GLONASS2.7 V to 3.3 V
-
DC_Current_GPS_GLONASS5 to 15 mA
Ratings
Description
The Poynting Antennas 5G/LTE KFZ/Marine A-MIMO-0003-V2-17-B is a high-performance, multi-frequency antenna specially designed for various applications, including transportation, marine, and IoT systems. This antenna stands out due to its superior signal strength and extensive coverage across numerous radio technologies.
Key Features:
- 7-in-1 Antenna System: This system integrates four cellular antennas, two Wi-Fi antennas, and one GPS/GLONASS antenna, all within a compact housing. This optimizes space and ensures comprehensive frequency coverage in a single installation.
- Wide Frequency Support: Operating across ultra-wideband frequencies from 410 MHz to 3800 MHz, it includes critical bands like 450 MHz and 3.5 GHz CBRS, making it suitable for both current and emerging technologies like 4G LTE and 5G.
In summary, the A-MIMO-0003-V2-17-B is designed for excellent performance, boasting:
- Cellular Performance: Peak gain of 6.2 dBi in the 1710-2700 MHz band.
- Wi-Fi Performance: Dual-band operation with 7 dBi peak gain.
- GPS/GLONASS Precision: Active system with 21 dBi peak gain.
This robust and versatile antenna is tailored to meet the challenges of modern IoT, transportation, and marine applications, combining high performance with ruggedness and adaptability.
Technical Specifications
-
Cellular_Peak_Gain_1710_2700_MHz6.2 dBi
-
Cellular_Peak_Gain_410_470_MHz1.5 dBi
-
Cellular_Peak_Gain_3400_3800_MHz4.8 dBi
-
Wi-Fi_Peak_Gain7 dBi
-
GPS_GLONASS_Peak_Gain21 dBi
-
Input_Impedance_Cellular50 Ohms
-
Input_Impedance_GPS_GLONASS50 Ohms
-
Input_Impedance_Wi-Fi50 Ohms
-
Operating_Temperature_Range-40°C to +80°C
-
Storage_Temperature_Range-40°C to +80°C
-
Water_Ingress_ProtectionIP68
-
Wind_Survival<220 km/h
-
DC_Voltage_Range_GPS_GLONASS2.7 V to 3.3 V
-
DC_Current_GPS_GLONASS5 to 15 mA
