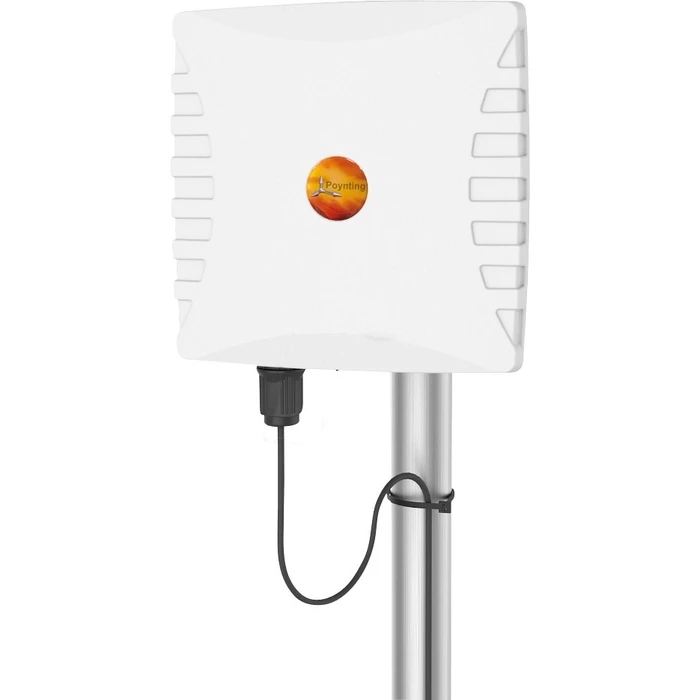

Κεραία Δικτύου Poynting Wi-Fi Mast/Wand A-WLAN-060-V1 White SMA (F) 2,4 GHz/5GHz 18dBi Dual-Band-Directional
The Poynting Antennas Wi-Fi Mast/Wand A-WLAN-060-V1 is a high-performance, dual-band Wi-Fi antenna designed for a wide range of industrial and commercial applications. This linear, high-gain antenna operates in both the 2.4 GHz and 5 GHz frequency bands, ensuring outstanding performance.
Key Features:
- Dual-Band Operation: Optimal utilization of 2.4 GHz and 5 GHz frequencies.
- High Gain: Peak gain of 18 dBi at 5 GHz and 13 dBi at 2.4 GHz.
- CBRS Band Coverage: Supports the future 5G technologies with peak gain of 15 dBi.
- Robust Enclosure: IP 65 rated, vandal and water-resistant design for harsh environments.
- Lightweight and Easy Installation: Simple to set up, making it versatile for different applications.
- Connector Type: Factory-mounted SMA (F) connector for reduced loss.
With its sturdy construction and high gain, this antenna guarantees reliable Wi-Fi connections, adapting seamlessly to challenging environments. Its compliance with IEEE 802.11 standards ensures compatibility with a broad range of Wi-Fi technologies, further enhancing its appeal for various users.
-
Frequency Bands2.4 GHz, 5 GHz, CBRS Band
-
2.4 GHz Range2400 2500 MHz
-
5 GHz Range5000 6000 MHz
-
CBRS Band Range3300 3800 MHz
-
2.4 GHz Gain13 dBi
-
5 GHz Gain18 dBi
-
CBRS Band Gain15 dBi
-
PolarizationLinear Vertical
-
Impedance50 Ohm
-
VSWRLess than 2.5:1
-
Temperature Range-40°C to +80°C
-
HumidityUp to 98%
-
Wind Velocity Rating?160 km/h
-
Ingress ProtectionIP 65
-
Salt Spray ResistanceMIL-STD 810G/ASTM B117
-
Impact ResistanceIK 08
-
Flammability RatingUL 94-HB
-
Product Dimensions240 mm x 240 mm x 60 mm
-
Packaged Dimensions260 mm x 280 mm x 80 mm
-
Product Weight0.76 kg
-
Packaged Weight1.334 kg
Ratings
Description
The Poynting Antennas Wi-Fi Mast/Wand A-WLAN-060-V1 is a high-performance, dual-band Wi-Fi antenna designed for a wide range of industrial and commercial applications. This linear, high-gain antenna operates in both the 2.4 GHz and 5 GHz frequency bands, ensuring outstanding performance.
Key Features:
- Dual-Band Operation: Optimal utilization of 2.4 GHz and 5 GHz frequencies.
- High Gain: Peak gain of 18 dBi at 5 GHz and 13 dBi at 2.4 GHz.
- CBRS Band Coverage: Supports the future 5G technologies with peak gain of 15 dBi.
- Robust Enclosure: IP 65 rated, vandal and water-resistant design for harsh environments.
- Lightweight and Easy Installation: Simple to set up, making it versatile for different applications.
- Connector Type: Factory-mounted SMA (F) connector for reduced loss.
With its sturdy construction and high gain, this antenna guarantees reliable Wi-Fi connections, adapting seamlessly to challenging environments. Its compliance with IEEE 802.11 standards ensures compatibility with a broad range of Wi-Fi technologies, further enhancing its appeal for various users.
Technical Specifications
-
Frequency Bands2.4 GHz, 5 GHz, CBRS Band
-
2.4 GHz Range2400 2500 MHz
-
5 GHz Range5000 6000 MHz
-
CBRS Band Range3300 3800 MHz
-
2.4 GHz Gain13 dBi
-
5 GHz Gain18 dBi
-
CBRS Band Gain15 dBi
-
PolarizationLinear Vertical
-
Impedance50 Ohm
-
VSWRLess than 2.5:1
-
Temperature Range-40°C to +80°C
-
HumidityUp to 98%
-
Wind Velocity Rating?160 km/h
-
Ingress ProtectionIP 65
-
Salt Spray ResistanceMIL-STD 810G/ASTM B117
-
Impact ResistanceIK 08
-
Flammability RatingUL 94-HB
-
Product Dimensions240 mm x 240 mm x 60 mm
-
Packaged Dimensions260 mm x 280 mm x 80 mm
-
Product Weight0.76 kg
-
Packaged Weight1.334 kg
